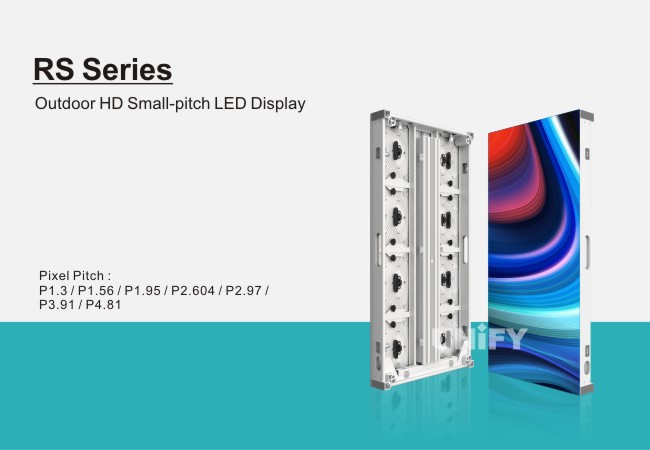

Rental LED Panel-RS Series
- Cabinet weight:7.5kg
- Refresh rate: 3840HZ
- hard connection box
- Pixel pitch: P2.604 P2.97 P3.91 P4.8mm
- Material: strong die-casting-aluminum
- Advantage: Front and rear maintenance dual channels
- Application: stage show/events/weeding/party/concert

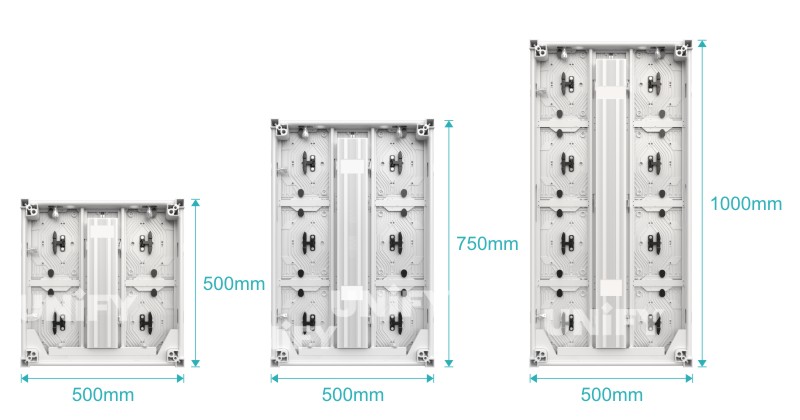

Alternative Panel Size
Supports special-shaped splicing and customized proportions, greatly improving the construction efficiency and project adaptability.
250*250mm LED Module
Pixel Pitch
Rental LED Panel Module
The RS series rental LED display module adopts a 250×250mm standard size design and is equipped with a high-strength die-cast aluminum structure, which is light and sturdy.
The module supports a variety of dot pitch specifications, including P1.95, P2.604, P2.976, P3.91, and P4.81, which can meet different needs from near to far.
The product adopts a front maintenance structure and hard connection design, which is easy to install and quick to disassemble, improving the efficiency of on-site display and maintenance.
LED Cabinet Show

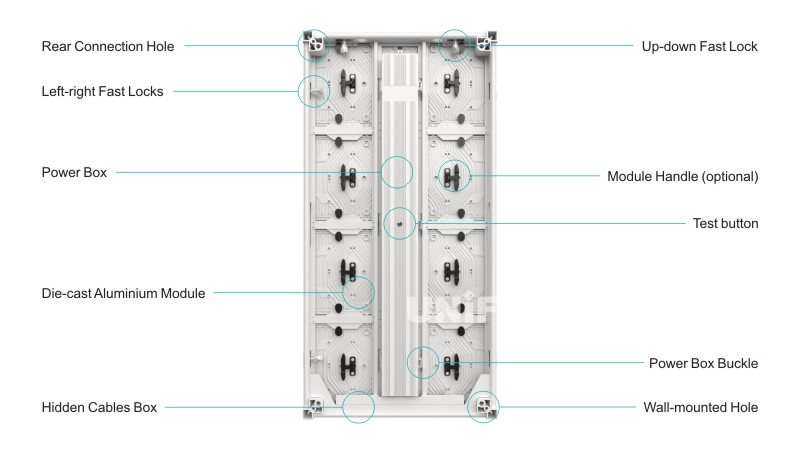

Structure Drawing

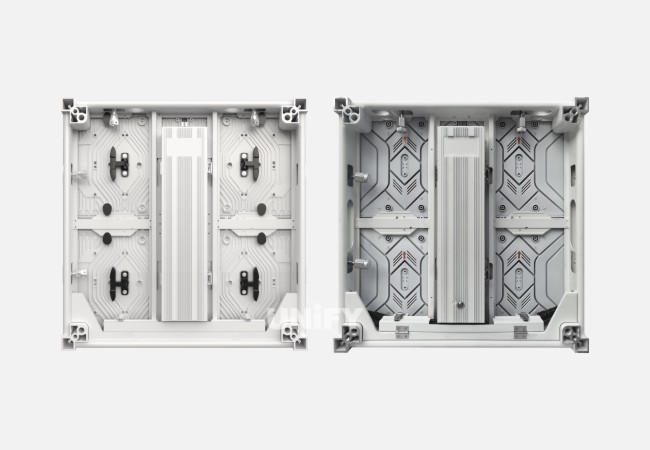

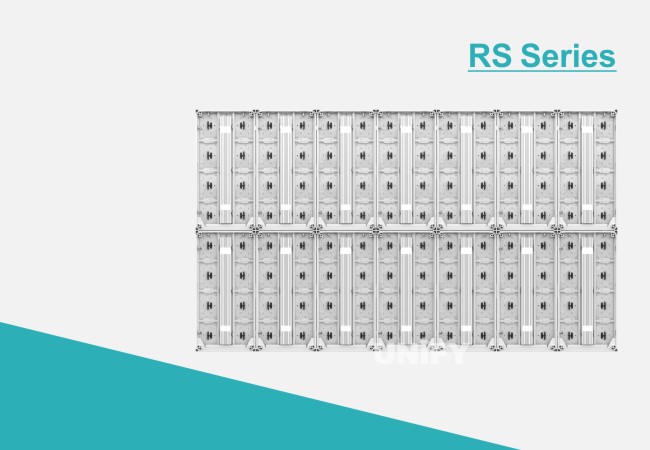

Rental LED Panel Cabinet
The standard cabinet is as light as 16kg and only 85mm thick. The aluminum profile cabinet has the characteristics of light weight, corrosion resistance, high precision, good flatness, not easy to deform, and good heat dissipation.
It is stronger and more durable than the sheet metal cabinet. The aluminum profile structure has been finely processed to improve the screen splicing accuracy and better screen consistency.
Rental LED Display Structure

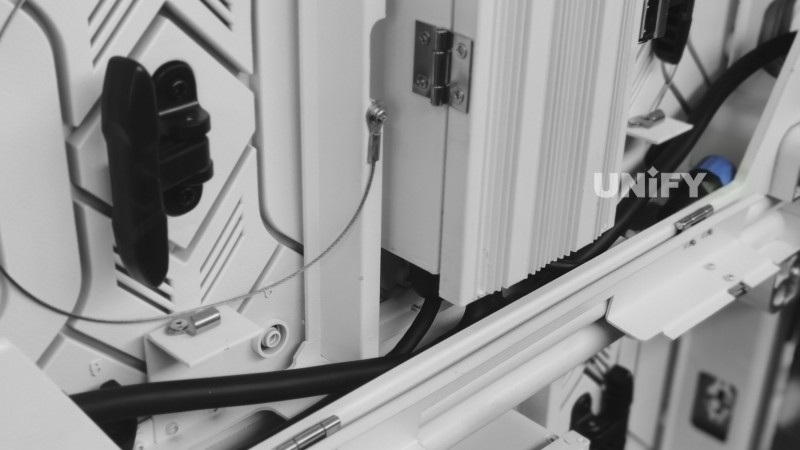

Built-in power boxes and hidden wiring ensure neat wiring, improve stage aesthetics and electrical safety.
The module is equipped with a handle for easy maintenance. In addition, the wall-mounting holes and connection holes on the top and bottom support hoisting, wall-mounting and truss installation, suitable for professional stage video walls.

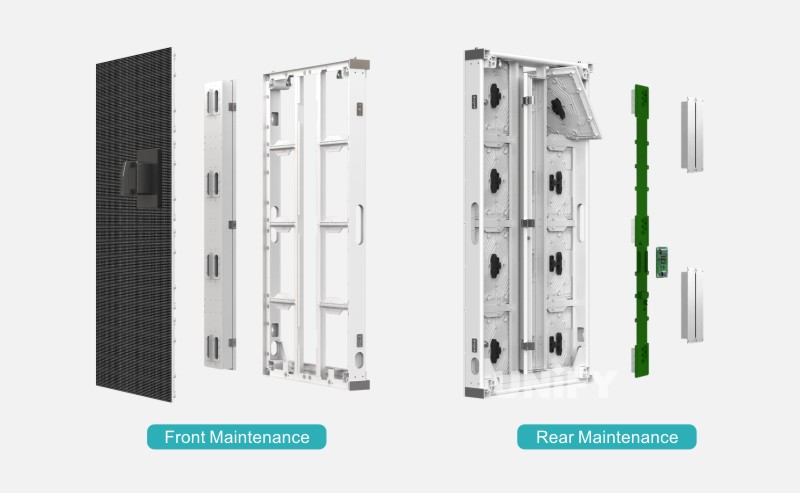

Front and rear maintenance
Supports front and rear bidirectional maintenance, and quick replacement of parts without disassembling the entire screen, which improves maintenance efficiency and saves manpower.

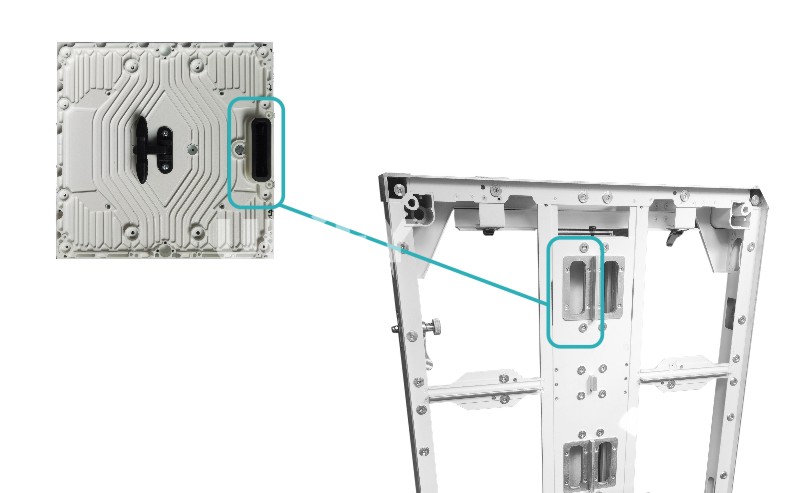

Hard Connection Rental LED Panel
The wireless connection between modules, combined with the hidden wiring design, makes the appearance of the entire screen more neat and improves the overall beauty of the stage.
Fireproof and flame retardant
Stage LED Wall Customization
Novastar, and Linsn control systems, nationstar and kinglight lamp beads, meanwell and G-power power supplies, MBI and Chipone IC cards. If you have specific needs, please feel free to ask.

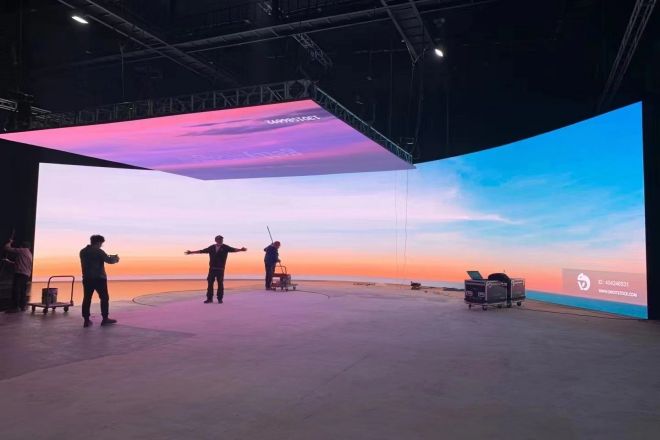

Rental LED Panel 3D
Flexibly adapt to a variety of creative structures to create outdoor close-range naked-eye 3D display effects.
Image Gallery

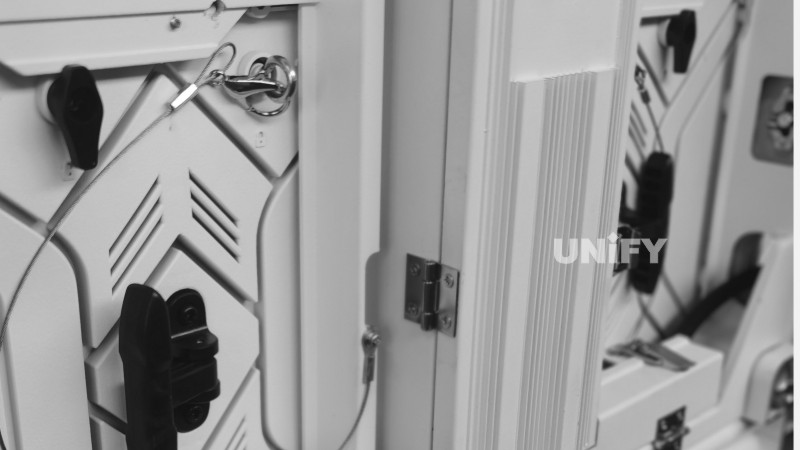

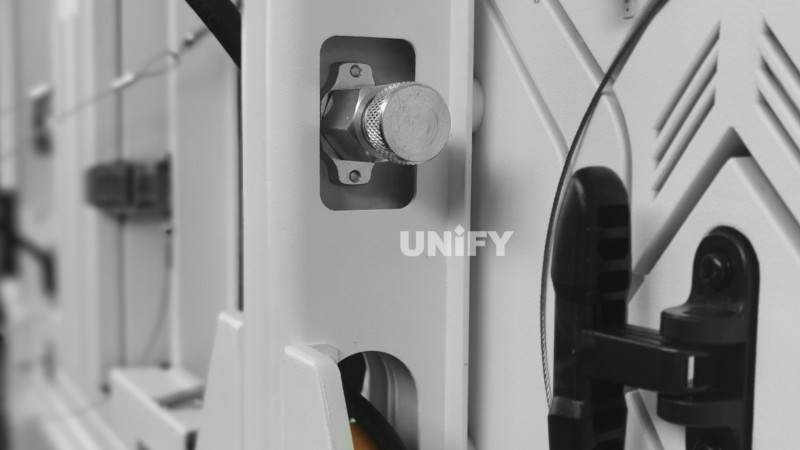

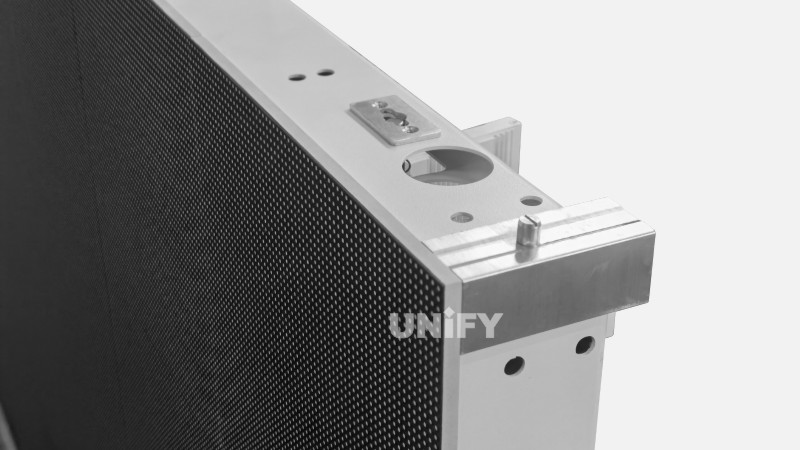

Rental LED Panel Cabinet Details

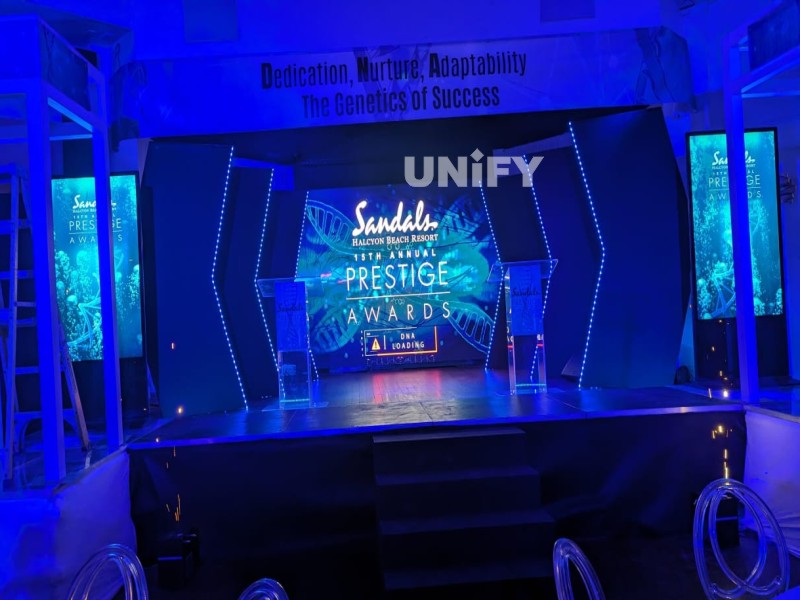

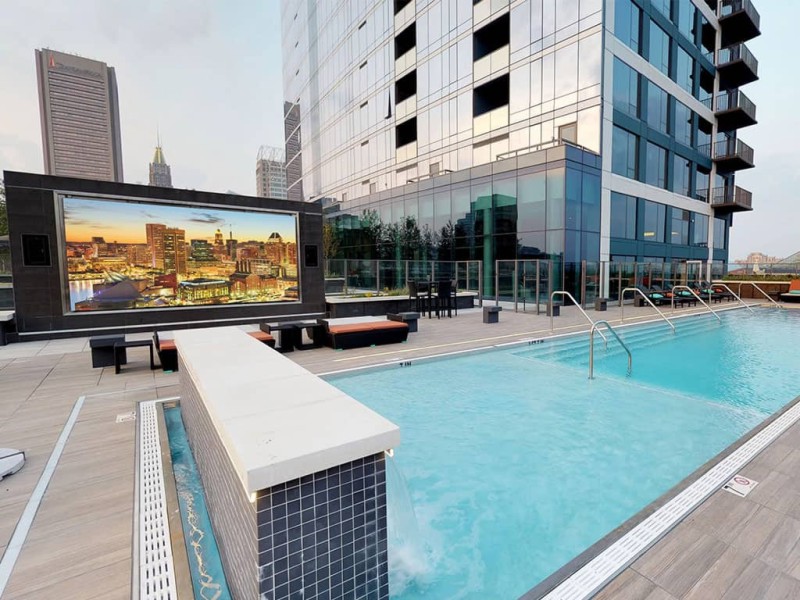

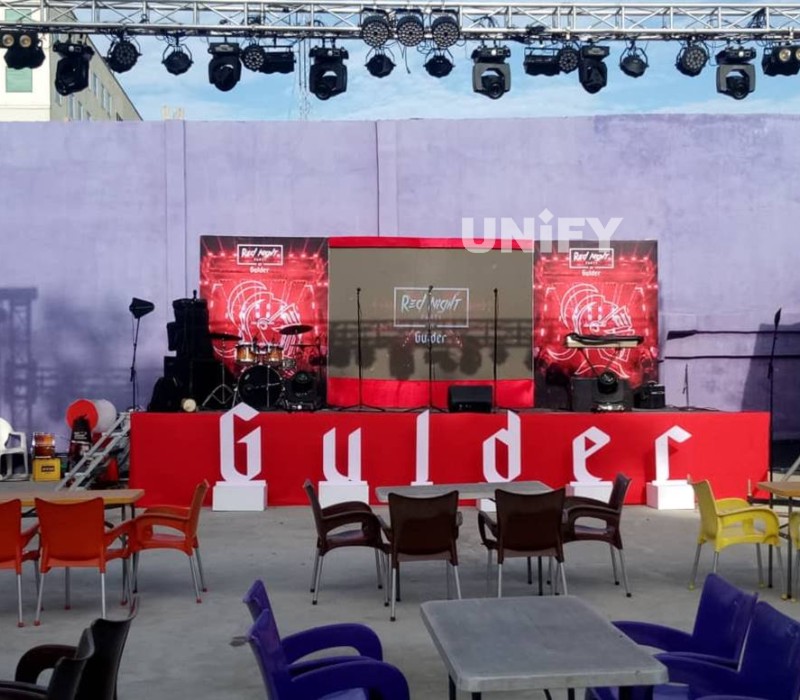

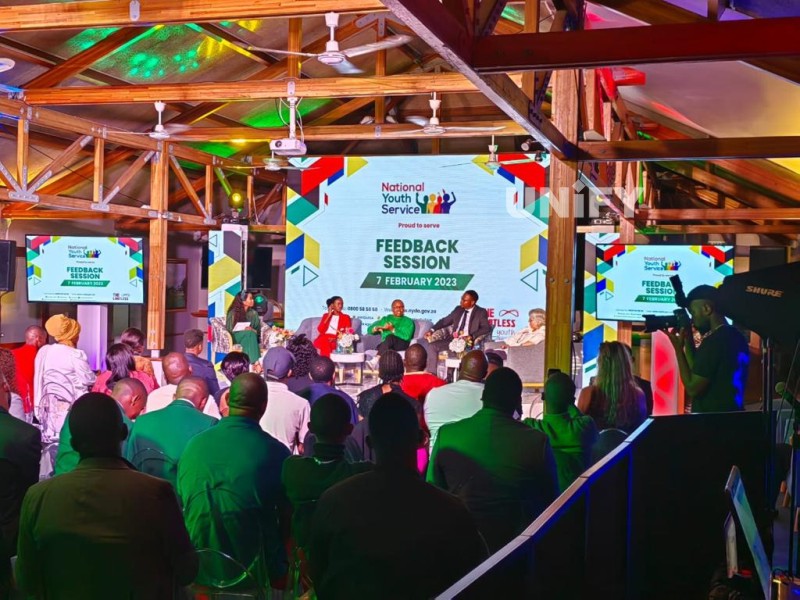

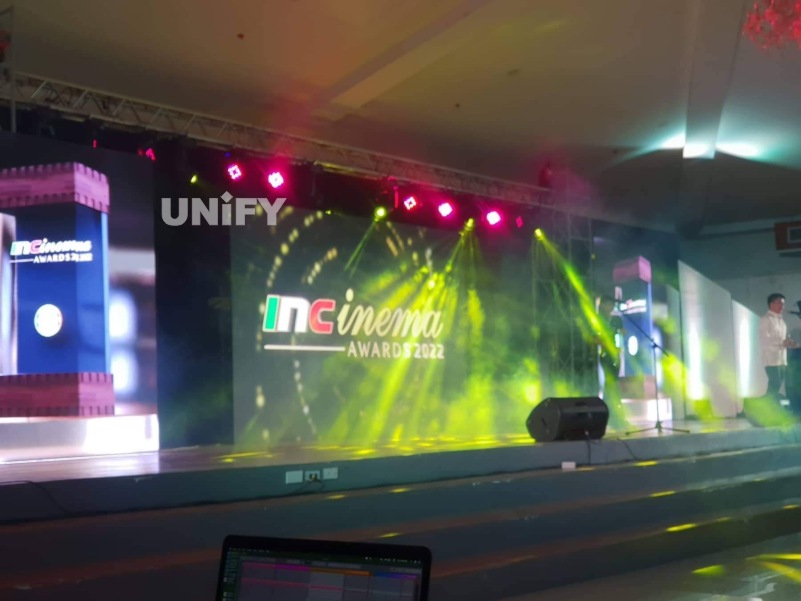

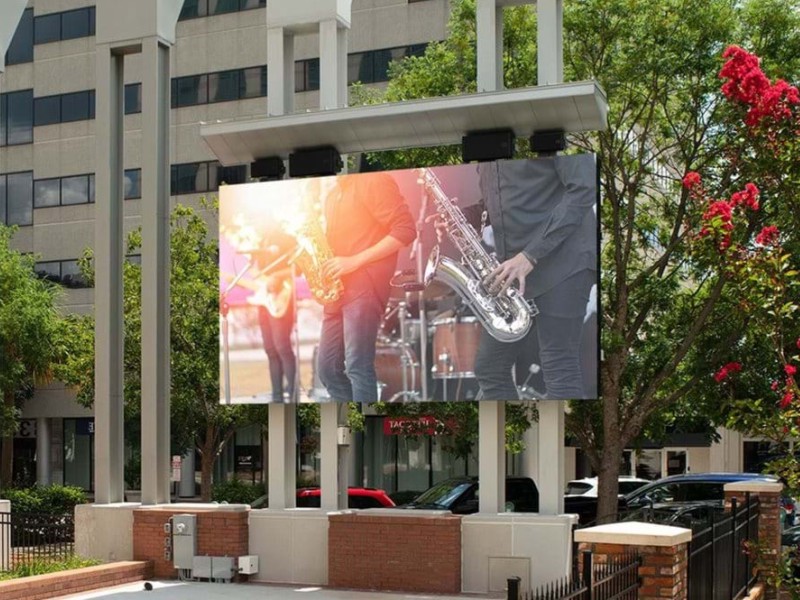

Rental led Panel Cases of RS Series
Specification
| Value | Indoor | Outdoor | |||
| Pixel Pitch | 2.604 | 2.976 | 3.91 | 3.91 | 4.81 |
| Brightness | 1000 | 1000 | 1000 | 4500 | 4500 |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD |
| Colors | 281trillion | 281trillion | 281trillion | 281trillion | 281trillion |
| Panel Pixel | 192*192 | 168*168 | 128*128 | 128*128 | 104*104 |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Pixel Matrix Per Sq.m | 147456 | 112896 | 65536 | 65536 | 43264 |
| View Angle (H/V) | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 |
| Power Comsuption(max/avg) | 550/200 | 480/170 | 400/150 | 600/200 | 580/180 |
| IP Rate | IP40/20 | IP40/20 | IP40/20 | IP65/43 | IP65/43 |
| Input Voltage (AC) | 110/240 | 110/240 | 110/240 | 110/240 | 110/240 |
| Panel Size(mm) | 500*1000*88 | 500*1000*88 | 500*1000*88 | 500*1000*88 | 500*1000*88 |
| Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Panel Weight(kgs) | 7.2 | 7.2 | 7.2 | 7.5 | 7.5 |
Recommend Rental LED Panel
Stage LED Display-R series
Stage LED Display-R Series Cabinet weight:7.5kg Refresh rate: 3840HZ Pixel pitch: P2.604 P2.97 P3.91 P4.8mm Multiple protection, all-round protection Wireless
Rental LED Panel -RS series
Rental LED Panel-RS Series Cabinet weight:7.5kg Refresh rate: 3840HZ hard connection box Pixel pitch: P2.604 P2.97 P3.91 P4.8mm Material: strong
Event LED Display- Enova pro Series
Event LED Display -Enova pro Series Cabinet weight:7.5kg Refresh rate: 3840HZ hard connection box Pixel pitch: P2.604 P2.97 P3.91 P4.8mm
Stage LED Wall- Enova Series
Stage LED Wall -Enova Series Cabinet weight:7.5kg Refresh rate: 3840HZ hard connection box Pixel pitch: P2.604 P2.97 P3.91 P4.8mm Material:
Rental LED Panel——Choose the right screen to double the effect of your event
At the event site, visual presentation often determines the audience’s first impression. A suitable rental LED panel (rental LED display) can not only present the content clearly, but also greatly enhance the overall atmosphere and interactive effect.
Whether it is a concert, press conference, wedding or mobile roadshow, different scenes have different requirements for the brightness, resolution, structure and installation method of the LED screen.
If you choose the wrong screen, the picture may be blurred, unevenly spliced, and troublesome to maintain, affecting the effect of the entire event.
If you choose the right screen, the construction efficiency is high, the display is stable, and the picture is colorful, which saves time and worry.
Starting from multiple typical application scenarios, this article will disassemble how to choose the right LED rental screen for different activities to help you spend your money wisely.
LED wall for Concerts
In large-scale outdoor or semi-outdoor events such as concerts, the LED display screen is not only the visual center of the stage, but also the emotional amplifier of the entire performance.
Due to the large number of audiences, long viewing distance, and complex ambient light, the screen must have high brightness and wide viewing angle** to ensure that no matter where the audience stands, they can clearly see the stage picture, lyrics subtitles and real-time pictures.
It is recommended to use the RS series P3.91 or P4.81 rental LED panel.
These two pixel pitches not only ensure clarity, but also take into account viewing distance and cost control. It is recommended to choose a brightness of 5000nits or more, which can ensure clear and visible pictures even under strong light or sunlight.
The screen viewing angle should reach **horizontal ≥140°, vertical ≥120°**, to ensure that the audience in the back row or on the side can also get a good viewing experience.
In addition, concerts also have high requirements for construction efficiency and safety.
It is recommended to use die-cast aluminum cabinets, hard connection structures and quick lock designs to facilitate quick assembly and disassembly, improve exhibition efficiency, and reduce labor costs.
If you are an event organizer or equipment rental company, you should give priority to concert LED wall, outdoor rental LED panel that support high brightness, wide viewing angle and rapid deployment, so that you can truly cope with the high-intensity and high-tempo stage performance environment and ensure that the visual presentation of each performance is stable and outstanding.
Meeting
In corporate annual meetings or new product launches, LED display screens play an important role in information display and brand presentation. Such scenes have high requirements for image clarity and splicing effects.
It is recommended to use P2.604 or P2.976 rental LED panels, which have high-definition resolution and 3840Hz high refresh rate, and can clearly present PPT, video and brand visual content.
In order to cope with the compact exhibition rhythm, it is recommended to use hard connection structure, quick installation design and standard module size, which is convenient for rapid construction and presents a seamless modular LED wall effect.
The die-cast aluminum cabinet is light and stable, which is convenient for multiple use and transportation.
For event organizers, choosing event LED screen or HD rental LED panel not only improves the visual effect, but also helps to present the brand image professionally.
Wedding and celebrations
In weddings and celebrations, LED screens are often used to play blessing videos, live playback and interactive content, and the demand for soft picture quality and convenient operation is more prominent. For such activities, it is recommended to use rental LED panel with lightweight cabinet and hidden wiring design, which is not only neat in appearance, but also easy to deploy quickly to ensure the beauty of the scene.
It is recommended to choose products with front maintenance structure, which is convenient for quick replacement of modules or adjustment of settings in banquet halls with limited space. The screen has moderate brightness and soft colors, which can clearly present photos and videos without glare, and is suitable for long-term viewing indoors.
For wedding companies or event planning teams, choosing wedding LED screen, indoor LED rental screen or portable LED video wall can improve the overall setting level, enhance the guests’ sense of immersion, and reduce transportation and construction costs.
churches LED Screen
In churches and religious activities, LED screens are mainly used to display scriptures, lyrics subtitles and sermons, emphasizing soft images, eye protection, quietness and stable operation.
It is recommended to use P2.5 or P2.976 rental LED panels, which have high pixel density, are suitable for medium and close distance viewing, and have clear and delicate images.
Such scenes are mostly indoors, and it is recommended to choose a screen with moderate brightness and high contrast, which can ensure clear text without glare, and protect the eyesight of believers.
At the same time, quiet operation design is preferred to avoid fan noise interfering with the worship atmosphere.
For churches or event organizers, choosing a church LED rental panel, which has both high contrast LED screen and quiet LED video display features, can not only enhance the preaching experience, but also facilitate daily operation and management.
naked-eye 3D displays
In naked-eye 3D displays, immersive exhibitions or technology interactive activities, the LED display screen must not only be clear, but also have structural plasticity to achieve a creative effect with strong visual impact.
It is recommended to use rental LED panels that support 90° corners and arc splicing to meet the needs of complex modeling.
This type of product can achieve seamless corners and curved surface splicing, and is suitable for 3D press conferences, immersive exhibition halls, technology interactive areas and other scenes to create a three-dimensional picture with a strong sense of envelopment and clear layers.
Compared with traditional flat screens, it can attract more attention and enhance brand communication.
For creative companies or exhibition contractors, choosing 3D LED rental screen, curved modular LED wall and other highly flexible creative event LED display is the key to achieving differentiated visual effects.
mobile tours
For mobile tours with frequent changes of venues, convenient transportation and efficient assembly of equipment are particularly important.
At this time, the use of quick-install LED rental panels has become the industry standard, which can greatly shorten the installation time and improve the efficiency of the tour.
It is recommended to use the design of die-cast aluminum cabinets, which not only ensures the lightweight of the cabinet, but also enhances the firmness of the structure, greatly improves the anti-fall and wear resistance, and adapts to the needs of frequent handling and harsh transportation environments during the tour.
With the standard module size of 250×250 mm and hard connection design, the modules can be closely fitted to ensure the stability and consistency of the display effect.
In addition, the roadshow LED video wall is widely welcomed by the rental market due to its flexible assembly method and quick disassembly characteristics.
The use of lightweight and quick-install cabinets greatly reduces the cost of manpower and time.
How to choose the most suitable configuration
When choosing a rental LED display, a reasonable balance between brightness and pixel density is the key to achieving ideal display effects and controlling costs.
High-brightness screens are more suitable for outdoor strong light environments, but are usually more expensive; high pixel density brings more delicate picture quality, suitable for close viewing, but the cost is also increased accordingly.
According to the specific needs of the project, choosing the appropriate brightness and resolution configuration can find the best balance between visual effects and budget and realize the maximum value of cost-effective LED panels.
In addition, the choice of cabinet size directly affects the efficiency of transportation and installation.
Although larger cabinets reduce the number of splicing, they will increase the difficulty and transportation cost of a single handling; while smaller cabinets are convenient for quick installation and flexible layout, but may extend the on-site assembly time.
Understanding this will help adjust the plan according to the compactness of the project cycle, saving labor costs and avoiding additional expenses due to installation delays.
In order to help customers plan budgets and selections more clearly, many suppliers provide detailed rental LED screen price guides, covering price ranges of different specifications, brightness and module configurations.
Combining the project cycle and usage frequency, choosing a suitable leasing solution can not only meet display needs, but also avoid waste of resources and maximize return on investment.
Choose a reliable supplier to avoid the “low price trap”
In the rental LED display market, when choosing an LED screen manufacturer for rental, do not be fooled by the temptation of low prices.
Low-priced products often have shortcomings in structure and service, which may eventually lead to installation difficulties, frequent failures, and even affect the effect and reputation of the event.
First, focus on the structural design of the display. High-quality suppliers generally use die-cast aluminum module boxes, equipped with efficient quick locks and stable hard connection technology.
These hardware details ensure that the screen body is tightly spliced, quick to install, and resistant to fall and wear, greatly improving the efficiency of on-site construction and the durability of equipment.
Secondly, perfect after-sales service is also an important indicator for judging the professionalism of suppliers.
Excellent modular LED display manufacturers usually support remote technical guidance, can help customers solve faults in the first time, and are equipped with a complete spare parts inventory to ensure the stable operation of rental equipment and avoid the risk of downtime due to missing accessories.
Finally, the delivery link should not be ignored. Whether the supplier has rich export experience and whether it uses safe and scientific packaging methods directly affects the safety of the equipment during transportation and the integrity of the goods upon arrival.
Only manufacturers with international logistics experience can ensure that the equipment is delivered on time and safely to meet the efficient needs of multi-location tours and activities.
Unify-LED Display manufacturer
Unify LED is a trusted Chinese LED display factory.
If you’re unsure what screen you need for maximum effect, you can contact us to provide you with guidance and a full quote.
