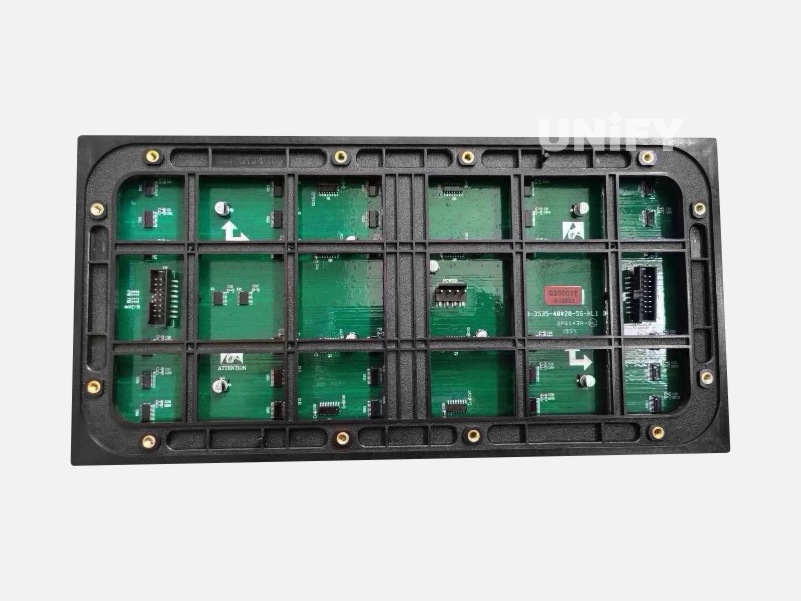

P8 Outdoor LED Module
- Pixel Pitch: 8mm
- Module Size: 256*128mm
- Module Resolution: 32*16
- Refresh rate: 3840hz
- RGB Full color for outdoor use
- 2 Years Warranty
P8 LED module refers to an outdoor LED display module with a pixel pitch of 8mm. The module size is usually 320*160mm and 256*128mm. It has a high brightness of more than 4500nits and an IP65 protection level, and can operate stably under various weather conditions.
It is widely used in outdoor LED display screens for viewing at medium and long distances, such as billboards, information display screens, traffic guidance screens, etc.
Main components
LED Lamp
LED Mask & Kit
Driver IC
PCB board
P8 LED Module Size
320*160mm LED module
If the module is used alone as a light-emitting screen, UnifyLED will provide you with a complete set of important accessories such as the corresponding power cable, signal cable, and receiving card.
256*128mm P8 LED Module
Key Features
IP65 Waterproof
Outdoor P8 modules need to be coated with waterproof three-proof paint, or encapsulated with sealant to ensure waterproof, dustproof and corrosion resistance.
Wide viewing angle
Modular design:
High Refresh Rate
Carefully selected LED drivers s allow P8 LED panel to deliver high refresh rates up to 3840Hz, resulting in flicker-free operation in module applications.
P8 LED Module Specification
| Pixel Pitch | 8mm |
| Panel Dimension | 320(W)x160mm(H) 256(W)x128mm(H) |
| Pixel Resolution | 40×20 dot 32×16 dot |
| Pixel Configuration | 1R1G1B |
| LED specification | SMD 3in1 |
| Scan Rate | Constant current 1/4, 1/5 scan |
| Hor. viewing angle | 160° |
| Vert. viewing angle | 160° |
| Best View Distance | 8m – 80m |
| Grey Level | 14 bits |
| Brightness | ≥5500 cd/㎡ |
| Brightness Adjustment | 100-grade auto/manual-adjustment |
| Brightness Uniformity | >99% |
Image Gallery

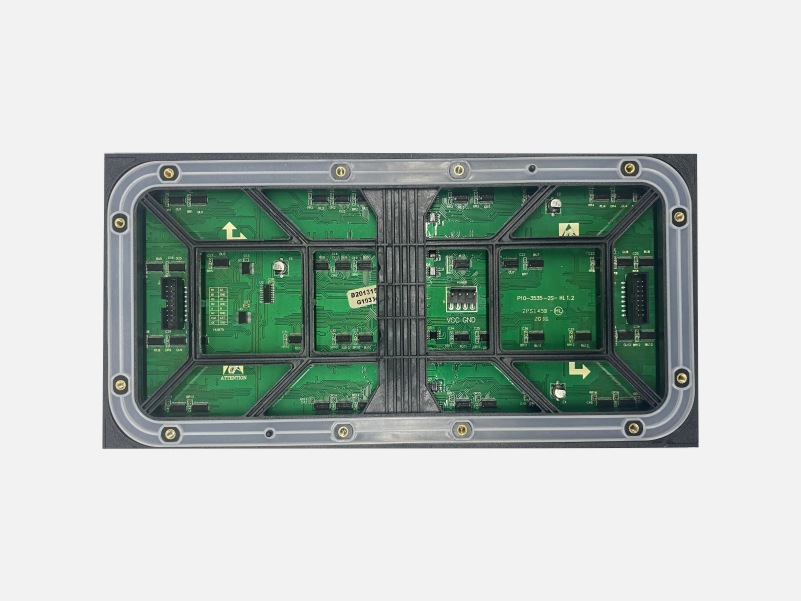

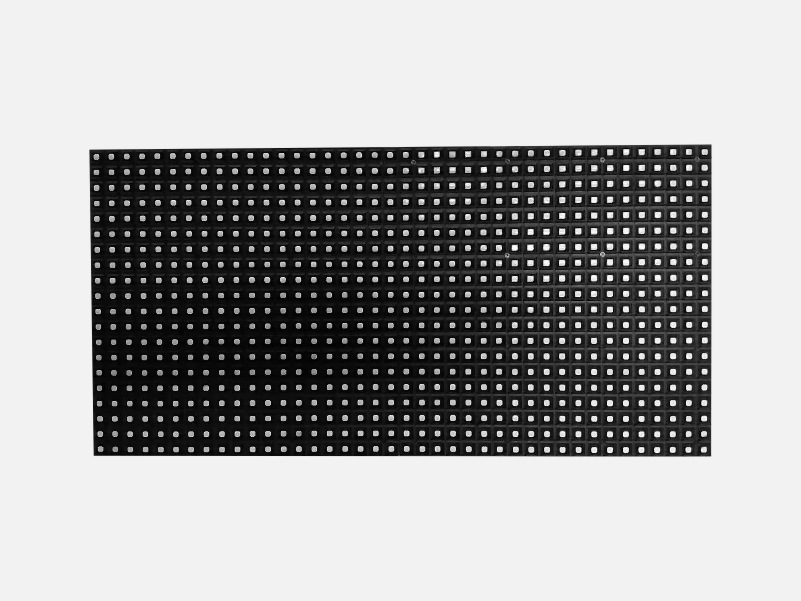

P8 outdoor LED Module Details
FAQs:
A P8 LED module is an LED display unit with a pixel pitch of 8mm, commonly used for outdoor large screens such as billboards and traffic signs. It offers high brightness and visibility for long-distance viewing.
The optimal viewing distance for a P8 LED display is around 8 to 80 meters. It’s ideal for outdoor applications where viewers are not close to the screen.
Yes, P8 LED modules are mainly designed for outdoor use. They typically feature waterproof design (IP65 or above), high brightness (over 5000 nits), and strong durability.
Resolution depends on the module size. For example, a 320mm x 160mm P8 module typically has a resolution of 40×20 pixels. The larger the screen, the higher the total resolution.
Common P8 LED module sizes include 320x160mm, 256x128mm, and 192x192mm, depending on the manufacturer and design.
The main difference is pixel pitch: P8 has 8mm spacing, while P10 has 10mm. P8 offers higher resolution and better image clarity at the same screen size, but usually at a slightly higher cost.
Prices vary by supplier, configuration, and size. As of recent data, the average price for outdoor P8 LED displays ranges from USD 200 to 500 per square meter, excluding installation and control systems.
Recommend Products
LED Advertising Billboard-LA Series
LED Advertising Billboard-LA Series Module size 320*160mm, 1m*1m large size panel Optimized structure, flexible installation Common cathode energy saving High
Sport LED Screen – SP Series
Stadium LED Display- SP Series Outdoor Sports Perimeter LED Display Board Pixel pitch P4/P5/P6/P8/P10 Standard Cabinet Size :1280*960mm 3840Hz high
Advertising LED Screen – B Series
Advertising LED Screen – B Series Module size 320*160mm, panel size 960*960mm Pixel pitch P4/P5/P6/P8/P10 Wide viewing angle Brightness options
Outdoor LED Billboard-OK Series
Outdoor LED Billboard – OK Series Module size 320*160mm, panel size 960*960mm Pixel pitch P5/P6/P8/P10 to meet various needs Save
Typical application scenarios of P8 LED modules:

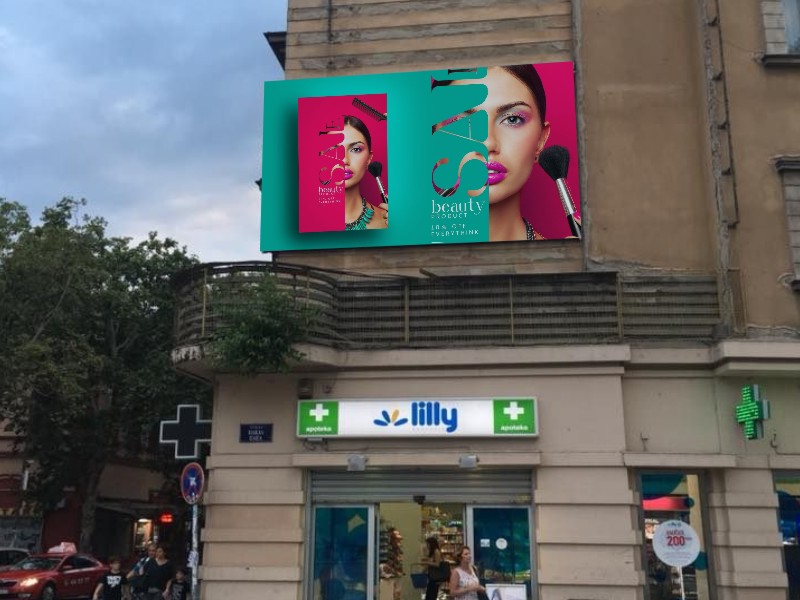

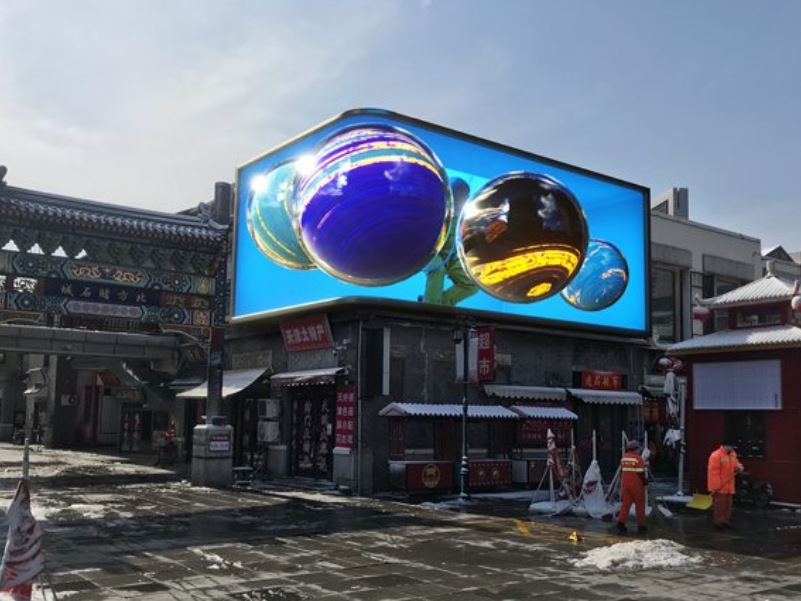

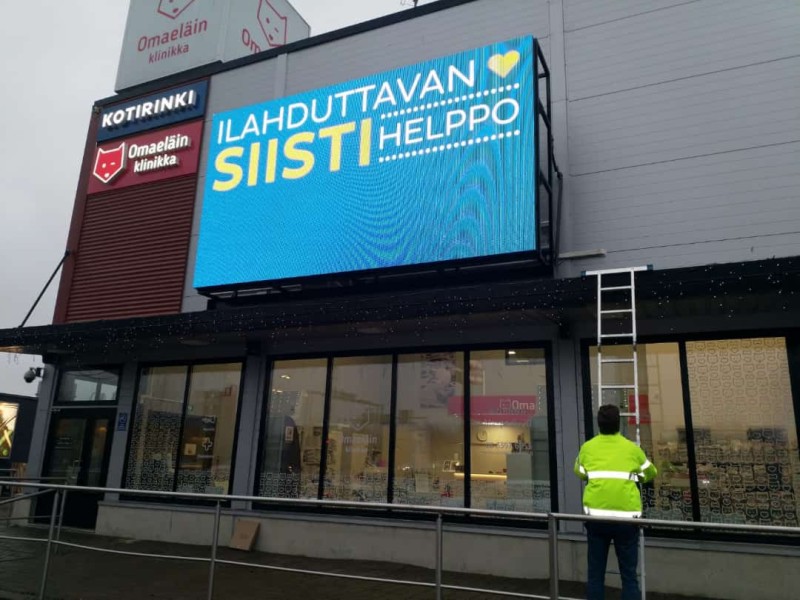

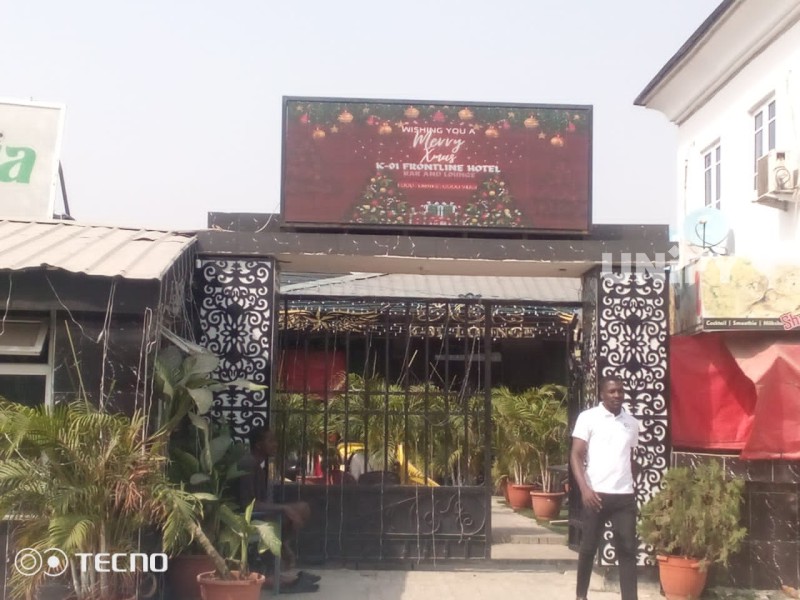

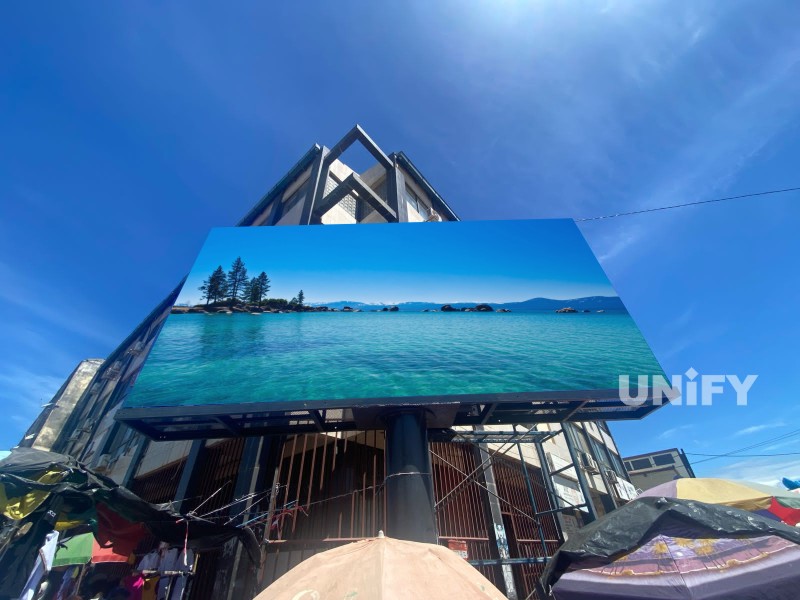

Outdoor advertising screen
Installed on building exterior walls, commercial streets, gas stations, parking lot entrances, etc., for playing commercial advertisements and brand promotional videos.
P8 has the advantages of high brightness, strong waterproofness, and long viewing distance, which is very suitable for such scenarios.
Traffic guidance screen
Variable message signs (VMS) used in highways, urban roads, and toll booths are used to display traffic conditions, speed limit information, etc. in real time, requiring all-weather readability. P8 modules provide good clarity and high reliability.
Square information display screen
Such as in front of city squares, community squares or government service centers, used to publish public information such as notices, weather, and news.
P8 modules are suitable for large-size displays, eye-catching information transmission, and wide coverage.
Stadium and event site screens
Used for live broadcasts, score displays, advertising playback, etc., such as football fields, basketball halls, concerts, temple fairs and other event sites.
P8 can meet the needs of large viewing angles, long-distance viewing, and high-definition communication.
Station/Airport Outdoor Information Display
Displaying schedule information, announcements or commercial advertisements in waiting areas, squares in front of stations, etc., the P8 module ensures strong visibility in the sun and convenient maintenance.
Industrial Park or Enterprise Gate Display
Installed at the factory gate or in front of the office building, playing corporate promotional videos, safety production reminders, etc., the P8 LED module ensures that the content is eye-catching and visible all day.

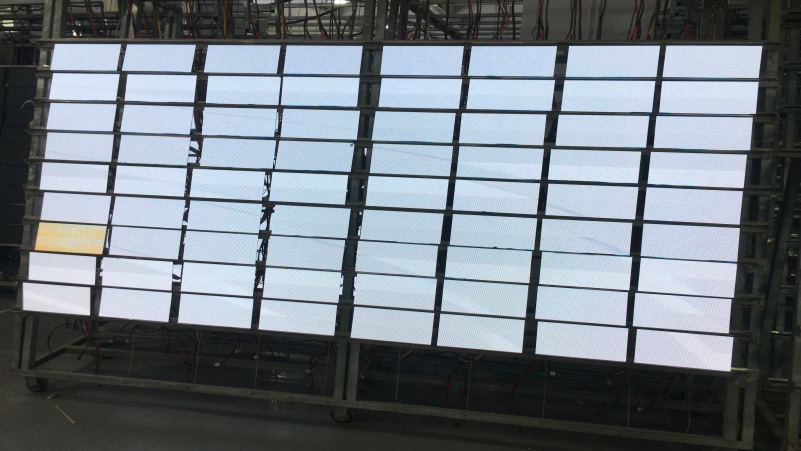

P8 LED Module Aging Test
Definition and purpose: Aging test is to detect the stability, brightness, color temperature and other performance of LED modules to ensure long-term stable operation of the product.
All UnifyLED LED modules will undergo 48-72 hours of aging test after production. Assemble the module on the steel structure frame, light up the P8 LED module, and use red, blue, green and white to detect whether the color display of the LED lamp beads is intact.
Aging test can not only eliminate unqualified products, but also increase the service life of the module.
Qualified P8 LED modules can ensure high stability and high brightness during long-term use and reduce the occurrence of failures.

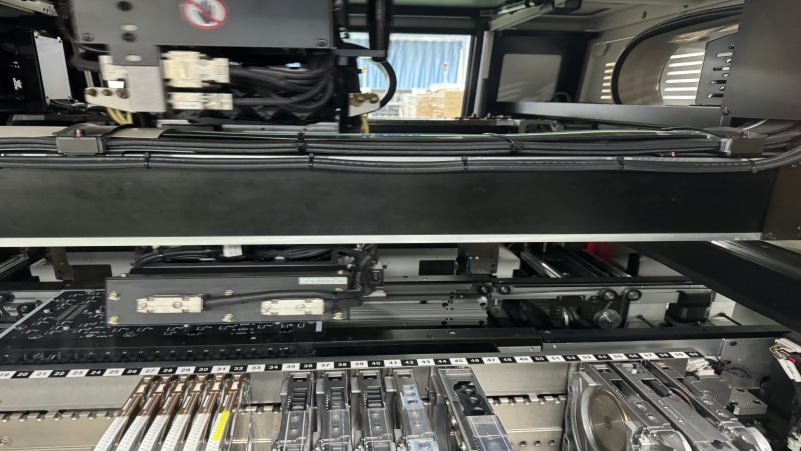

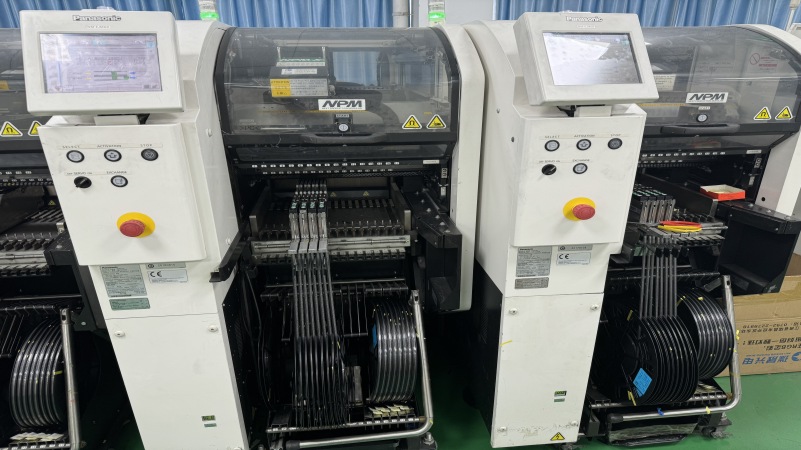

老化测试视频+工厂机器生产模组的视频
