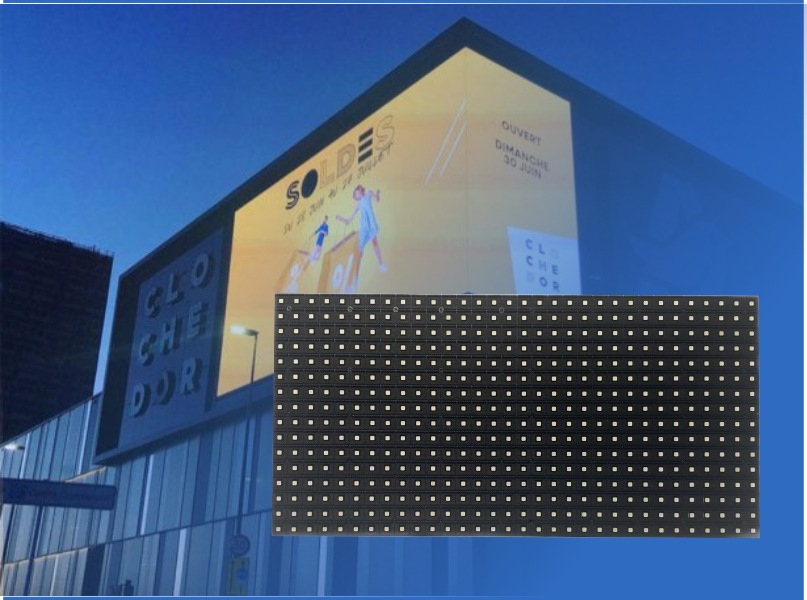

Outdoor P10 LED Display Module

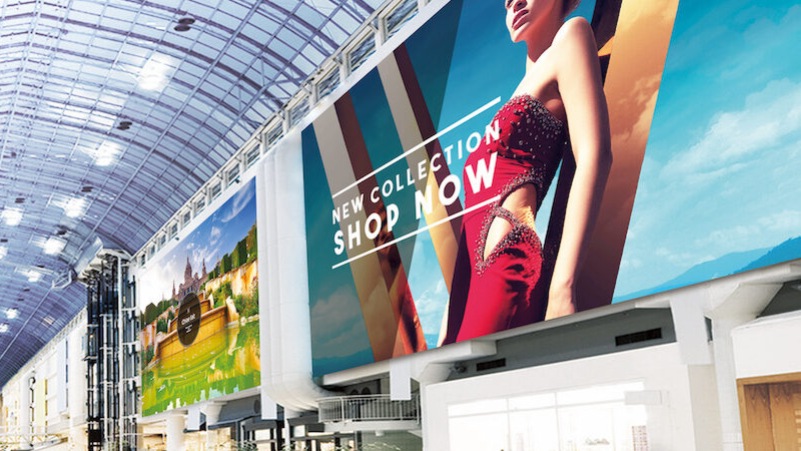

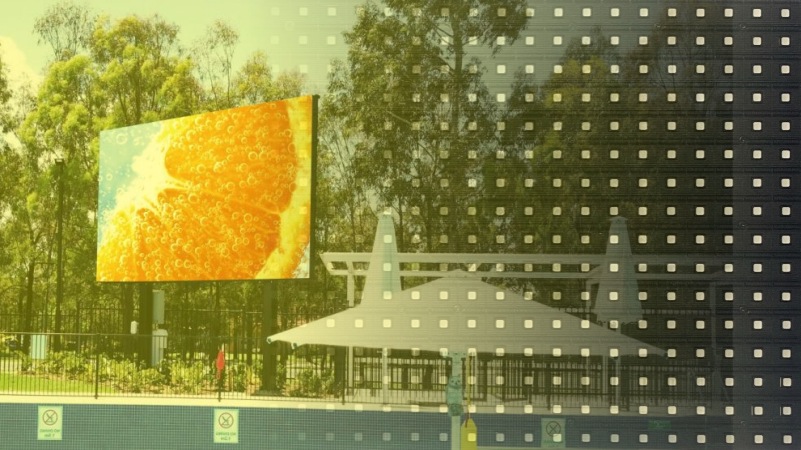

P10 LED module is an outdoor LED display module with a distance between two LED lamp beads (pixel pitch) of 10 mm. Due to the large pixel pitch, it is suitable for viewing at a far distance such as 10 meters. P10 full color LED module is usually used as Stadium LED screen, outdoor column advertising LED screen, shopping mall door LED screen, etc.
P10 LED Module for outdoor
- Pixel Pitch: 10mm
- Module Size: 320*160mm
- Module Resolution: 32*16
- CE,RoHS,FCC Approved
- 2 Years Warranty
- In Stock
Key Features:

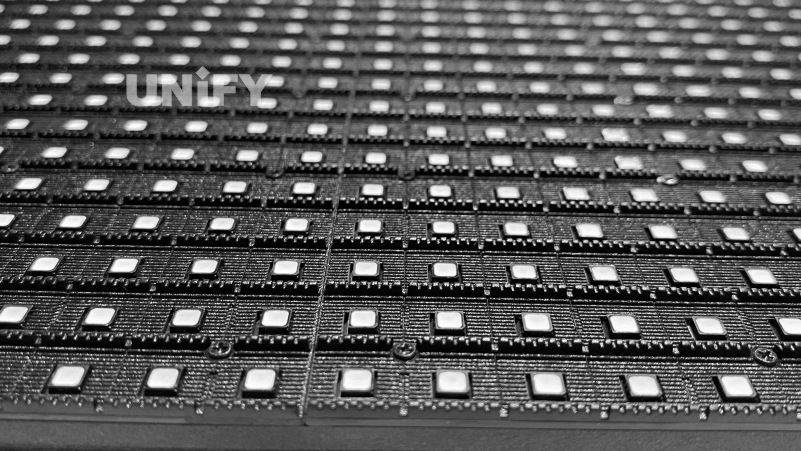

High-quality lamp beads
P10 LED modules usually use high-brightness and high-consistency SMD1921 or SMD2020 packaged lamp beads, which have strong anti-ultraviolet and moisture-proof capabilities to ensure bright colors.

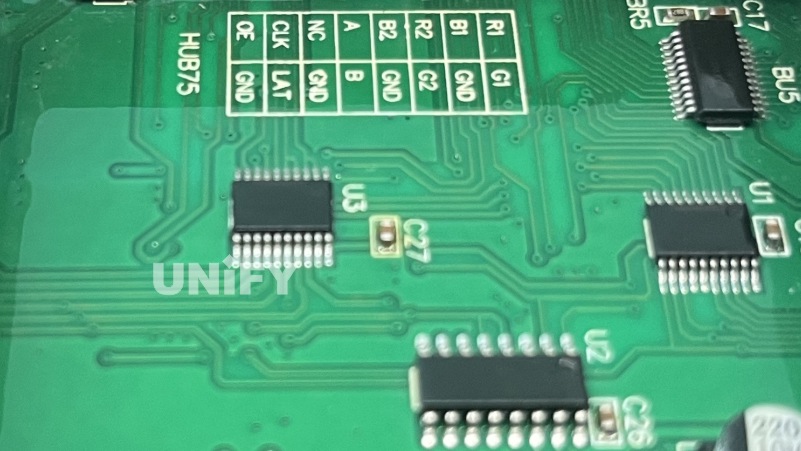

High refresh rate driver IC
Matched with mainstream high-refresh ICs, such as ICN2038S, MBI5124, etc., it supports a refresh rate of ≥3840Hz, effectively eliminating scan lines and flicker.
Stable performance
The lamp beads work well with the IC card, the control system drive is stable, the color difference is small, and the color temperature is balanced, ensuring the overall consistency and visual comfort of the screen.
Front/rear maintenance

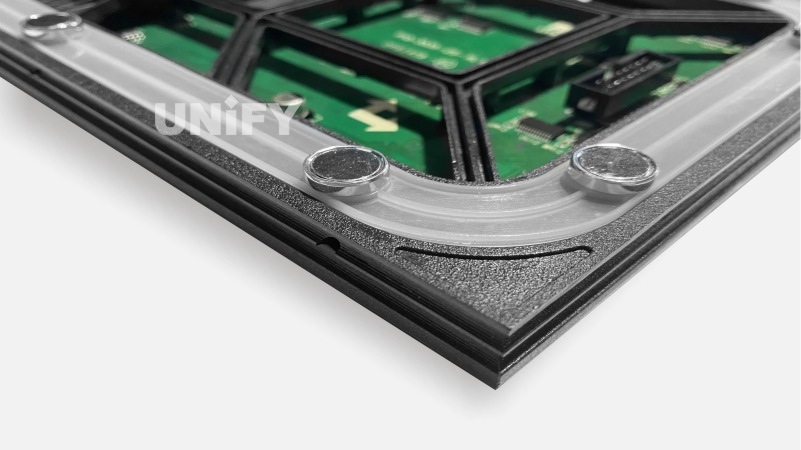

The P10 module can be equipped with optional magnetic structure or quick-release design, supporting front/rear maintenance.
Long life
Lamp life ≥ 100,000 hours, equipped with 5V high-efficiency power supply, supports overvoltage and overcurrent protection, stable operation and energy saving
Outdoor waterproof performance
Protection level reaches IP65, front side is rainproof and dustproof. Adapt to a variety of harsh environments: rainy days, dust, high temperature
P10 LED Module Sizes
P10 LED Module Size
The packaging method is generally SMD and DIP.
SMD P10 LED Module
Compared with traditional DIP packaging, SMD packaging has the advantages of wider viewing angle, more uniform color, and higher contrast.
DIP P10 LED Module
Accessories
Power Cable
Receiver card
P10 LED Module Specification
| Pixel Pitch | 10mm |
| Panel Dimension | 320(W)x160mm(H) |
| Pixel Resolution | 32×16 dot |
| Pixel Configuration | 1R1G1B |
| LED specification | SMD 3in1 |
| Scan Rate | Constant current 1/2 or 1/4 scan |
| Hor. viewing angle | 120° |
| Vert. viewing angle | 120° |
| Best View Distance | 8m – 25m |
| Grey Level | 14 bits |
| Brightness | ≥5500 cd/㎡ |
| Brightness Adjustment | 100 grade auto/manual-adjustment |
| Brightness Uniformity | >99% |
Optical Ratings | |||||||
Brightness | ≥1000cd/㎡ | ||||||
View Angle | 140 degree ( horizontal) 140degree(vertical) | ||||||
View Distance | 2.5m-25m | ||||||
Gray Scale | 8bits input, correction with 16bits | ||||||
Display Color | 16.7M | ||||||
Brightness Adjustment | 100 levels | ||||||
| Input Voltage (AC) | DC5V |
| Avg Power Consumption | 250 W/m² |
| Max Power Consumption | 580 W/m² |
| Operation Power Voltage | 100-240V / 50-60Hz |
| Control System | DVI card + Full color control card |
| Control Mode | Synchronous & asynchronous available |
| Support Input | VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
| Communication Options | Wire Ethernet, Fiber Ethernet,RF wireless, GPRS |
| Frame Frequency | >60 Hz |
| Refresh Frequency | >600 Hz(adjustable) |
| Color Temperature | 3500-9500 adjustable |
| Control Distance | Ethernet cable 100m, optical fiber 5km |
Operating Temp. | -20-60 Celsius degree | ||||||
Operating Humidity | 10-95% RH | ||||||
Operating Life | 100,000 hours | ||||||
MTBF | 5000 hours | ||||||
Continuous Working Time | ≥48 hours | ||||||
Protection Level | IP40 | ||||||
Out of Control Pixel Rate | 0.01% |
Image Gallery

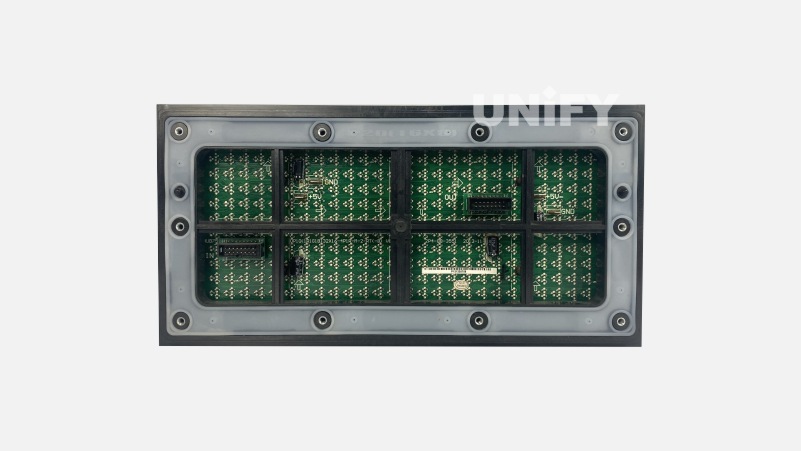

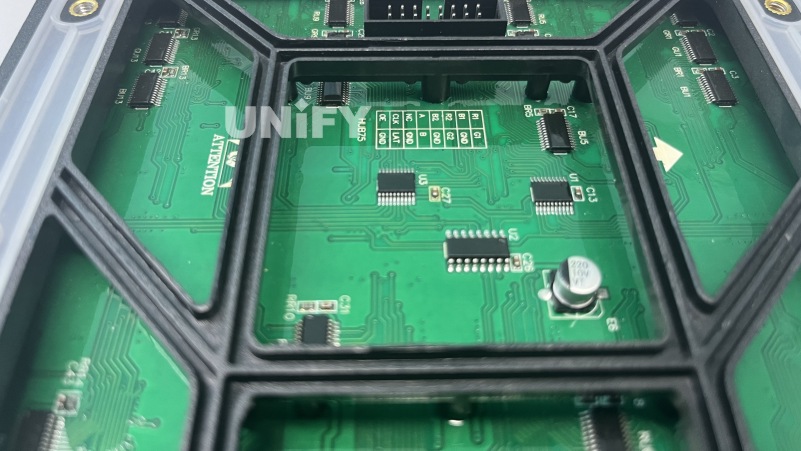

P10 LED Module Details
FAQs:
Answer: P10 refers to an LED display module with a pixel pitch of 10 mm, that is, the center distance between two adjacent pixels is 10 mm, which is suitable for large-size LED display screens viewed from a long distance outdoors.
Answer: The main difference lies in the pixel pitch and display accuracy. The dot pitch of P10 is 10mm, and the clarity is slightly lower than that of P8, but the cost is lower, which is suitable for occasions where the viewing distance is more than 10 meters.
Answer: Taking a 320×160mm module as an example, one square meter requires about 19.5 modules (1㎡ ÷ 0.0512㎡ ≈ 19.53 modules
Answer: The best viewing distance is 10 meters to 100 meters. It can be seen beyond the range, but the picture quality details will be reduced
Answer: The brightness is usually between 6000–7500cd/m². Using DIP lamp beads can achieve higher brightness, which is suitable for outdoor strong light environments.
Answer: The price varies depending on the configuration. The unit price of a conventional outdoor P10 module (320×160mm) is about US$10–30 per piece, depending on the lamp bead brand, waterproof level and driver IC configuration.
Recommend LED Modules
P2.9 LED Module
P2.9 LED Module Pixel Pitch: 2.976mm Module Size: 250*250mm RGB Full color for indor& outdoor use Module Resolution: 84*84 Lamp
P2.6 LED Module
Rental P2.6 LED Display Module P2.6 LED module is an rental LED module with a distance between two LED lamp
P1.8 LED Module
P1.8 Indoor LED Module Pixel Pitch: 1.87mm Module Size: 320*160mm RGB Full color for indoor use Module Resolution: 171*85 Lamp
P1.5 LED Module
P1.5 LED Module for Indoor P1.5 LED module is an indoor LED display module with a distance between two LED
P10 LED Module
Outdoor P10 LED Display Module P10 LED module is an outdoor LED display module with a distance between two LED
P8 LED Module
P8 Outdoor LED Module Pixel Pitch: 8mm Module Size: 256*128mm Module Resolution: 32*16 Refresh rate: 3840hz RGB Full color for
P5 LED Module
P5 LED Module for Outdoor Pixel Pitch: 5mm， suitable for medium-distance viewing outdoors Module Size: 320mm x 160mm x 15mm
P4.81 LED Module
Rental P4.81 LED Display Module P4.81 LED module is an rental LED module with a distance between two LED lamp
Comparison of P10 module packaging methods: DIP vs SMD
P10 LED modules are divided into two types, DIP (dual in-line package) and SMD (surface mount), according to different lamp bead packaging technologies. The two differ in terms of brightness, protection, viewing angle and cost.
| Comparison Item | DIP Package | SMD Package |
|---|
| Brightness | Higher (>6000 cd/m²) | Medium (4500–5500 cd/m²) |
| Waterproof Level | Stronger (IP65+ outdoor use) | Slightly weaker |
| Viewing Angle | Narrower (~120°) | Wider (140°–160°) |
| Cost | Lower | Higher |
| Maintenance | Easier to replace LEDs | More complex repair process |
DIP packaging is more suitable for outdoor projects that require high brightness, strong protection and cost sensitivity, and is suitable for long-distance text advertising and bulletin boards.
SMD packaging is superior in image fineness and viewing angle performance, and is more suitable for playing videos and multimedia advertisements.
SMD P10 LED Module

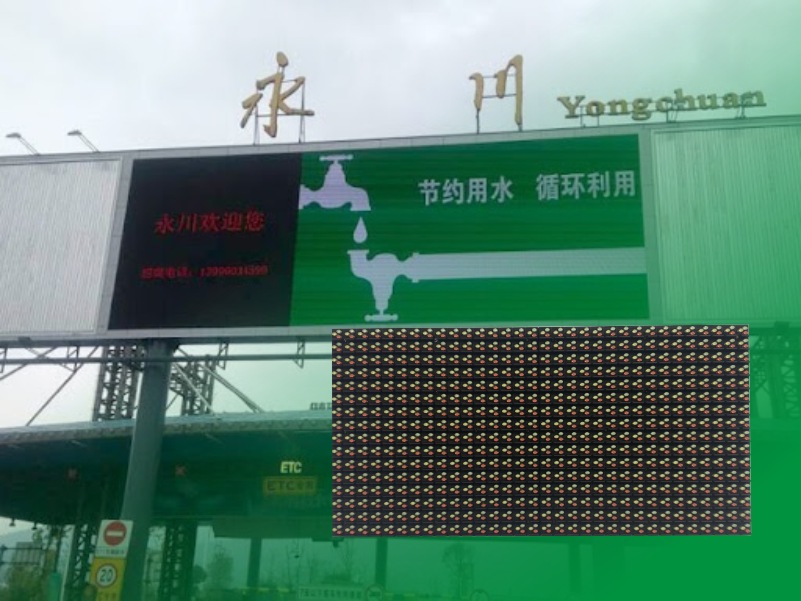

DIP P10 LED Module
How to choose the right P10 LED module?
When choosing a P10 outdoor module, the project environment, display effect requirements and budget should be considered comprehensively:
The installation environment determines the brightness and protection level
For outdoor advertising screens under direct sunlight, DIP packaging, high brightness (>6000cd) and IP65 protection modules should be selected; SMD packaging modules can be considered for outdoor semi-shaded scenes.
Content display requirements determine the packaging method
If the main playback is pictures and text, DIP modules are more cost-effective; if you need to play videos and multimedia interactive content, it is recommended to choose SMD modules, which have delicate display and natural color transition.
Cost and maintenance considerations
DIP modules are relatively low in price and suitable for large-scale purchases, and the lamp beads are easier to replace, and the subsequent maintenance cost is low.
System compatibility and customization capabilities
Confirm whether the control system supported by the module (such as NovaStar, Colorlight, Linsn, etc.) can cooperate with the existing engineering plan; some projects may require special requirements such as customized size and enhanced color consistency.

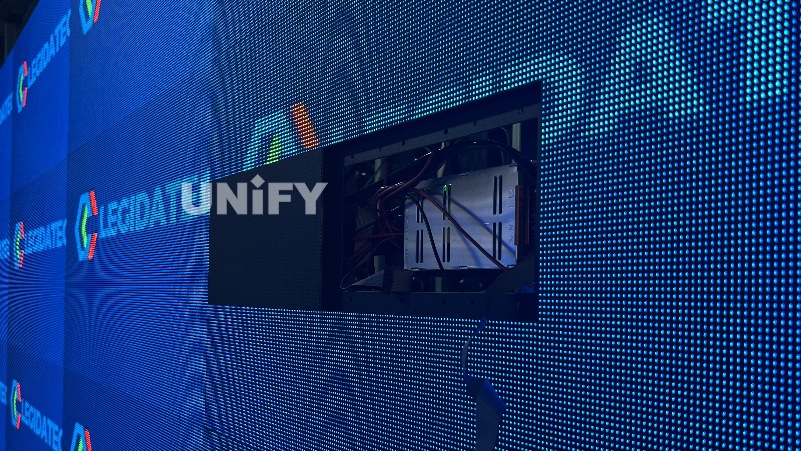

P10 module installation and maintenance
P10 LED modules support a variety of installation methods and maintenance modes in actual projects, which is convenient for engineers to quickly deploy and maintain in the later stage.
Installation method:
Magnetic installation: suitable for front maintenance structure, easy to quickly disassemble and replace modules.
Screw fixing: more solid, suitable for long-term fixed installation.
Front/rear maintenance structure: select the maintenance method according to the screen space, front maintenance is suitable for wall installation, and rear maintenance is suitable for scenes with operation channels.
Control system compatibility:
P10 modules are generally compatible with a variety of mainstream control systems:
Synchronous control card (such as NovaStar, Colorlight): suitable for video playback and instant update.
Asynchronous control card (such as Linsn): suitable for announcement content that does not need to be updated in real time or scheduled release.
Control method can also support Wi-Fi, U disk, mobile phone APP remote update content.
Common faults and maintenance suggestions:
The lamp beads are not lit: check whether the power supply, circuit and driver IC are abnormal.
Color deviation or screen distortion: It may be abnormal signal transmission, check the cable or control card.
Module disconnection/loose wiring: re-plug the interface or check the stability of power output.
Large-scale failure: It may be necessary to replace the entire board or check the power supply group failure.
Module replacement process:
Power off operation to ensure safety. Remove the fixing method (magnetic suction or screw). Pull out the cable and power cord. Replace the module and reconnect the cable. Power on the test to see if the display is normal. Restore the box structure after completion.

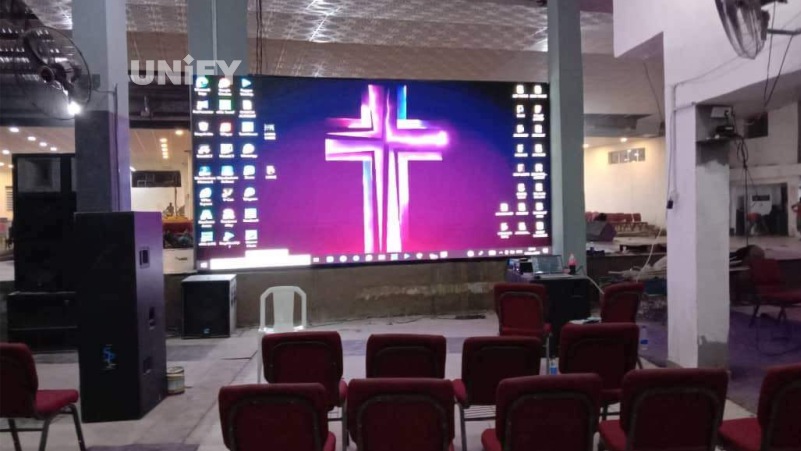

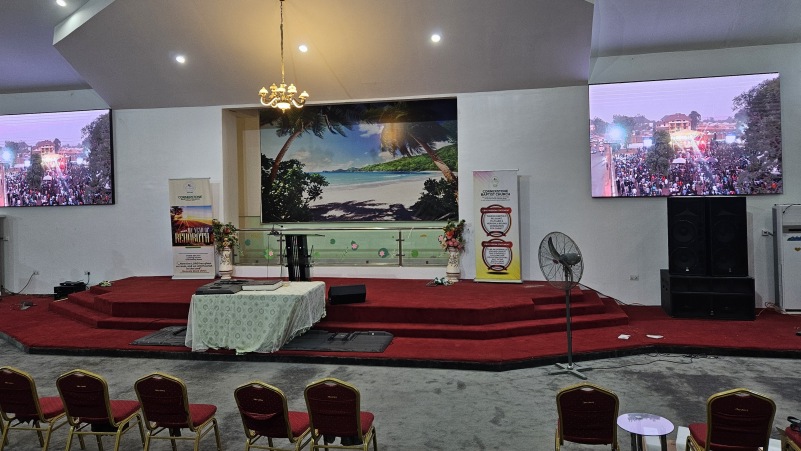

P10 LED Display Cases
