P1.8 Indoor LED Module
- Pixel Pitch: 1.87mm
- Module Size: 320*160mm
- RGB Full color for indoor use
- Module Resolution: 171*85
- Lamp brand: Nationstar/Kinglight
- Control System: Novastar/Huidu
- Refresh rate: 3840hz
- 2 Years Warranty
P1.8 LED module is a small-pitch LED display module with a pixel pitch of 1.876mm, designed for close-range high-definition display needs. Compared with traditional modules such as P2.5 and P2.9, P1.8 has a higher pixel density and more delicate picture performance, and is widely used in high-end indoor scenes such as conference rooms, monitoring centers, exhibition halls, command and dispatch, and studios.
Main components
LED Lamp
LED Mask & Kit
Driver IC
PCB board
SMD P1.8 LED module
COB P1.8 LED Module
The surface hardness is high, dust-proof and moisture-resistant, especially suitable for crowded areas, frequent touch areas or places with extremely high stability requirements, such as rail transit dispatching, commercial high-end display, etc.
HOB P1.8 LED Module
It is suitable for projects that have high requirements for brightness and want easy maintenance. It is a flexible solution between SMD and COB.
Key Features

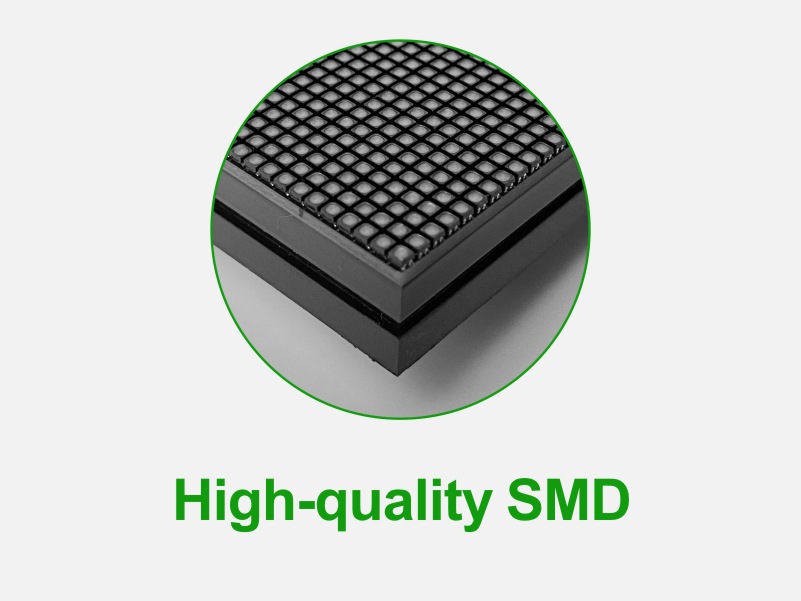

High-quality SMD
Using high quality SMD led lamp bead, no damge lamp, uniform current, same brightness, higher gray level
Wide viewing angle

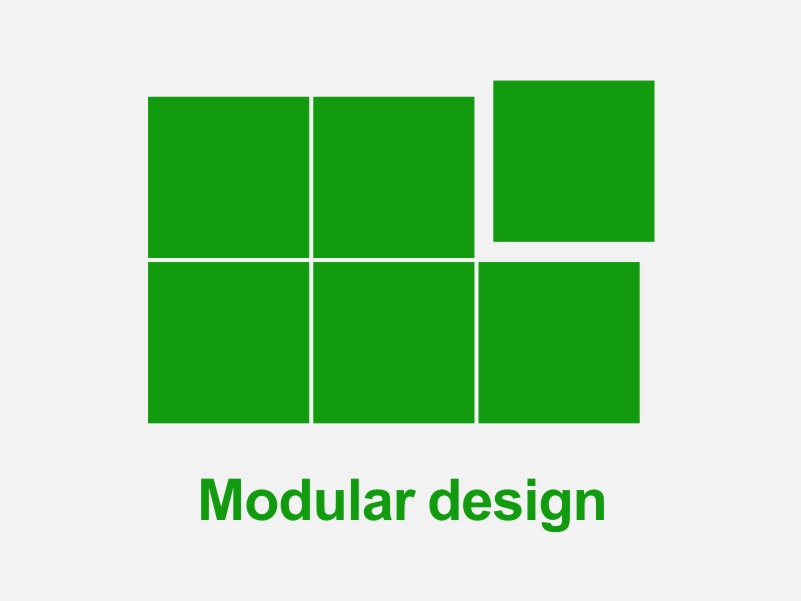

Modular design:
High Refresh Rate
Carefully selected LED drivers s allow P1.8 LED screen to deliver high refresh rates up to 3840Hz, resulting in flicker-free operation in module applications.
Accessories
Power Cable
Receiver card
P1.8 LED Module Specifications
| Item | Specification |
|---|---|
| Pixel Pitch | 1.875 mm |
| LED Type | SMD1515 / SMD1010 |
| Module Resolution | 128 × 128 dots / 160 × 90 dots |
| Module Size | 240 × 240 mm / 320 × 160 mm |
| Module Pixel Density | 284,444 dots/m² |
| Driving IC | ICN2038S / MBI5153 |
| Driving Mode | 1/32 scan / 1/30 scan |
| Refresh Rate | ≥3840 Hz |
| Brightness | 600–800 cd/m² (adjustable) |
| Gray Scale | 14–16 bit |
| Viewing Angle | 160° (H) / 160° (V) |
| Module Weight | Approx. 0.4–0.6 kg |
| Maintenance Method | Front service / Magnetic installation |
| Control System Compatible | NovaStar / Colorlight / Linsn |
| Application | Indoor: conference, control room, showroom |
Optical Ratings | |||||||
Brightness | ≥1000cd/㎡ | ||||||
View Angle | 140 degree ( horizontal) 140degree(vertical) | ||||||
View Distance | 2m-25m | ||||||
Gray Scale | 8bits input, correction with 16bits | ||||||
Display Color | 16.7M | ||||||
Brightness Adjustment | 100 levels | ||||||
Operation Power | AC100-240V 50-60HZ Switch-able | ||||||
Maxim Power Consumption | 700 W/m2 | ||||||
Average Power Consumption | 300 W/m2 |
Correction Scale Level | 16bits | ||||||
Frame Update Frequency | 60Hz | ||||||
Screen Refresh Frequency | 480-960Hz | ||||||
Gamma Correction | -5.0—5.0 | ||||||
Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI | ||||||
Control Distance | Ethernet cable 100m, optical fiber 5km | ||||||
Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 | ||||||
Color Temperature | 5000-9300 adjustable | ||||||
Brightness Correction | dot by dot, module by module, cabinet by cabinet |
Operating Temp. | -20-60 Celsius degree | ||||||
Operating Humidity | 10-95% RH | ||||||
Operating Life | 100,000 hours | ||||||
MTBF | 5000 hours | ||||||
Continuous Working Time | ≥48 hours | ||||||
Protection Level | IP40 | ||||||
Out of Control Pixel Rate | 0.01% |
Image Gallery

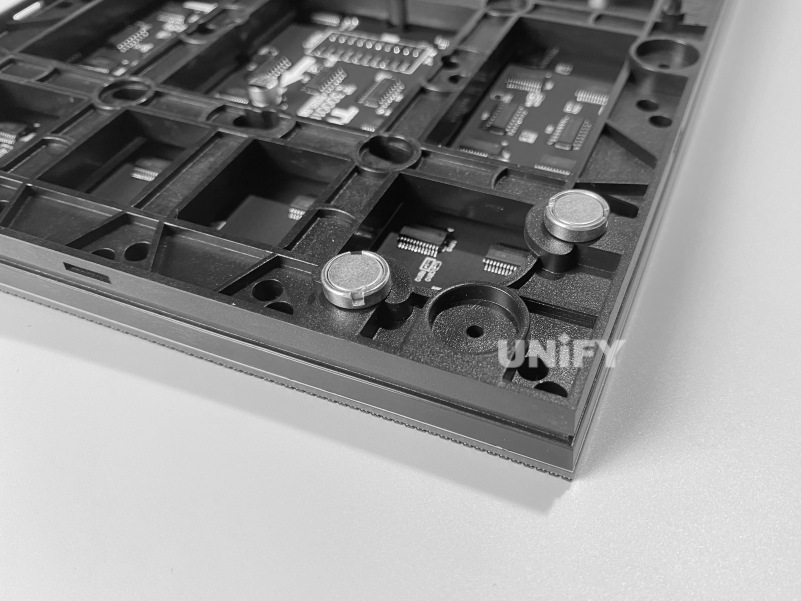

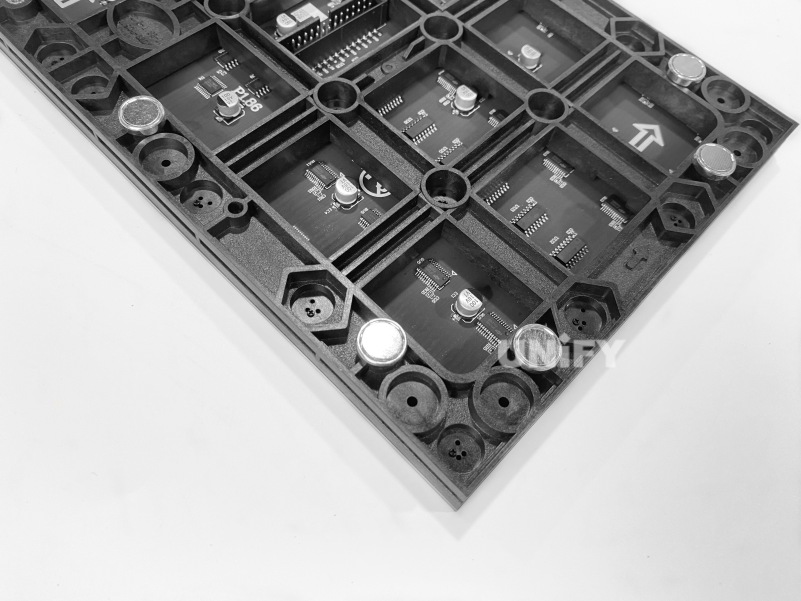

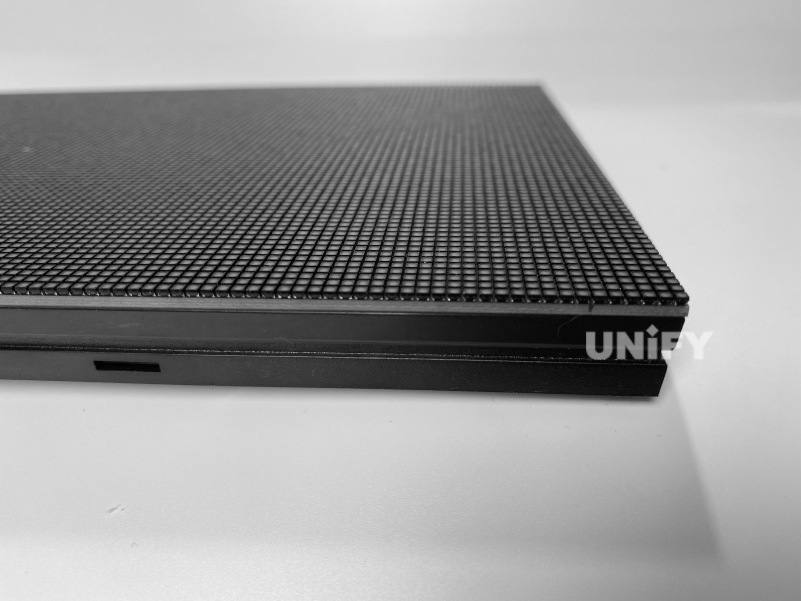

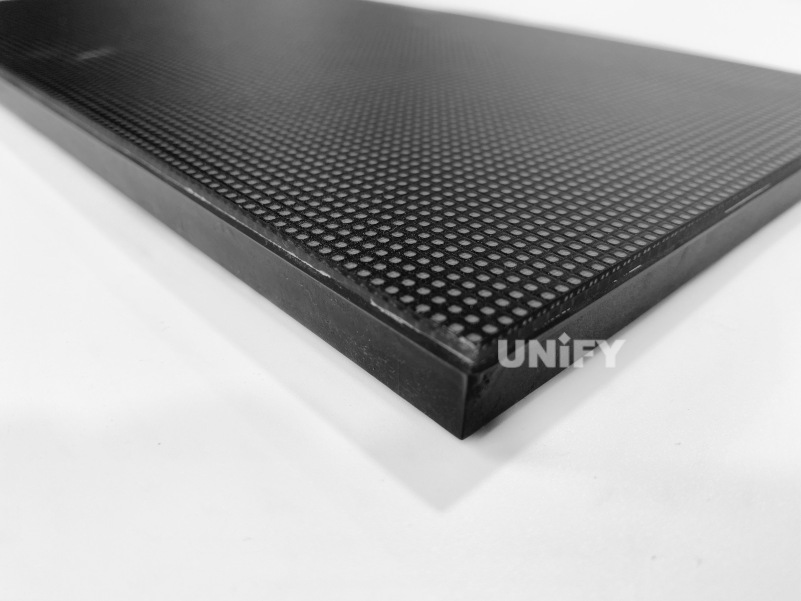

P1.8 LED Module Details
Unify LED module factory
Aging Test
All P1.8 LED display modules will undergo a 48-72 hour aging test after production. To detect whether the LED lamp beads have color cast and damage.
The aging test can detect the stability, brightness, color temperature and other performance of the LED module to ensure the long-term stable operation of the product and reduce the occurrence of failures.

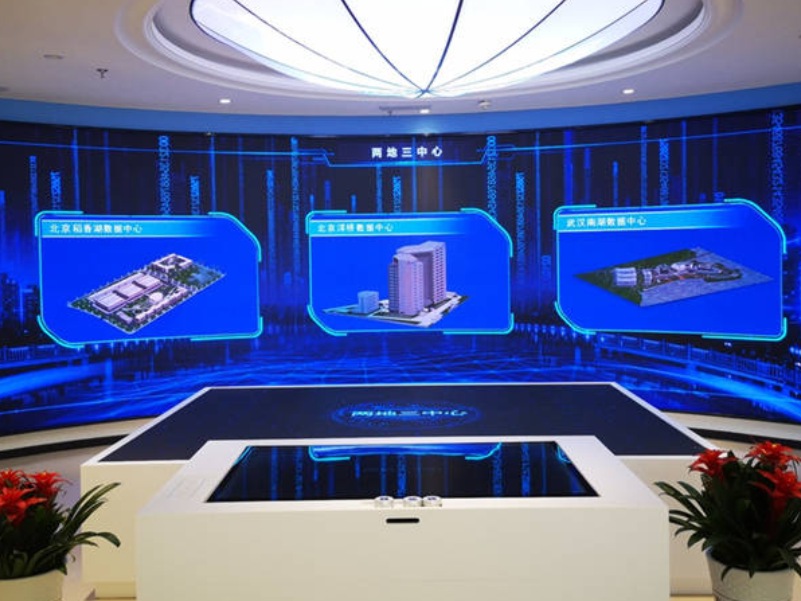

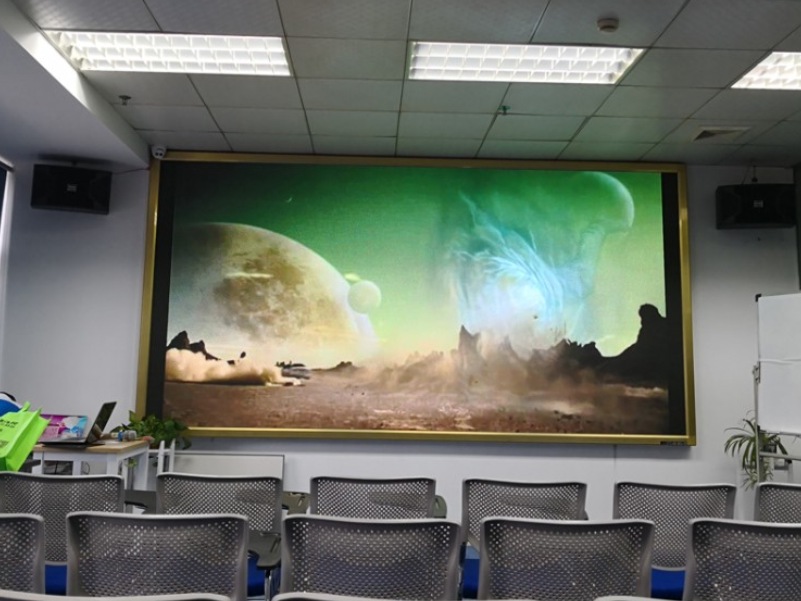

P1.8 LED Display Cases
As an indoor small-pitch LED display, P1.8 LED Screen is widely used in places with high requirements for close viewing and visual display, such as monitoring rooms, traffic control rooms, CCTV, large conference rooms, etc.
