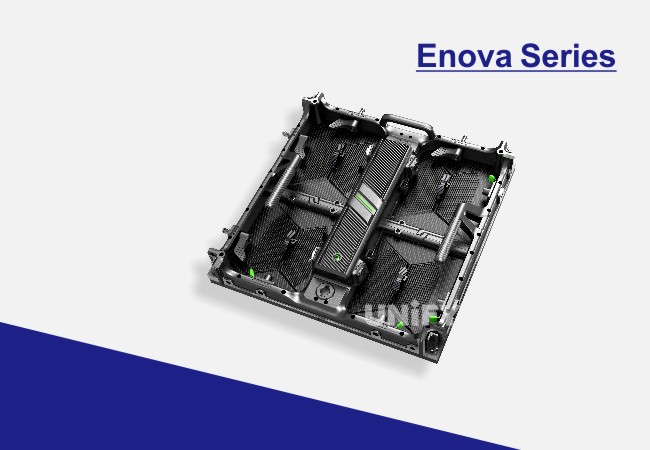

Stage LED Wall -Enova Series
- Cabinet weight:7.5kg
- Refresh rate: 3840HZ
- hard connection box
- Pixel pitch: P2.604 P2.97 P3.91 P4.8mm
- Material: strong die-casting-aluminum
- Advantage: Front and rear maintenance dual channels
- Application: stage show/events/weeding/party/concert

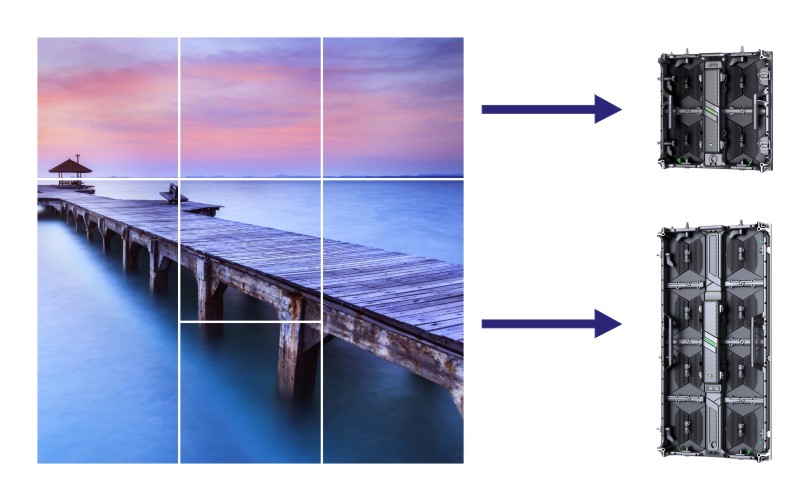

The LED screen size of Enova Series is available in 500*500mm and 500*1000mm. Choose the appropriate size according to the stage size and shape.
The two sizes can be used in combination to create a more unique shape while saving effort.
500*500mm Cabinet Size
500*1000mm Cabinet Size
P2.6 LED Module
P2.9 LED Module
P3.91 LED Module
P4.81 LED Module

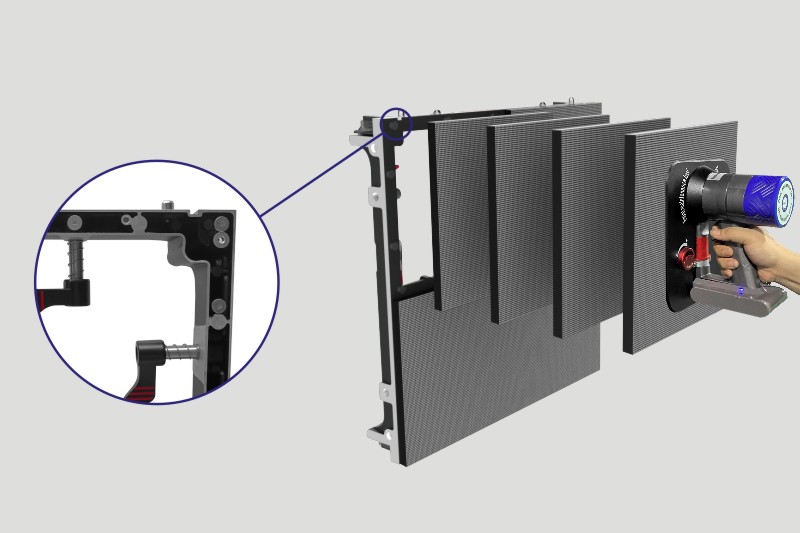

The Enova series of stage LED wall modules are 250*250mm in size and offer a variety of pixel pitch options, including P2.6, P2.9, P3.91 and P4.81.
These modules are highly compatible, allowing modules with different pixel pitches to be used interchangeably, greatly reducing the cost of upgrading and replacing the screen pixel pitch, as the cabinets can be shared.

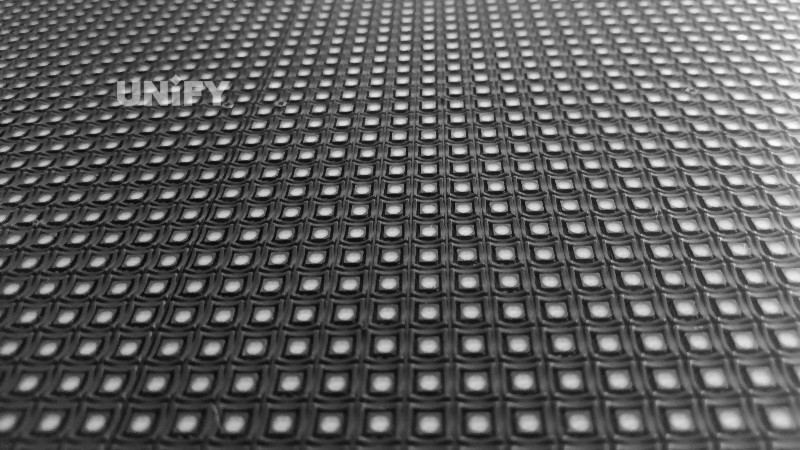

Stage LED Wall Module
The pixel pitch is P2.6, P2.976, P3.91, P4.81. It meets the needs of various indoor and outdoor stage activities.

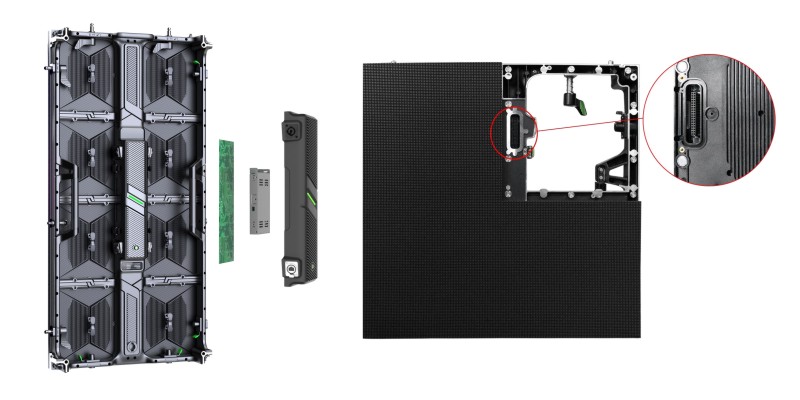

Hard Connection Stage LED Wall

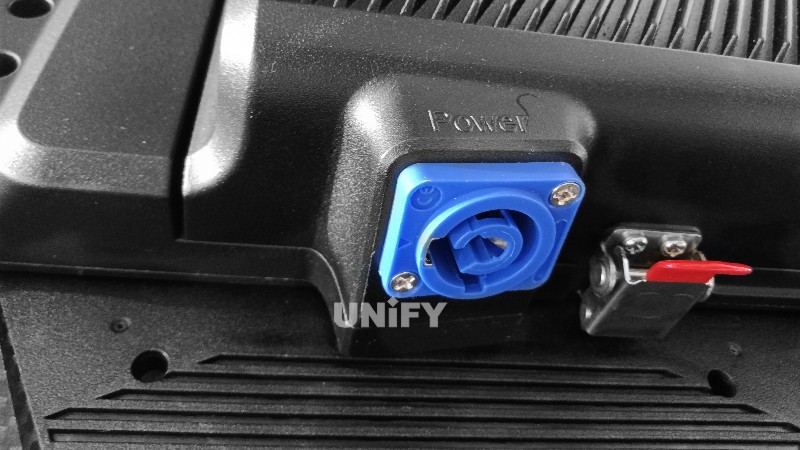

The power box supports disassembly and is equipped with quick release buckles for fast and efficient maintenance. Add fixed card slot design to ensure stable operation

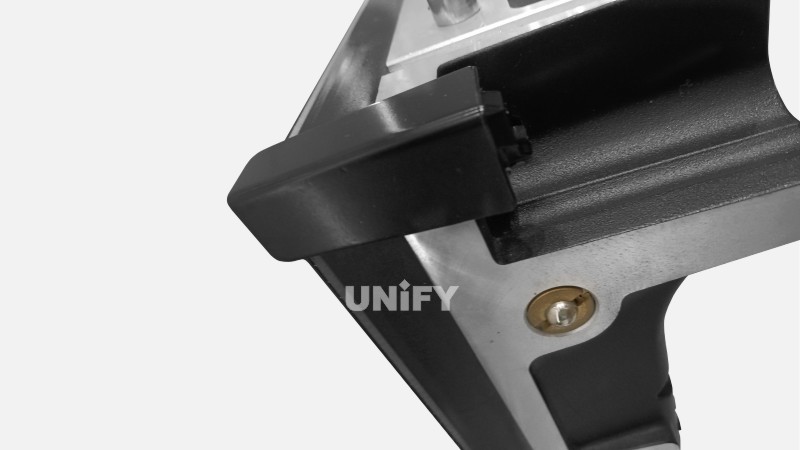

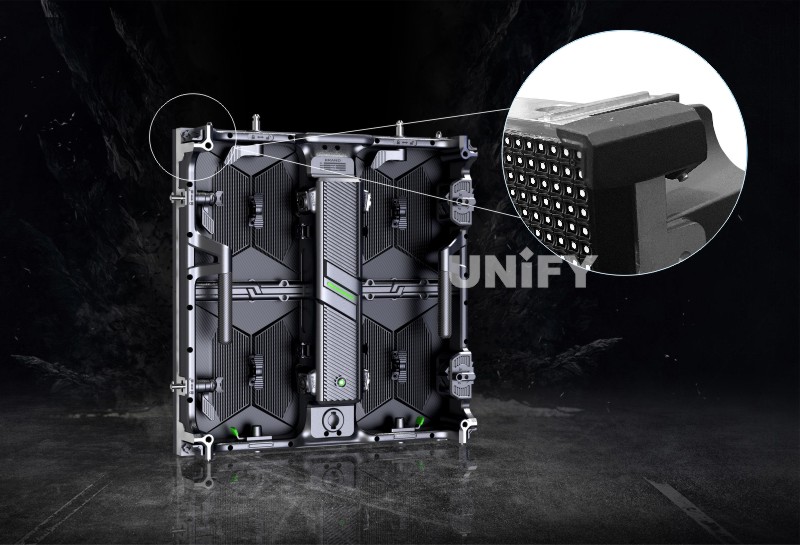

Screen corner protector
The four corners are equipped with foldable corner guards, combined with flip-up corner guards and raised edges to effectively protect sensitive pixel areas and prevent damage.
Seamless Stitching
The LED display is seamlessly spliced, the image is realistic, the video display is clear, and the picture quality is gorgeous.
Support curved screen
A single LED module can achieve a 45° layout, and splicing two pieces can form a 90° right angle, which is flexible for right-angle columnar LED display solutions.
Stage LED Wall Customization
Novastar, and Linsn control systems, nationstar and kinglight lamp beads, meanwell and G-power power supplies, MBI and Chipone IC cards. If you have specific needs, please feel free to ask.
Stage LED Wall Package
Equipped with universal wheels for easy movement and loading and unloading.
Image Gallery

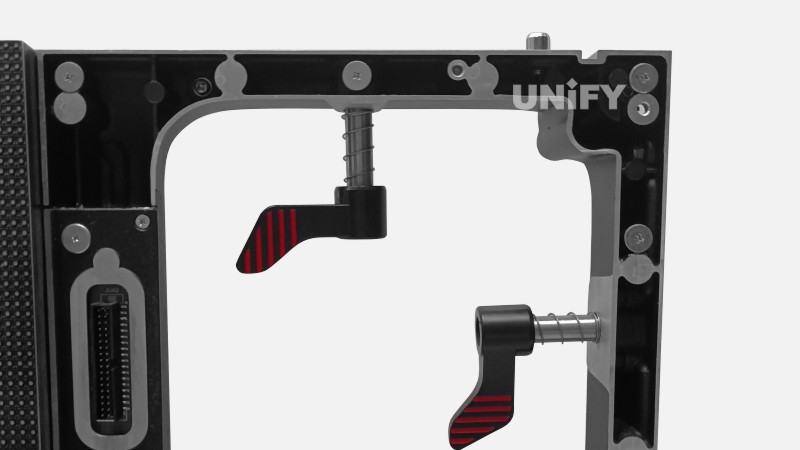

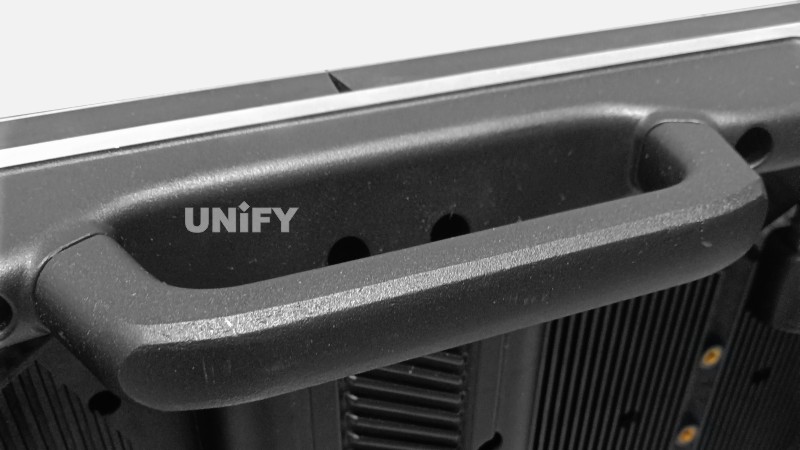

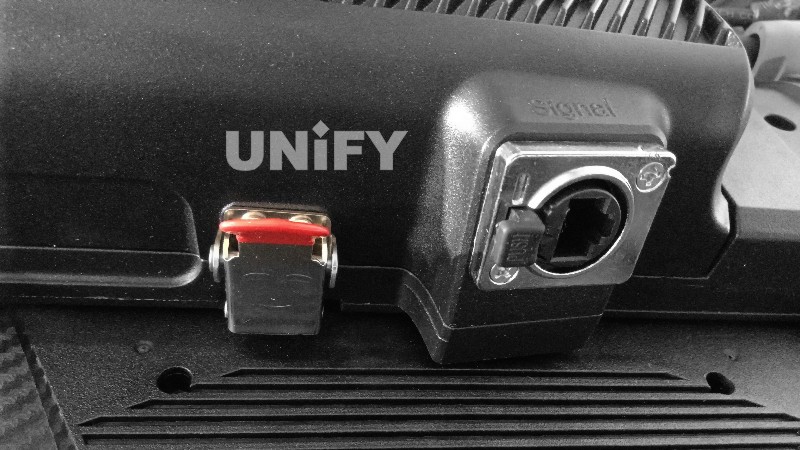

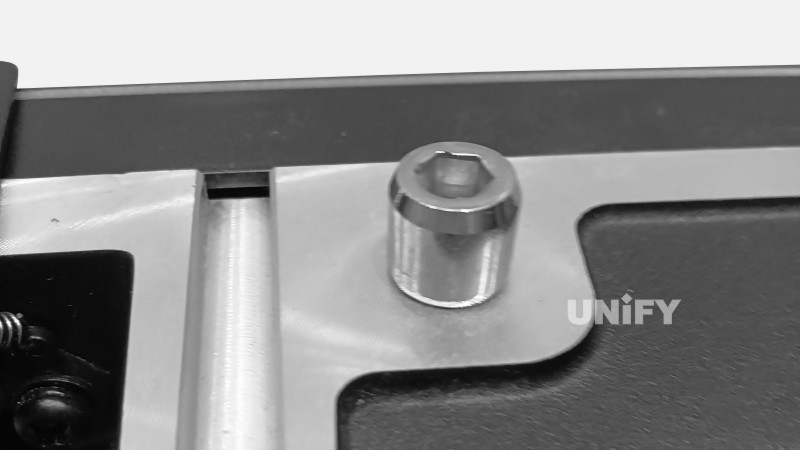

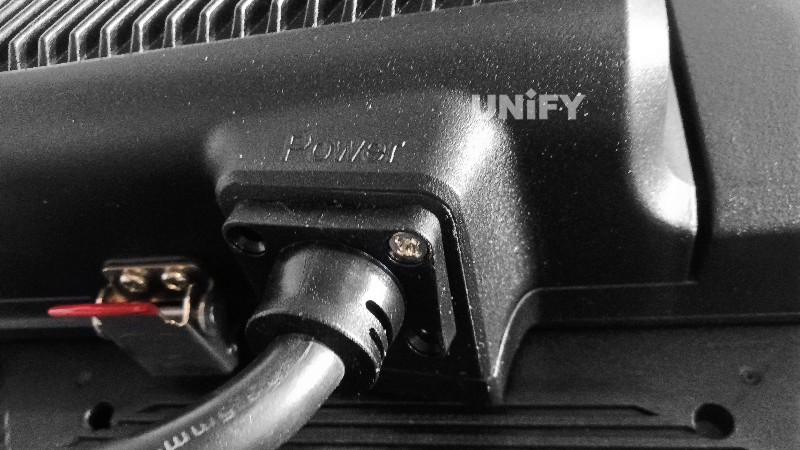

Stage LED Wall Cabinet Details
Video Center
How to Use or Maintain Enova Series?
Enova Series: Rental LED display for stages with P1.95-P4.8. Die-cast aluminum, quick setup
durable LED Enova: Die-cast aluminum + edge protectors shield pixels. IP65 outdoor/IP30 indoor
Stage rental Enova: Build flat/curved stages!Stand out with custom LED designs!
Unify LED® Enova:Perfect for concerts, events—any need, any scene!
Unify LED Enova: 0.5s fast lock install! 500x500mm panels (7.6kg), no flat cables—direct connections
Unify Enova Pro: 1000cd indoor brightness, 281T colors.Rental for concerts/exhibitions.

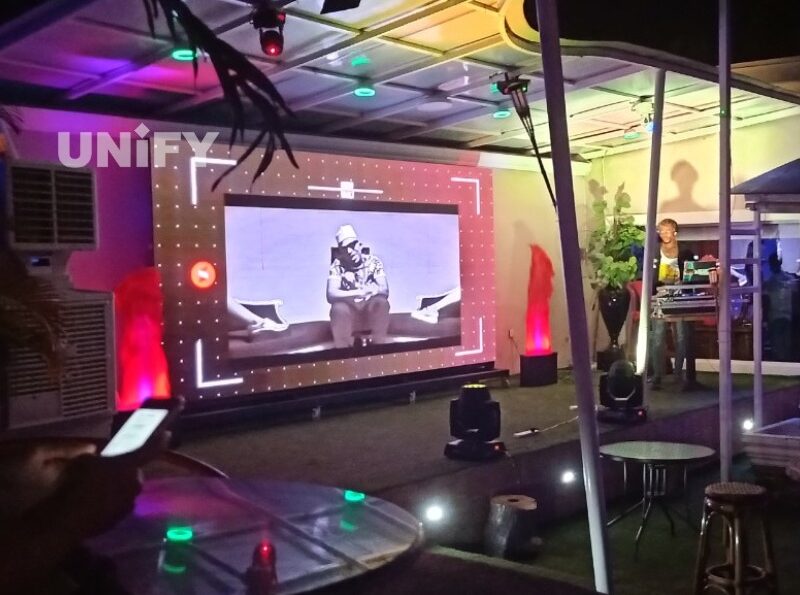

Stage LED Wall Cases of Enova
Specification
| Value | Indoor | Outdoor | |||
| Pixel Pitch | 2.604 | 2.976 | 3.91 | 3.91 | 4.81 |
| Brightness | 1000 | 1000 | 1000 | 4500 | 4500 |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD |
| Colors | 281trillion | 281trillion | 281trillion | 281trillion | 281trillion |
| Panel Pixel | 192*192 | 168*168 | 128*128 | 128*128 | 104*104 |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Pixel Matrix Per Sq.m | 147456 | 112896 | 65536 | 65536 | 43264 |
| View Angle (H/V) | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 |
| Power Comsuption(max/avg) | 550/200 | 480/170 | 400/150 | 600/200 | 580/180 |
| IP Rate | IP40/20 | IP40/20 | IP40/20 | IP65/43 | IP65/43 |
| Input Voltage (AC) | 110/240 | 110/240 | 110/240 | 110/240 | 110/240 |
| Panel Size(mm) | 500*1000*88 | 500*1000*88 | 500*1000*88 | 500*1000*88 | 500*1000*88 |
| Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Panel Weight(kgs) | 7.2 | 7.2 | 7.2 | 7.5 | 7.5 |
Recommend Stage LED Wall
Stage LED Display-R series
Stage LED Display-R Series Cabinet weight:7.5kg Refresh rate: 3840HZ Pixel pitch: P2.604 P2.97 P3.91 P4.8mm Multiple protection, all-round protection Wireless
Rental LED Panel -RS series
Rental LED Panel-RS Series Cabinet weight:7.5kg Refresh rate: 3840HZ hard connection box Pixel pitch: P2.604 P2.97 P3.91 P4.8mm Material: strong
Event LED Display- Enova pro Series
Event LED Display -Enova pro Series Cabinet weight:7.5kg Refresh rate: 3840HZ hard connection box Pixel pitch: P2.604 P2.97 P3.91 P4.8mm
Stage LED Wall- Enova Series
Stage LED Wall -Enova Series Cabinet weight:7.5kg Refresh rate: 3840HZ hard connection box Pixel pitch: P2.604 P2.97 P3.91 P4.8mm Material:
A comprehensive analysis of the Enova stage LED wall
In modern stage performances and event settings, visual presentation is no longer just a “background”, but has become a core element in shaping the on-site atmosphere and guiding the audience’s emotions. As the core equipment of this visual transformation, stage LED wall, or “stage LED screen”, is widely used in various concerts, press conferences, art festivals and corporate activities.
It completely subverts the traditional stage design’s reliance on lighting and props through its high-definition display, dynamic images and flexible splicing, making the stage setting from static to dynamic, from single to multiple.
Compared with traditional projection screens or printed background cloths, stage LED wall has higher brightness, wider viewing angle and better image expression.
Whether in a dim theater or a bright outdoor stage, it can accurately restore video content and visual effects to ensure that every audience can get an immersive experience.
In addition, stage LED screens usually adopt a modular design, which is fast to install and flexible to combine, and can be customized according to the size of the stage and creative needs.
For this reason, stage LED display screens are gradually becoming a standard choice for creating shocking visual effects and improving stage expression.
1. Enova series stage LED wall
Among the many stage LED large screen solutions, the Enova series stage LED wall has won wide favor in the stage performance, event site and rental industry for its excellent performance and flexible application.
This series of products is designed for frequent disassembly and multi-scene applications, perfectly meeting various professional needs from small indoor stages to large outdoor concerts.
Whether it is dynamic image display, special effect superposition, or real-time signal broadcasting, the Enova series can create a very impactful stage visual effect with stable, bright, and high-definition picture performance.
One of the highlights of the Enova series is that it has done a very good balance between portability and structural stability.
Each LED screen box is only 7.5 kg, made of high-strength die-cast aluminum, which is both light and strong, and the installation speed is fast, and the splicing is also seamless, so that the time for stage layout can be saved a lot.
This makes it particularly suitable for stage equipment rental companies, high-frequency usage scenarios and mobile performance teams.
In terms of visual performance, the Enova series stage LED screen supports HDR high dynamic display, high refresh rate and high contrast, restoring real and vivid color levels, and injecting unlimited creativity into the performance.
In addition, the Enova series has many pixel pitches, such as P2.6, P2.97, P3.91, etc., which can meet different viewing distances and clarity requirements. Moreover, it also supports a variety of control systems, which is really good in terms of compatibility and scalability.
For this reason, the Enova series stage LED wall is not only the “hardware foundation” of stage scenery, but also the key force leading the upgrade of on-site performance.
Why Choose the Enova Series Stage LED Wall?
In the current competitive stage design and LED display rental market, the Enova series of stage LED walls is really great, especially in terms of performance and innovative technology.
Take ordinary LED stage screens for example, the Enova series is much stronger in structure, visual effects, installation speed, and even long-term reliability.
Here’s a direct comparison between the Enova series and typical LED stage screens:
| Feature / Spec | Enova Series Stage LED Wall | Standard LED Stage Screen |
|---|---|---|
| Cabinet Weight | Ultra-light, approx. 7.5kg | Heavier, typically 10–12kg |
| Installation Structure | Fast-lock system, tool-free assembly | Basic screw/clip system, time-consuming |
| Display Performance | High refresh rate (≥3840Hz), HDR support | Lower refresh (<1920Hz), image flicker |
| Splicing Flexibility | Supports curved (inner/outer), 90°, stacking | Limited to flat configurations |
| Pixel Pitch Options | P2.6, P2.97, P3.91 available | Fewer models, less flexibility |
| Maintenance | Front and rear access supported | Mostly rear access, space-consuming |
| System Compatibility | Works with NovaStar, Colorlight, etc. | Compatibility varies, less expandable |
| Recommended Scenarios | Touring, rentals, outdoor events, concerts | Small events, fixed installations |
| Build Precision | CNC aluminum frame, ultra-precise seams | Welded frame, less accuracy |
| Stability & Lifespan | High-quality LEDs and drivers, stable | Varies by batch, prone to aging |
From the above picture, the Enova series LED display has found a good balance in terms of portability, visual effects and versatility. Some of its advanced features, such as high refresh rate, HDR display, and support for curved or stacked layouts, make it an ideal choice for stage applications that require vitality and impact.
The screen has dual maintenance channels and a modular structure, ensuring efficient and reliable installation, operation and maintenance under tight production time.
For event professionals who need efficiency and do not want to compromise on quality, the Enova series of stage LED screens is a reliable choice, whether you are doing a tour, brand event or corporate live broadcast.
Key parameters to pay attention to when selecting stage LED wall
As the requirements for visual effects and system stability at performance sites continue to increase, how to scientifically select a high-quality stage LED wall has become a core element that stage planners and rental companies must master.
The following are several key parameters that should be focused on when purchasing or renting high-definition LED display screens:
Selection logic of dot pitch (such as P2.6 / P2.97 / P3.91)
The dot pitch refers to the center distance between LED pixels. The smaller the value, the higher the screen resolution and the more delicate the display effect.
P2.6 and P2.97: Suitable for indoor stages or TV studios for close viewing, supporting high-definition live broadcasts and high-dynamic content presentation;
P3.91: Taking into account clarity and cost-effectiveness, it is widely used in medium and large stages, commercial activities, outdoor stages and other scenes;
Reasonable selection of dot pitch can not only ensure image clarity, but also avoid budget waste, which is a key link in the selection of technical parameters for stage LED screens.
Grayscale level and color reproduction ability
High grayscale levels of 16bit and above can bring smoother color transitions and more realistic images.
In a stage environment with frequently changing lights, high-quality high-definition LED displays can maintain stable brightness and natural tones, effectively avoiding color blocks or jumps, thereby enhancing the atmosphere of the entire stage.
Control system compatibility and maintenance convenience
An excellent stage LED wall should be compatible with mainstream control systems (such as NovaStar, Colorlight), support multi-signal input and synchronous processing.
At the same time, the modular structure and front and rear maintenance design not only improve the stability of equipment operation, but also significantly reduce the maintenance cost in long-term use, especially suitable for LED rental scenarios and high-intensity touring projects.
A comprehensive evaluation of the above parameters can help stage designers and equipment purchasers select a stage LED wall that truly meets the needs of the project and create a more professional and shocking performance picture.
Enova series stage LED wall price
As a professional stage LED display, the price of Enova series usually consists of the following parts:
LED module and cabinet unit price: depending on the pixel pitch model (such as P2.6 / P2.97 / P3.91), the unit price fluctuates;
Control system and accessories: including sending card, receiving card, power supply, video processor, etc.;
Structural parts and mounting brackets: components required for hoisting/stacking/arc splicing;
Transportation and after-sales service: depending on the project location and delivery method;
Overall customization plan (optional): including system integration, image processing, customized curved surface structure and other services.
Core factors affecting the price of Enova series LED wall
Pixel Pitch
– P2.6 has high precision and is suitable for close viewing, and the price is slightly higher;
– P2.97 has a balanced price-performance ratio and is the main model commonly used for performances;
– P3.91 has a large viewing distance tolerance, suitable for outdoor or medium and long-distance scenes, and the unit price is relatively affordable.
Screen size and resolution
The larger the project area, the higher the total price; but bulk purchases can get better discounts;
The higher the resolution, the higher the control system requirements, and the corresponding cost increases.
Control system compatibility
Supports mainstream systems such as NovaStar and Colorlight, and customers can choose a more cost-effective or more powerful version;
Some customers choose HDR display and synchronous redundant control, which is slightly more expensive.
Future trends: intelligent and immersive evolution of stage LED wall
With the continuous development of technology, the function of stage LED wall is far more than “display”. It is gradually integrating XR virtual technology, interactive systems and intelligent remote control, evolving towards immersion, interactivity and system integration, bringing new changes to stage performances and visual creation.
XR virtual shooting and LED wall integration application
With the popularity of XR (extended reality) technology in movies and performances, immersive LED walls have become the core medium in virtual shooting environments.
Through high refresh, synchronization system and virtual camera tracking, LED stage background can be perfectly integrated with real scenery, and is widely used in virtual concerts, immersive dramas and XR music festivals.
Interactive LED large screen enhances audience participation
In the future, stage LED systems will adopt more interactive sensing technologies, such as infrared sensing, gesture recognition, real-time audience feedback interaction, etc., so that the stage is no longer a one-way communication, but an emotional bridge between the audience and the performers.
Interactive LED large screens have gradually landed in corporate activities, concerts and brand releases, forming a dual experience mode of “immersion + participation”.
Integration of intelligent system and remote stage control
With the support of the Internet of Things and 5G technology, the intelligent stage LED system has begun to have the capabilities of remote status monitoring, content linkage control, and partition synchronization scheduling.
Equipment operation and maintenance personnel can remotely control the LED wall through the background system to achieve brightness adjustment, content switching, fault warning and other operations, effectively improving management efficiency and reducing operation and maintenance costs.
In the future, stage LED wall will not only be a “stage background”, but also a core device of digital stage that integrates immersive display, real-time interaction and intelligent control, leading a new generation of visual performing arts.
Why choose Unify LED Enova instead of other brands?
Unify LED is a trusted Chinese LED display factory.
Enova is designed for the LED rental market, taking into account performance and portability;
Global customers are widely used in high-standard scenes such as tours, corporate annual meetings, TV shows, fashion shows, etc.;
Provide fast delivery + remote technical support to reduce project execution risks;
Support customized contract procurement/long-term rental/on-site service, and flexibly adapt to various stage projects.
Get exclusive quotes and sample demonstrations
If you have specific project needs, please contact us to get a one-to-one solution quote, we will provide:
CAD design drawings and point analysis;
Comparison of solutions under different sizes and budgets;
Free sample screen experience and case sharing;
Complete Enova series stage LED wall product manual and technical parameter table.
