Rental LED Display Module

Rental LED display modules are an important part of rental LED display screens. Through modular design, modules can be flexibly combined into display screens of various sizes and shapes to meet the display needs of different spaces.

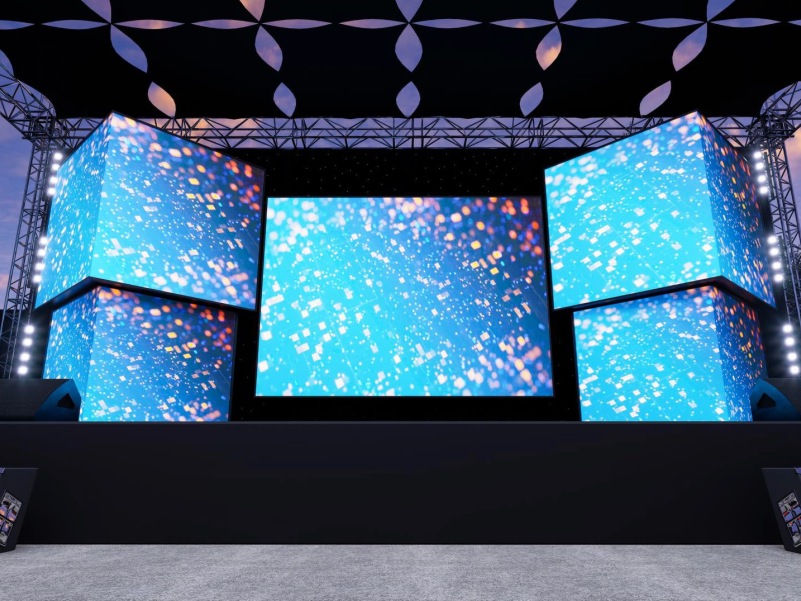

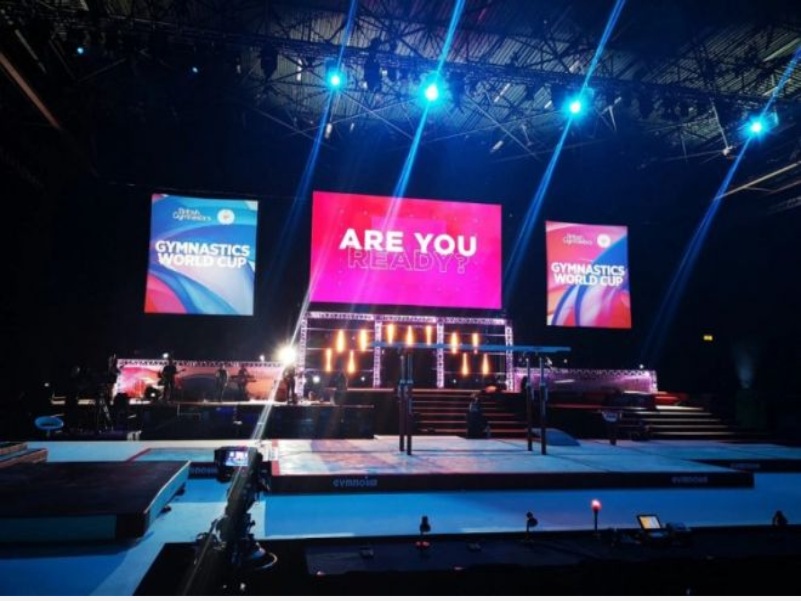

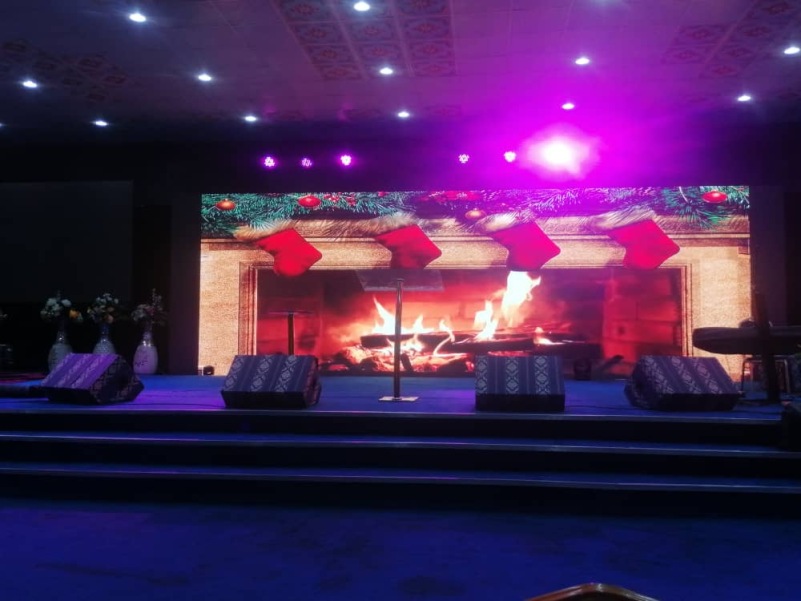

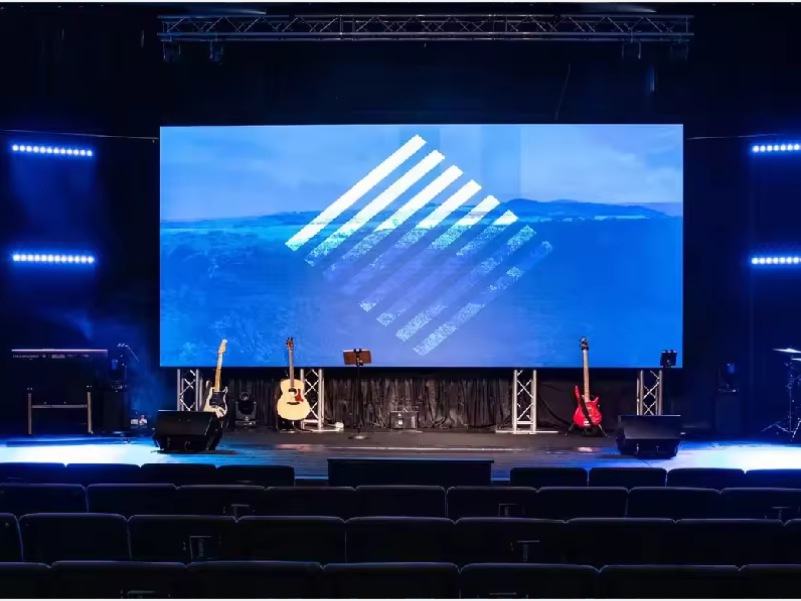

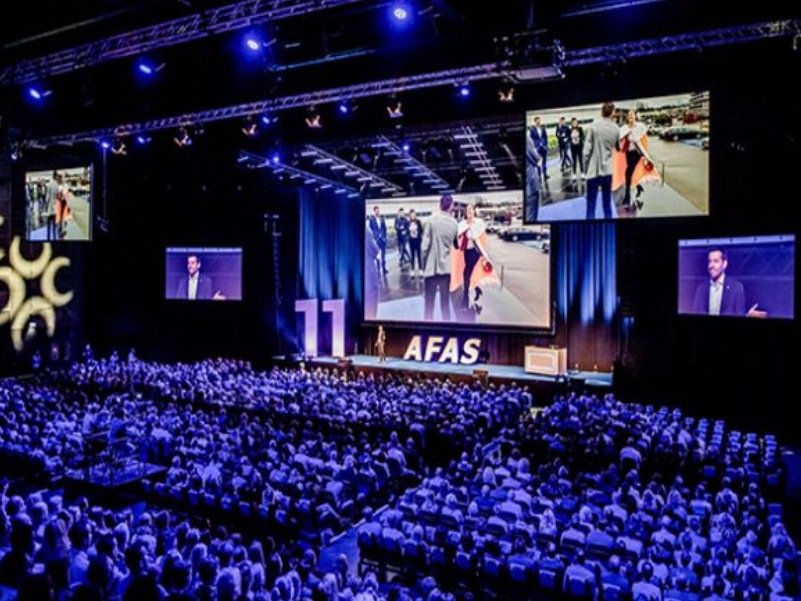

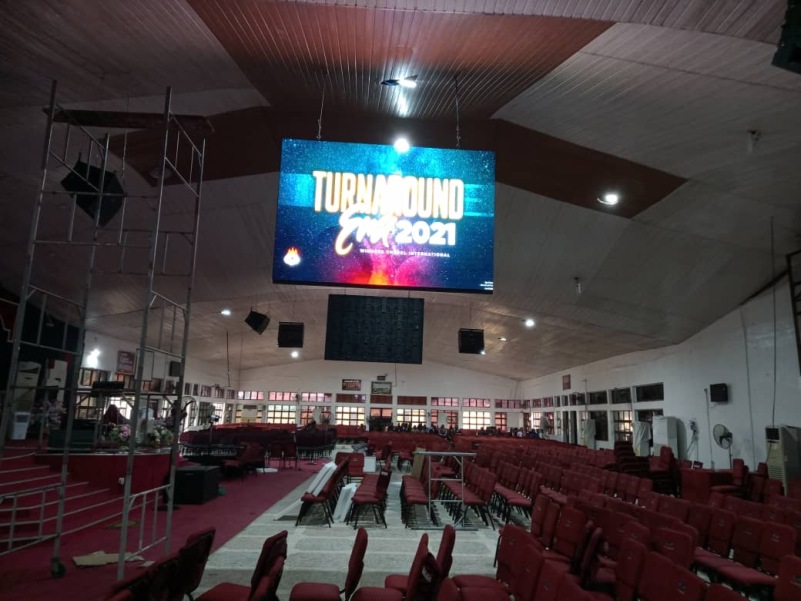

As a modern stage activity solution, modules are widely used in temporary commercial activities, concerts, weddings and other places.

Rental LED Module Size

There are many options for the module size of rental LED screens to meet different installation needs and site requirements.

Common module sizes include 250mm x 250mm, which is the most commonly used standard size of stage display screens, which can be spliced into 500mm x 500mm and 500mm x 1000mm stage LED display cabinets, suitable for stage, conference and exhibition occasions, with good splicing effect and stability.

320mm x 160mm, widely used in medium-sized rental screens, suitable for shopping malls, airports and other places. According to project requirements, the module size of rental LED screens can be flexibly spliced to meet different display effects and installation requirements.

Core Parts of rental LED module

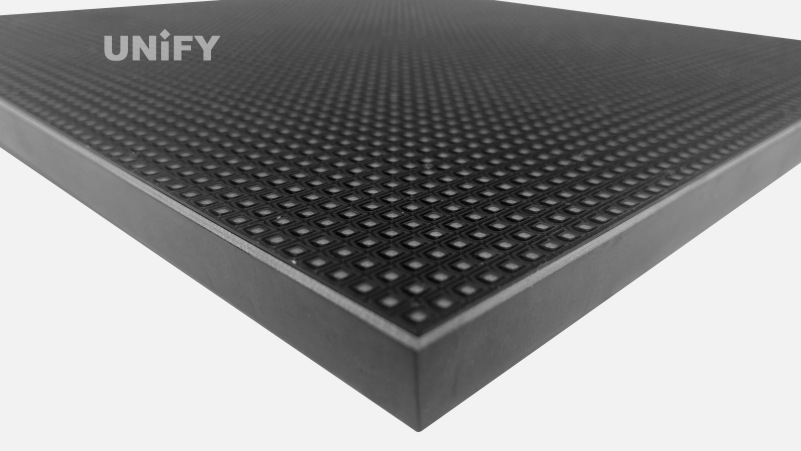

LED Lamp Beads

LED lamp beads are a very important component in the LED module, which will affect the brightness and color of the display. Choosing a good SMD packaged lamp bead can make the light more uniform and the brightness better, plus it is durable, ensuring that the display effect is quite excellent.

Click Here

Driver IC

The driver IC is responsible for the switch of the lamp beads and the brightness adjustment to keep the picture stable. The efficient IC increases the refresh rate and contrast, making the image more delicate and smooth. Improving the performance of the driver IC is the key to achieving high-quality display.

Click Here

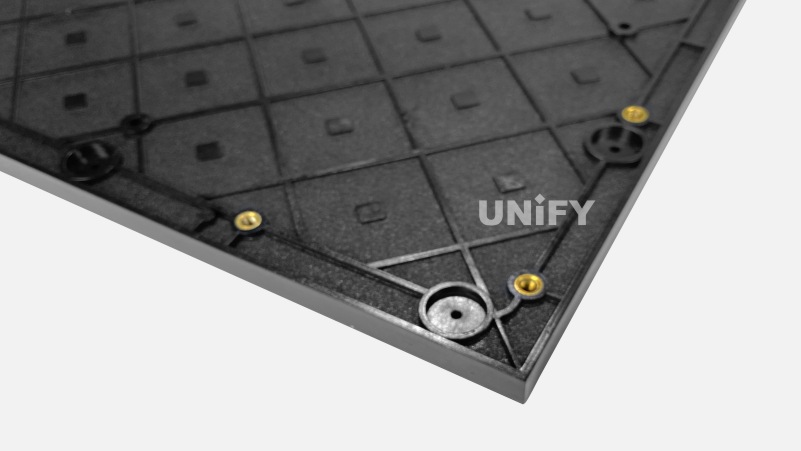

LED Module Mask

LED mask is used to fix and protect LED modules, so that lamp beads will not collide with each other, ensuring stability and long-term use. It effectively prevents external damage and maintains performa

Click Here

Printed Circuit Board

The PCB circuit board is actually the key to stringing together all the electronic components to ensure that the module can rotate normally. A reliable PCB needs to have a good heat dissipation mechanism and moisture resistance to keep the circuit in a stable state.

Click Here

Rental LED Modules

P2.9 LED Module

P2.9 LED Module Pixel Pitch: 2.976mm Module Size: 250*250mm RGB Full color for indor& outdoor use Module Resolution: 84*84 Lamp brand: Nationstar/Kinglight/Rayshine Refresh rate: 3840hz

P2.6 LED Module

Rental P2.6 LED Display Module P2.6 LED module is an rental LED module with a distance between two LED lamp beads (pixel pitch) of 2.604

P4.81 LED Module

Rental P4.81 LED Display Module P4.81 LED module is an rental LED module with a distance between two LED lamp beads (pixel pitch) of 4.81

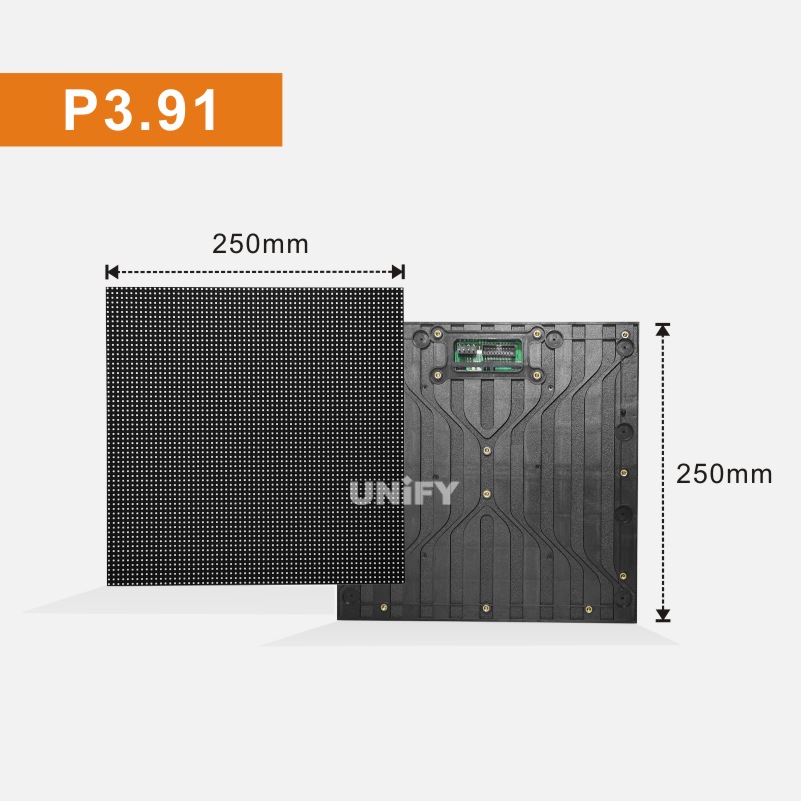

P3.91 LED Module

P3.91 Indoor LED Module Pixel Pitch: 3.91mm Module Size: 250*250mm RGB Full color for stage use Module Resolution: 64*64 Lamp brand: Nationstar/Kinglight Control System: Novastar

Key Features

High-definition display

It can provide detailed and clear images, especially suitable for use at close range and precise display.

Energy saving

Through low power design, energy consumption and carbon emissions can be reduced, and some money can be saved during normal use.

Flexible combination

This modular design allows on-demand splicing, can adapt to different sizes and proportions, and fully meets the needs of diversified scenarios.

Easy to install and maintain

Supports front/rear maintenance, convenient disassembly and assembly, and greatly saves labor and time costs.

Strong stability

Improve the smoothness and visual impact of the picture, and meet the requirements of high-standard visual experience, such as meetings, live broadcasts, performances and other scenes.

High refresh rate

Use good electronic components and heat dissipation design to ensure that the equipment can work stably for a long time and reduce the frequency of failures and maintenance.

250x250mm Series Outdoor LED Module

Pixel Pitch	LED	Module Resolution	LED Type	Brightness(Nits)	Module Size（MM）	Driving Mode
P2.976mm	SMD1415	84*84	SMD 3in1	>4500	250*250	1/21Scan
P3.91mm	SMD1921	64*64	SMD 3in1	>4500	250*250	1/16Scan
P4.81mm	SMD1921	52*52	SMD 3in1	>4500	250*250	1/13Scan
