Outdoor LED Module

Outdoor LED Display Module

Outdoor LED display modules are an important part of outdoor LED display . It has various sizes and spacings to meet different outdoor needs, such as column advertising, commercial promotion, etc. Some types of modules can be assembled into a large screen independently or used with a cabinet structure, depending on your budget and application scenario.

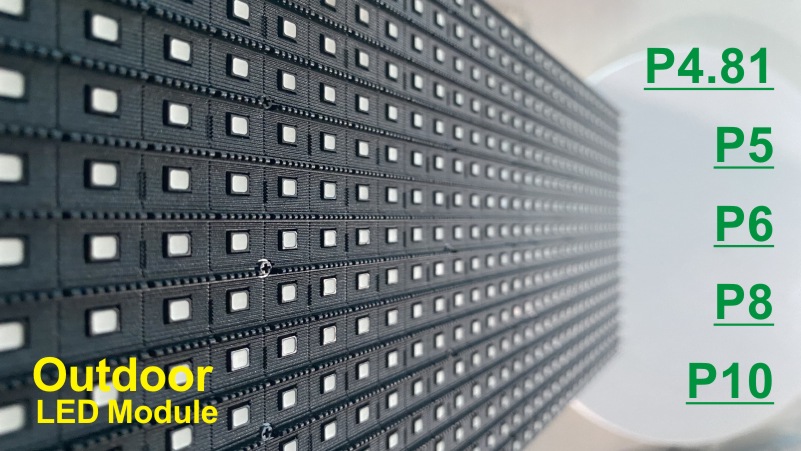

Outdoor LED Module

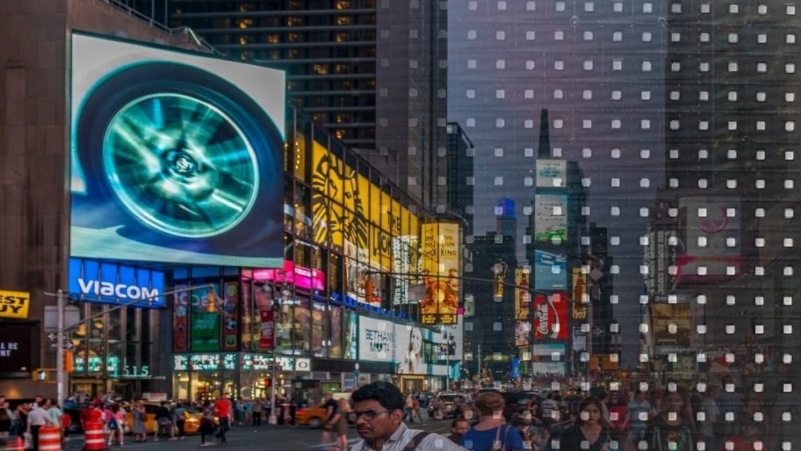

Outdoor LED modules are the protagonists of today’s display technology, commonly seen in advertising, transportation and public places. They have high definition, high contrast and high brightness, and can provide clear views even on sunny days. Each module is composed of LED lamp beads, chips and a sturdy shell.

A single module can display images, and countless modules can be assembled into a super-large seamless LED display. Modularity not only makes installation and maintenance simple, but also can be flexibly matched to meet various needs, bringing efficient and economical digital display solutions to advertisers and urban planners.

Outdoor LED Module Size

256*128mm

For Small-Pitch LED Display

Click Here

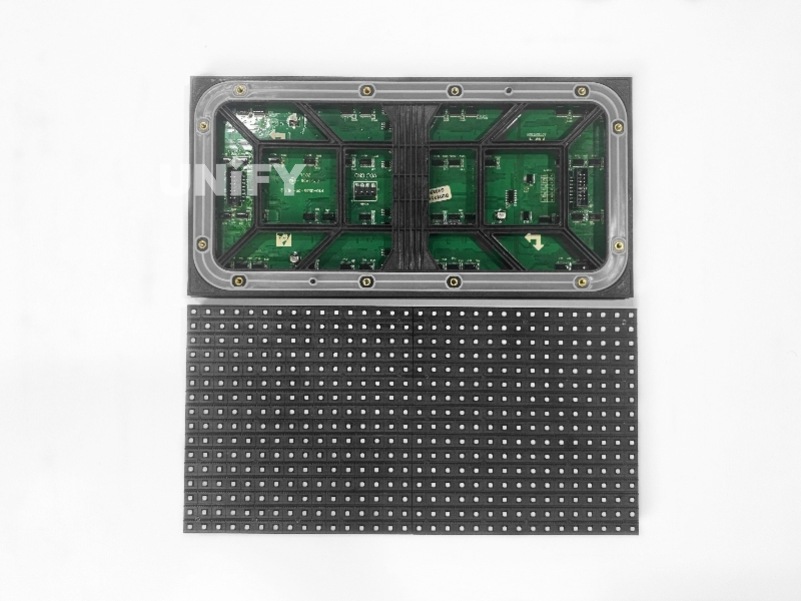

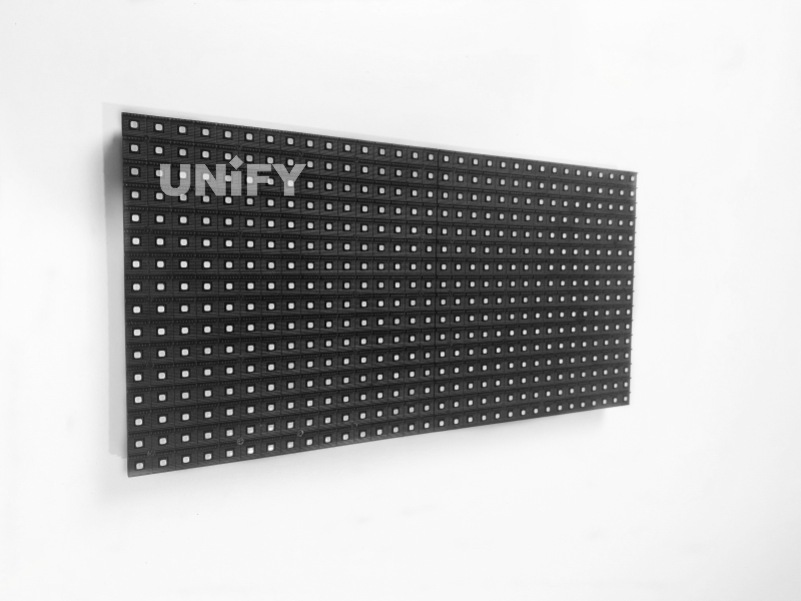

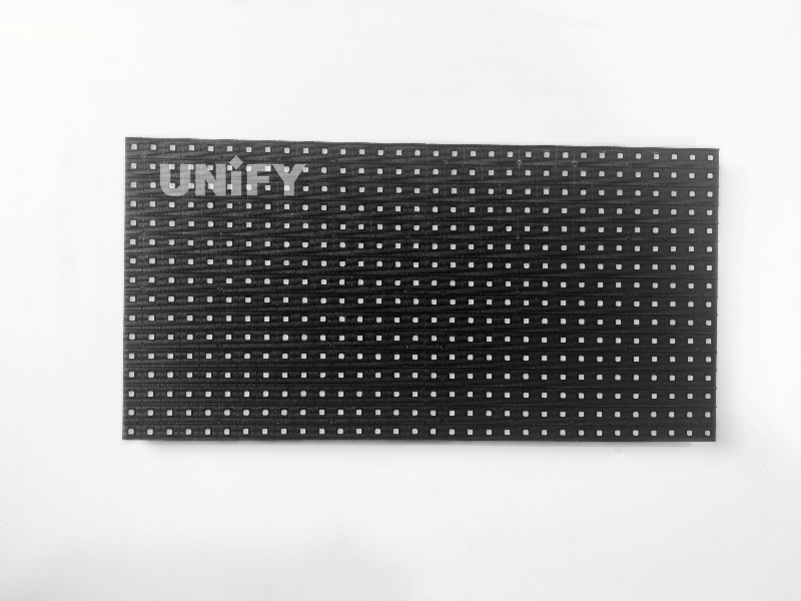

320*160mm

The most common outdoor module size

Click Here

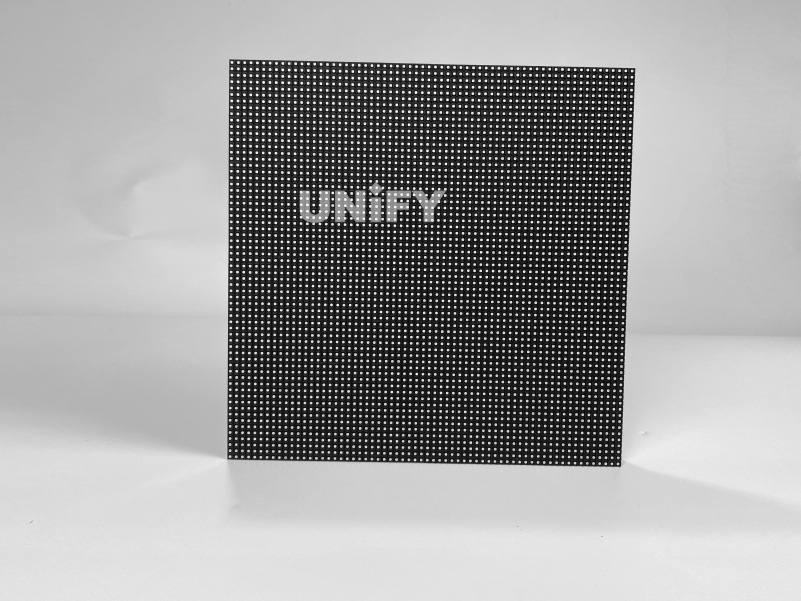

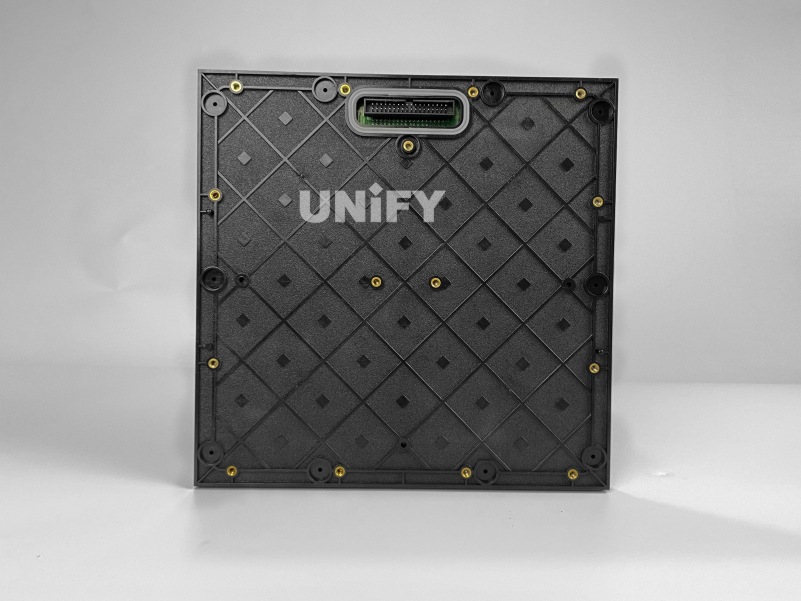

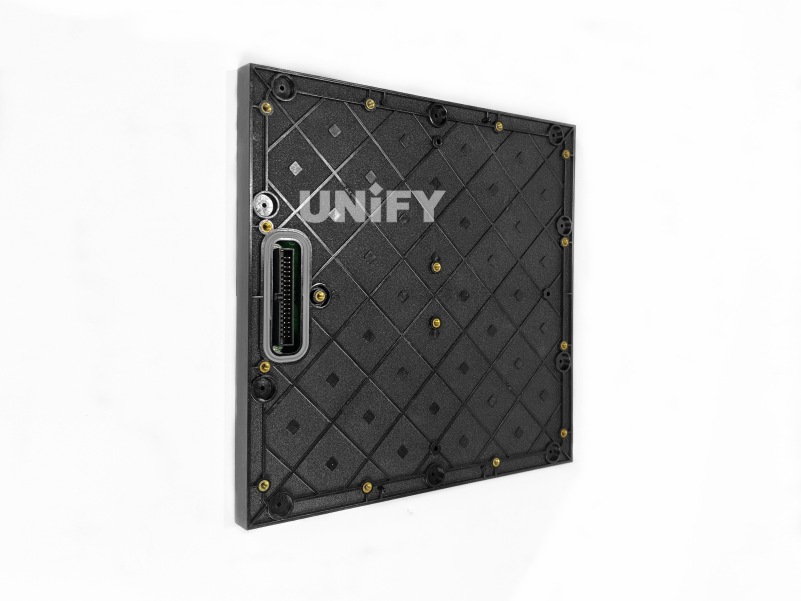

250*250mm

For Outoor Rental LED Display

Click Here

Products

Stage LED Display-R series

Stage LED Display-R Series Cabinet weight:7.5kg Refresh rate: 3840HZ Pixel pitch: P2.604 P2.97 P3.91 P4.8mm

Rental LED Panel -RS series

Rental LED Panel-RS Series Cabinet weight:7.5kg Refresh rate: 3840HZ hard connection box Pixel pitch: P2.604

Indoor LED Wall – Ulight Series

Indoor LED Wall -Ulight Series -P0.9/1.25/P1.5/P1.8/P2/P2.5mm -Panel size 250*500mm, Module size 250*250mm -Ultra-lightweight and Space-saving

Event LED Display- Enova pro Series

Event LED Display -Enova pro Series Cabinet weight:7.5kg Refresh rate: 3840HZ hard connection box Pixel

Stage LED Wall- Enova Series

Stage LED Wall -Enova Series Cabinet weight:7.5kg Refresh rate: 3840HZ hard connection box Pixel pitch:

Front Service LED Screen EDI Series

Front Service LED Screen-EDI Series -P1.25/P1.5/P1.8/P2/P2.5/P3mm -Panel size 640*480mm, Module size 320*160mm -Ultra-lightweight and Space-saving

Indoor Fixed Screen- H Series

Indoor Fixed Screen -H Series High resolution & vibrant colors Seamless splicing & ultra-thin design

Stage LED Screen- Magic Series

Stage LED Screen-Magic Series -P2.6/P2.976/P3.91/P4.81mm High-end Rental LED display for stage High resolution for indoor

LED Lamp Beads

LED lamp beads are the main light source of LED display screens. Most of them use full-color lamp beads with uniform color and low energy consumption. Excellent brands include nationstar, kinglight.

Click Here

LED Mask

LED mask is used to fix and protect LED modules, so that lamp beads will not collide with each other, ensuring stability and long-term use. It effectively prevents external damage and maintains performance.

Click Here

Printed Circuit Board

PCB board is a platform responsible for transmitting current and signals. All small components (LED, control chip, interface and power supply) rely on its efficient communication.

Click Here

Driver IC

The IC driver receives the signal from the control system and accurately controls the on and off and luminous intensity of the LED lamp beads. By accurately adjusting tens of thousands of pixels, the image display effect of the LED display is ensured to be optimal.

Click Here

Power Ports:

The designed power input and output ports enable the LED display to operate stably in any environment, are easy to plug and unplug, save space, and maintain a stable power supply.

Click Here

Signal Ports

The display module provides multiple interfaces such as HDMI and DVI to achieve high-quality data transmission and excellent image display.

Click Here

Key Features

High-definition

Provides high-resolution and delicate image display to ensure that the content is presented clearly and delicately, suitable for close-up viewing.

Energy saving

Adopts low-power design to reduce energy consumption, reduce long-term operating costs, and extend the service life of the display.

Modular design:

Flexible modular structure, you can freely splice screens of different sizes and shapes according to needs to meet a variety of display needs.

Wide viewing angle

High contrast and wide viewing angle design, no matter from which angle the image is viewed, it remains stable and clear, providing consistent visual effects.

Easy to install

The modular design makes installation and maintenance easier, reduces manpower and time costs, improves efficiency, and supports front and back maintenance.

Intelligent control system:

It can remotely manage content, adjust brightness, time switch, etc. It is very convenient to operate and can make work more efficient.

Accurate color reproduction:

Good LED lamp beads and driver ICs can accurately reproduce colors and show real and bright visual effects, which are especially suitable for commercial displays.

Waterproof design:

By using high-performance waterproof coatings and sealing designs, it can effectively isolate moisture and dust from invading the circuit

Long life

The use of high-quality materials and advanced processes can improve the durability of the equipment, reduce the failure rate, ensure the long-term operation of the display, and save maintenance expenses.

320x160mm Series Outdoor LED Module

Pixel Pitch	LED	Module Resolution	LED Type	Brightness(Nits)	Module Size（MM）	Driving Mode
P2.5mm	SMD1415	128*64	SMD 3in1	>5500	320*160	1/16Scan
P3.076mm	SMD1415	104*52	SMD 3in1	>5000	320*160	1/13Scan
P3.33mm	SMD1921	96*48	SMD 3in1	>5500	320*160	1/12Scan
P4mm	SMD1921	80*40	SMD 3in1	>5500	320*160	1/10Scan
P5mm	SMD1921	64*32	SMD 3in1	>5200	320*160	1/8Scan
P6.67mm	SMD3535	48*24	SMD 3in1	>5500	320*160	1/6Scan
P8mm	SMD3535	40*20	SMD 3in1	>5800	320*160	1/5Scan
P10mm	SMD3535	32*16	SMD 3in1	>6000	320*160	1/2Scan
P10mm	SMD3535	32*16	SMD 3in1	>4500	320*160	1/4Scan

250x250mm Series Outdoor LED Module

Pixel Pitch	LED	Module Resolution	LED Type	Brightness(Nits)	Module Size（MM）	Driving Mode
P2.976mm	SMD1415	84*84	SMD 3in1	>4500	250*250	1/21Scan
P3.91mm	SMD1921	64*64	SMD 3in1	>4500	250*250	1/16Scan
P4.81mm	SMD1921	52*52	SMD 3in1	>4500	250*250	1/13Scan

192*192mm Series Outdoor LED Display Panel

Pixel Pitch	LED	Module Resolution	LED Type	Brightness(Nits)	Module Size（MM）	Driving Mode
P3mm	1415	64*64	SMD 3in1	>5500	192*192	1/16Scan
P6mm	3535	32*32	SMD 3in1	>5500	192*192	1/8Scan
P6mm	3535	32*32	SMD 3in1	>6800	192*192	1/4Scan
