Fine Pitch LED Display
LED display screens are increasingly widely used, and people’s requirements for them are becoming more and more sophisticated, with higher resolution and better refresh rate contrast. Therefore, the emergence of indoor small-pitch LED display screens meets the needs of high-demand places. However, customers still have such questions;
Why can’t I see the details clearly during meetings on the LED screens I bought at a high price?
What is the difference between P1.25, P1.8, and P3?
What kind of LED display screen should I choose for my exhibition hall/conference room?
UnifyLED answers your questions and provides you with corresponding indoor LED display screen references
High-end Indoor LED Screen Ehonor Series
High-end Indoor LED Screen Ehonor -P1.25/P1.5/P1.8/P2/P2.5/P3mm -Panel size 480*360mm, Module size 320*160mm -Ultra-lightweight and Space-saving-Innovative Structural Design-Support Creative Shapes Horizontal
Front Service LED Screen EDI Series
Front Service LED Screen-EDI Series -P1.25/P1.5/P1.8/P2/P2.5/P3mm -Panel size 640*480mm, Module size 320*160mm -Ultra-lightweight and Space-saving -Wireless hard connection design -Support
Indoor LED Wall – Ulight Series

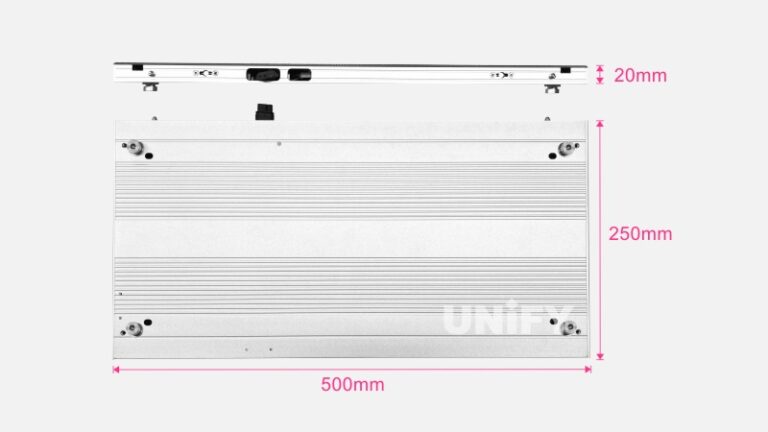

Indoor LED Wall -Ulight Series -P0.9/1.25/P1.5/P1.8/P2/P2.5mm -Panel size 250*500mm, Module size 250*250mm -Ultra-lightweight and Space-saving -Wireless hard connection design -Support
Indoor Fixed Screen- H Series
Indoor Fixed Screen -H Series High resolution & vibrant colors Seamless splicing & ultra-thin design Wide viewing angle & low
What is Indoor Fine Pitch LED Display
Indoor small-pitch LED display refers to an LED display with a pixel pitch (i.e. the distance between each LED lamp bead) less than or equal to P2.5 (i.e. 2.5 mm).
It is usually used in indoor environments where it is viewed at close range, such as shopping malls, conference rooms, exhibitions, stages and other places.
High resolution and clarity
Ultra-thin seamless splicing
Excellent color performance
Long service life

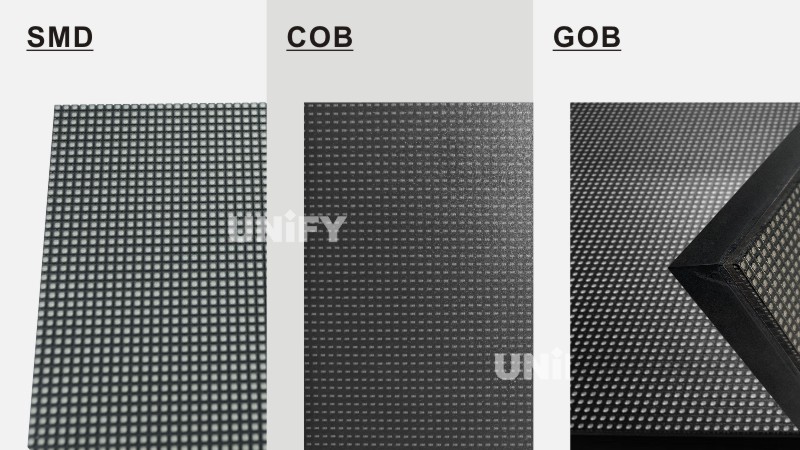

Packaging methods of fine pitch LED Screen
SMD package
COB
HOB
Small Pitch LED Display Application Scenarios

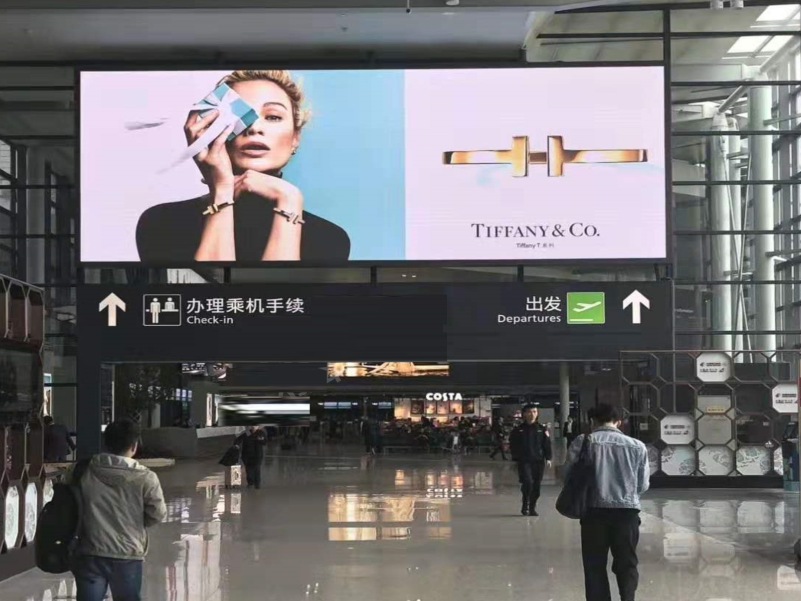

1. Mall and retail advertising
Solution:
P2.5/P1.8: Suitable for medium to close viewing distances, providing clear and delicate advertising effects to attract customers' attention.

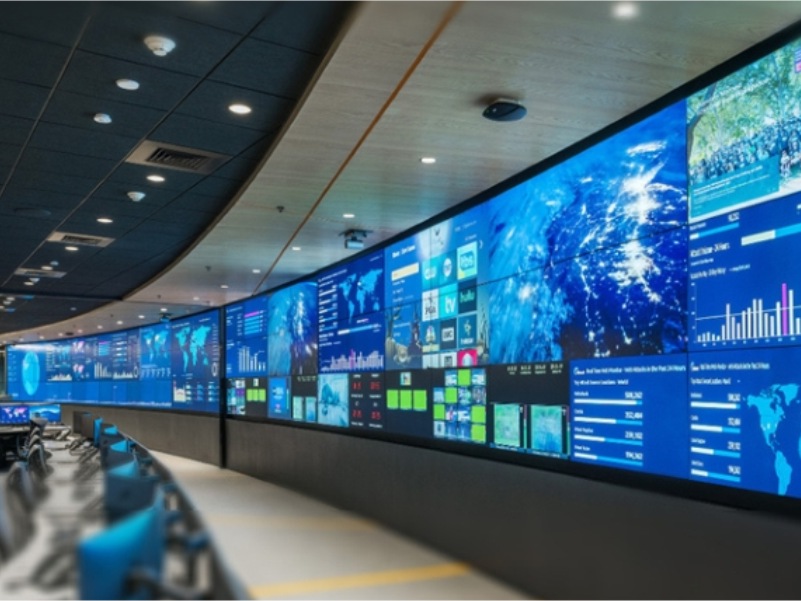

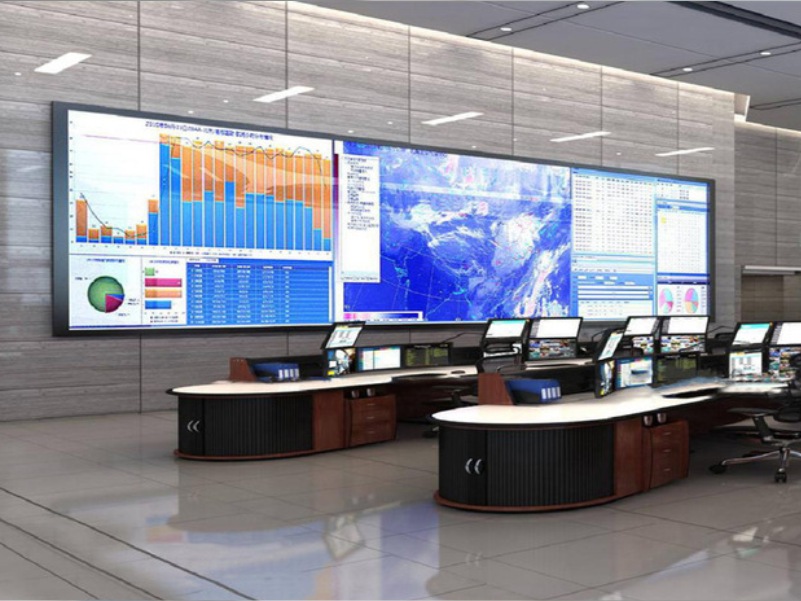

2. Control center and command center
Solution:
P2.5/P1.8: Provide high-resolution images and real-time video monitoring to help staff quickly obtain and analyze key information.
3.Education and Training
Solution:
P1.8/P1.5: suitable for classroom and training environments, providing clear teaching videos, interactive content display.

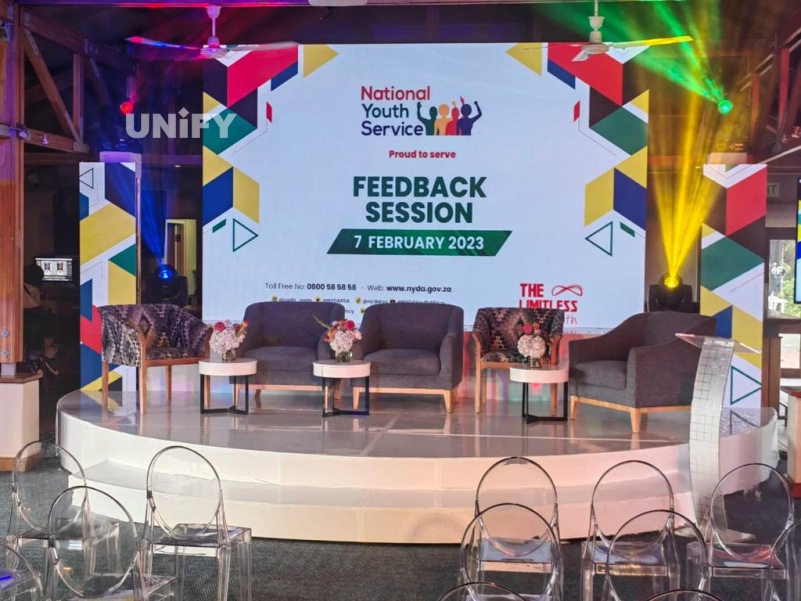

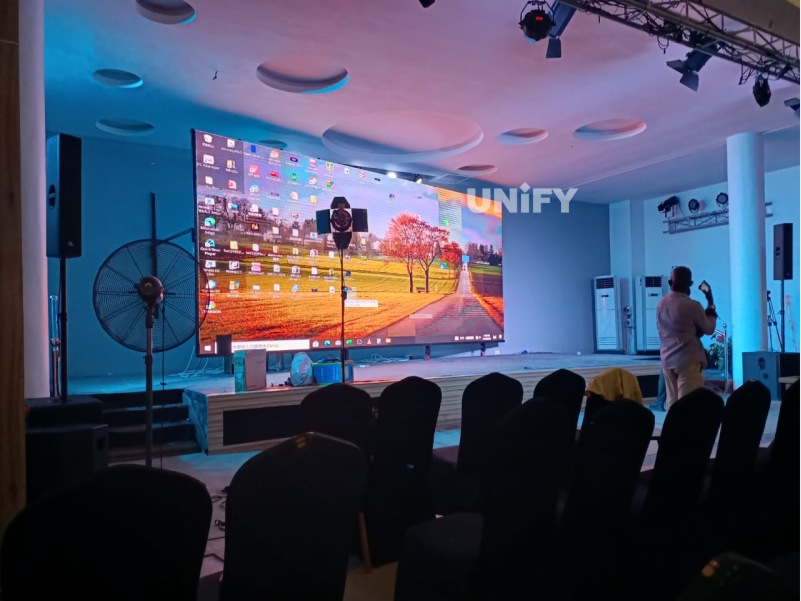

4. Exhibitions and conferences
Solution:
P1.8/P1.5: used to display fine product details and video content, suitable for large-screen display and high-definition video playback.
5. Corporate lobby and brand display
Solution:
P2.5/P1.8: Suitable for corporate reception areas or lobbies, providing high-quality brand display effects and leaving a deep impression on customers.
6. Hotel and reception lobby
Solution:
P2.5/P1.8: can display welcome information, meeting arrangements and brand videos to enhance the hotel's modern feel and customer experience.
Summary: In most scenarios, small-pitch P2.5 is sufficient, but based on budget, P1.8 and P1.5 can be selected. They are COB packages with better protection and color rendering.
Recommended small pitch LED display
High-end Indoor LED Screen-Ehonor
- P1.5/ P1.8/ P2.5 /P3

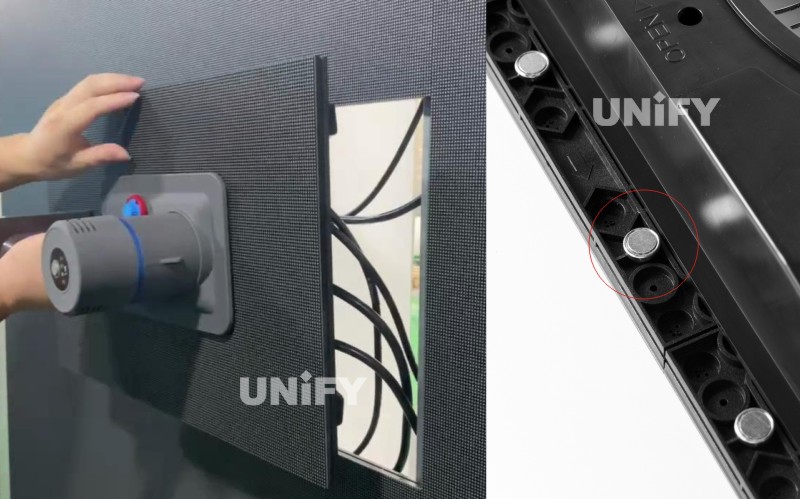

- 16 strong magnets per panel
- Support posting your brand logo
- High-definition display, bright colors, seamless splicing
The self-developed screen ensures high-definition and vivid colors while reducing costs. Currently, it has the highest sales volume and is widely used in churches, shopping malls, clubs, etc.

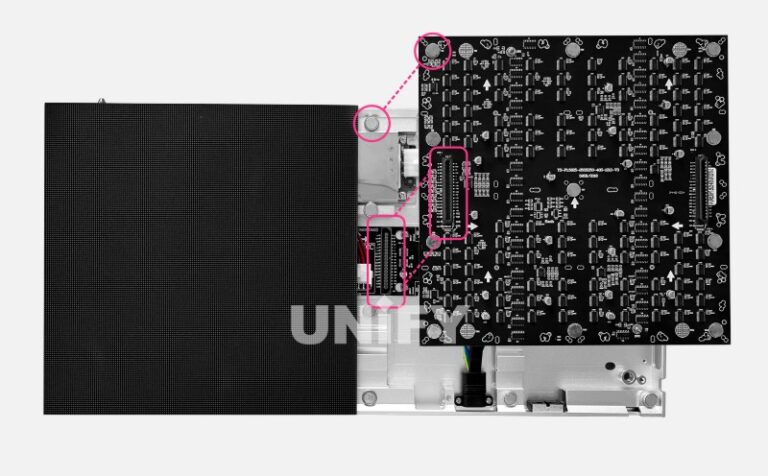

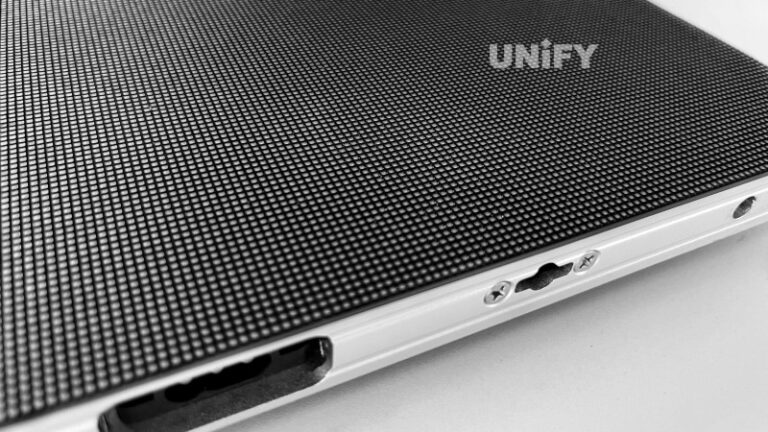

Ultra-thin Indoor LED Wall-Ulight

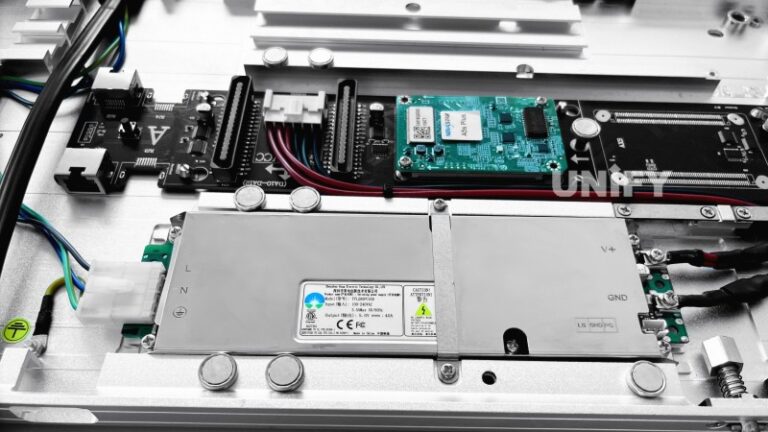

- Ultra-thin magnetic module, full front maintenance
- Lightweight cabinet, adaptable to a variety of venue structures
- High refresh rate and accurate color reproduction
- True seamless and black borderless, full picture presentation
- COB packaging, anti-collision and wear-resistant, safer to use
Fine Pitch LED Display Solutions

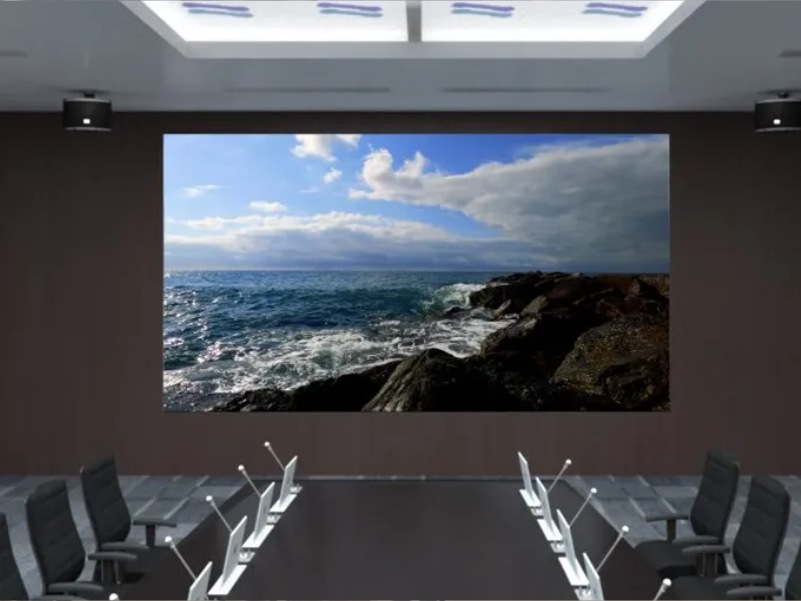

LED Screen for Conference Room solution
Conference room LED Display Unify delivers tailored LED display solutions for meeting rooms — clear visuals, smooth integration, and flexible
Home Theater Display Screen
Home Theater Display Screen Unify LED is dedicated to designing and producing innovative LED display solutions, delivering stable performance, customized
3D LED Billboard
3D LED Billboard Unify LED is a factory focusing on the R&D and manufacturing of high-quality LED displays, committed to
LED Display for Shopping Mall
Shopping Mall LED Screen Power your mall with Unify’s high-performance LED displays—designed to elevate customer experience, boost revenue, and bring
Fine Pitch LED Display Knowledge Encyclopedia
Table of Contents
The cost-effectiveness analysis of small-pitch LED display
Because of its high resolution, clarity and long service life, it has become a popular choice for indoor advertising, display and control center. However, when investing, many people will consider the cost-effectiveness, which simply means whether the performance is worth the price. Next, I will talk to you about the cost-effectiveness of small-pitch LED display.
First, let’s talk about its initial investment and long-term benefits.
The investment of small-pitch LED display is relatively high at the beginning, mainly because of its display technology and customized design. But it has a long service life (can exceed 50,000 hours), and it is power-saving and has low maintenance costs.
In other words, in the long run, it is much more cost-effective than traditional display devices (such as LCD or projectors).
Maintenance and operating costs.
The small-pitch LED display has a modular design, which is relatively simple to maintain and troubleshoot, and it is more convenient to repair. If it breaks, you only need to replace a module, which is not expensive.
And it consumes less power, and it can save a lot of electricity bills over a long period of time, which further improves the cost-effectiveness.
Return on investment.
Although the initial investment is relatively high, the small pitch LED display can bring users a higher return on investment because it can be used for a long time and has low maintenance costs.
Especially in the advertising and retail industries, its brightness and clarity can attract more customers, thereby increasing the revenue of merchants.
Installation methods of indoor small-pitch LED display screens
There are many options for installing indoor small-pitch LED display screens. According to actual needs and application scenarios, users can choose the most suitable solution, mainly the following:
Hanging installation:
suitable for large venues, exhibitions, and places where space needs to be saved. The screen is suspended in the air through a steel frame or hanging device to avoid occupying ground space, which is suitable for screens with larger display areas.
Wall-mounted installation:
suitable for environments with small space or where the screen needs to be fixed on the wall, such as shopping malls, office buildings, and commercial display areas.
The wall-mounted installation method can save space and ensure the display effect without occupying the ground.
Frame installation:
suitable for large-scale spliced display screens, where multiple display screens need to be spliced into one. Frame installation can make the screen closely combined, adapt to a variety of shapes (such as straight or curved), and is often used in large-screen applications.
Embedded installation:
Embedded installation is a way to embed the LED display screen directly into the wall, ceiling or other building structure.
Suitable for modern offices, hotel lobbies, commercial displays and other environments. Embedded installation can perfectly integrate the display screen with the architectural environment, bringing a simple visual effect.
By reserving the installation position, the LED display can be embedded flatly to avoid the protruding screen affecting the beauty and streamline of the space.
Installation precautions
When installing indoor small-pitch LED displays, there are some key precautions that need special attention to ensure the normal operation and long-term use of the equipment:
Site assessment and size planning:
Before installation, the site should be fully evaluated to ensure that the size of the display is suitable for the site layout and meets the requirements of viewing distance and visual angle. Reasonably plan the screen installation location to ensure the best visual experience.
Power supply and line layout:
Power is the key to the normal operation of LED displays. Ensure that there is sufficient power supply at the installation location, and the power and signal lines are reasonably arranged to avoid interference and voltage instability.
Use high-quality cables and connectors to ensure stable signals and unaffected power supply.
Stability of the support structure:
Whether it is hanging, wall-mounted or column-mounted, the stability of the support frame is crucial. Especially when installing large screens, choose a suitable support frame and ensure its strength to avoid the risk of screen falling or deformation during long-term operation.
Heat dissipation and ventilation:
Small-pitch LED displays generate heat during operation, so a good heat dissipation system must be provided. Ensure good ventilation around the installation location of the equipment to avoid performance degradation or damage to the equipment due to overheating.
Space safety:
During installation, make sure there are no flammable or explosive items around, avoid exposed wires, and prevent static electricity from affecting the screen.
All wiring and power systems must comply with safety standards to avoid accidents such as fires caused by electrical failures.
Daily maintenance and troubleshooting
Daily maintenance of small-pitch LED displays is the key to ensuring their long-term stable operation. In order to extend the service life of the display and ensure the best display effect, users need to regularly perform the following maintenance tasks:
Cleaning and dust prevention:
The surface of the LED display is prone to dust and dirt accumulation, so it is necessary to regularly use a clean soft cloth or special cleaning tools to clean the screen.
Especially in dusty environments, more frequent cleaning is required to avoid dust accumulation affecting the display effect and heat dissipation.
Cooling system inspection:
The heat dissipation performance of small-pitch LED displays is very important. Regularly check components such as cooling fans and cooling holes to ensure the normal operation of the cooling system. Overheating may cause the display performance to deteriorate or even damage.
Check the power supply and circuit connection:
The power supply system is the core of the LED display. Regularly check the power cord, power board, and circuit connection to avoid screen failures caused by unstable voltage or poor contact.
For troubleshooting, the most common problems include black screen, color distortion, image flickering, etc. Here are some troubleshooting methods for common faults:
Black screen problem:
Usually due to power problems, connection problems, or module failures. Check whether the power supply is normal and the connection line is stable. If necessary, replace the power module or reconnect it.
Color distortion:
This is usually due to abnormal module display or abnormal signal input. Check the signal input port and related equipment to ensure that the signal source device is compatible with the LED display.
Image flickering:
Image flickering is usually caused by voltage fluctuations, signal interference or module damage. Check the power supply stability, troubleshoot the signal transmission line, and check whether each module is working properly.
Transportation and installation costs of small-pitch LED displays
Transportation and installation costs are usually important factors in customers’ LED display purchase decisions, especially for large-scale display projects (such as exhibitions, stages or shopping malls), these costs may have an impact on the overall budget.
The following is an analysis of the transportation and installation costs of small-pitch LED displays:
Transportation costs:
Due to its high precision and modular design, small-pitch LED displays require special attention to shock and moisture during transportation. Especially in the transportation of larger or customized screens, the transportation cost will be relatively high.
It is necessary to use professional transportation tools, such as aviation or professional freight companies, and ensure that the equipment is not damaged during transportation.This also requires stronger packaging materials, which increases transportation costs.
Installation costs:
Since small-pitch LED displays usually adopt a modular design, the installation process is relatively simple, but it still requires professionals to complete it. During the installation process, different installation methods (such as hanging, wall hanging, ground columns, etc.) will involve different support structures and auxiliary equipment, which also affects the cost of installation.
Especially for large-screen installations, the required steel frames, support structures and other equipment costs may be high.
Project cost:
In addition to direct transportation and installation costs, the installation of small-pitch LED displays usually requires more complex power wiring and signal transmission design.
For customized installations at specific sites, additional construction, ventilation and heat dissipation design and other auxiliary work may be required, which further increases the installation cost.
Summary
When choosing a small-pitch LED display, you don’t have to blindly pursue the smallest pixel pitch, nor do you need to blindly choose the most expensive screen. Not all scenarios require extreme pixel density, and overpriced devices may not be suitable for your needs.
The most important thing is to choose the right pixel pitch, display effect and budget range according to the specific application scenario to achieve the best cost-effectiveness.
It is crucial to choose the right supplier. A professional supplier can provide tailored solutions according to your needs. For example, UnifyLED can give reasonable suggestions based on different application scenarios (such as advertising, retail, exhibitions, etc.) to help you choose the right display type and configuration.
At the same time, through reasonable product matching, unnecessary high expenses can be avoided, allowing you to reduce unnecessary investment while meeting the expected results.
Therefore, there is no need to pay too much attention to the extremes of pixel pitch and price, but to look for cost-effective solutions. Contact UnifyLED now to get professional advice and solutions to provide the most valuable display technology for your project!
FAQs:
Answer: A small-pitch LED display refers to an LED display with a pixel pitch less than or equal to P2.5. It is characterized by providing high resolution, high definition and delicate display effects, and is suitable for places that require a high visual experience.
Answer: Choosing a suitable pixel pitch requires considering viewing distance and venue requirements. Generally, P2.5 and P1.8 are suitable for close-range venues such as shopping malls and exhibitions, while P3 and P4 are suitable for medium viewing distance venues such as commercial advertisements and conference rooms.
Answer: The brightness of indoor small-pitch LED displays is generally 400-1000 nits, and the specific choice depends on the lighting conditions of the use environment. Brighter places, such as exhibitions and shopping malls, may require high-brightness displays, while conference rooms require lower brightness.
Answer: The service life of small-pitch LED displays is usually more than 50,000 hours, which is longer and more stable than traditional LCD displays.
Answer: Small-pitch LED displays are more energy-efficient than traditional display devices (such as LCDs and projectors). Especially when used on large screens, LED displays can provide high brightness while maintaining low power consumption.
Answer: When choosing an LED display supplier, you should consider its technical support, product quality, after-sales service, and whether it provides customized solutions. Suppliers that provide modular design, reliable maintenance services, and long-term warranties are better choices.
Answer: Small-pitch LED displays provide higher brightness, resolution, and color performance, and do not have the splicing gaps of LCD screens, making them suitable for demanding display environments.
