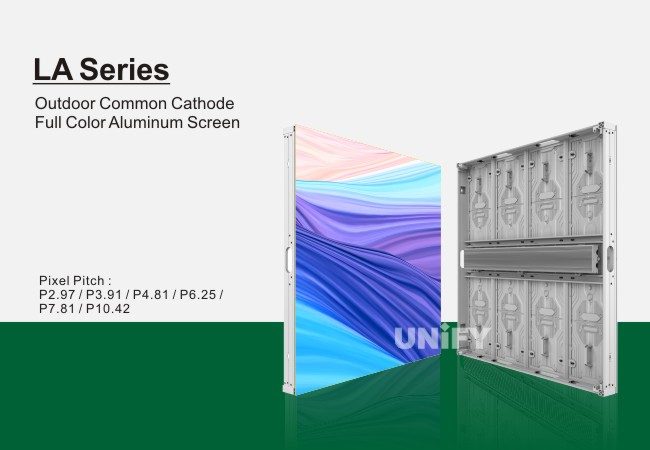

LED Advertising Billboard-LA Series
- Module size 320*160mm, 1m*1m large size panel
- Optimized structure, flexible installation
- Common cathode energy saving
- High protection, not afraid of harsh environment
LED Advertising Billboard-LA Series
Users can freely customize the panel size according to installation requirements to ensure the maximum advertising effect. In addition, users can choose between Aurora Black and Moon White to enhance the personalized display effect.

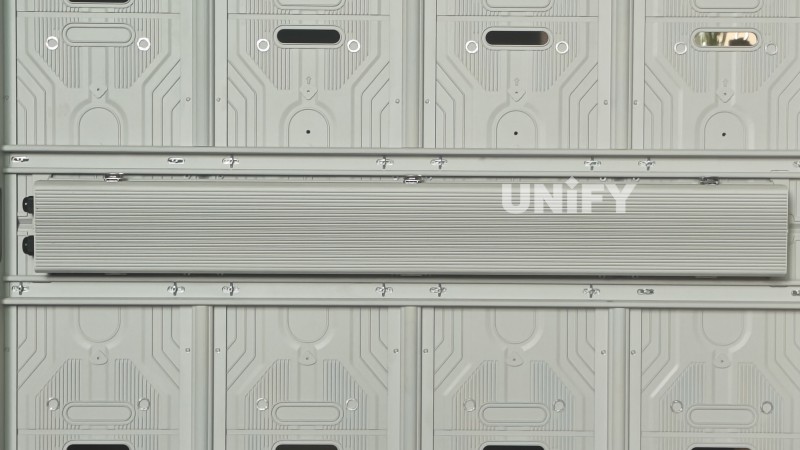

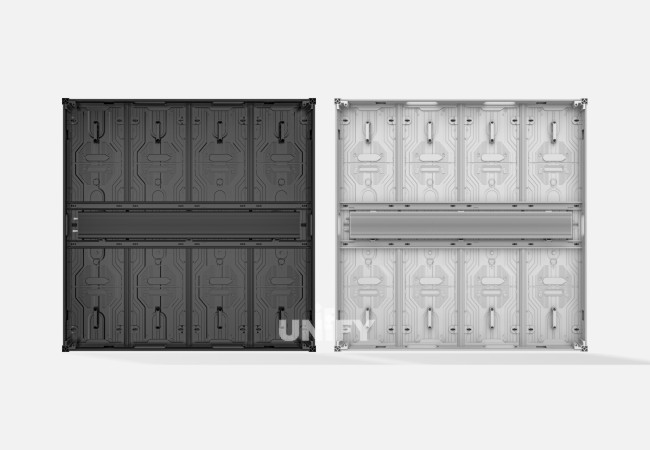

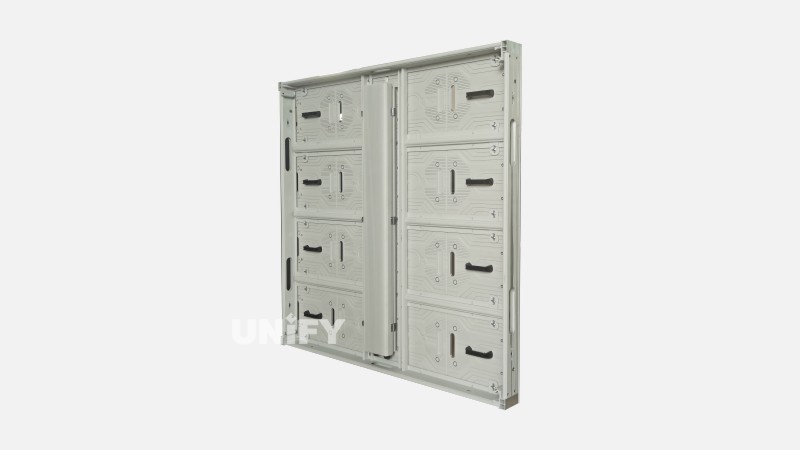

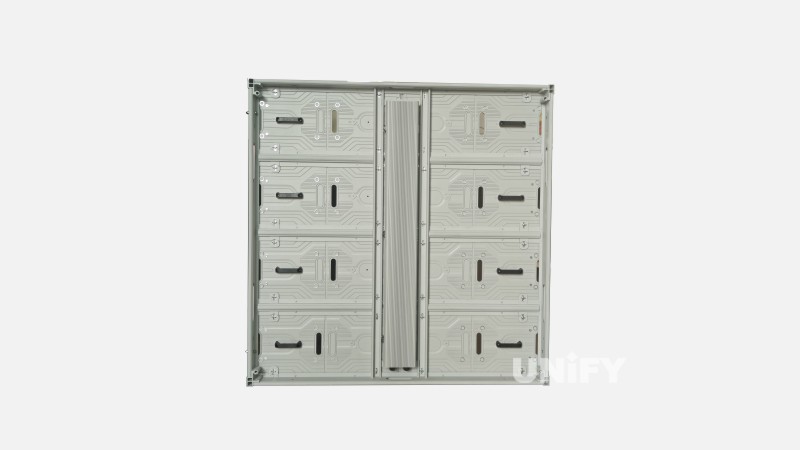

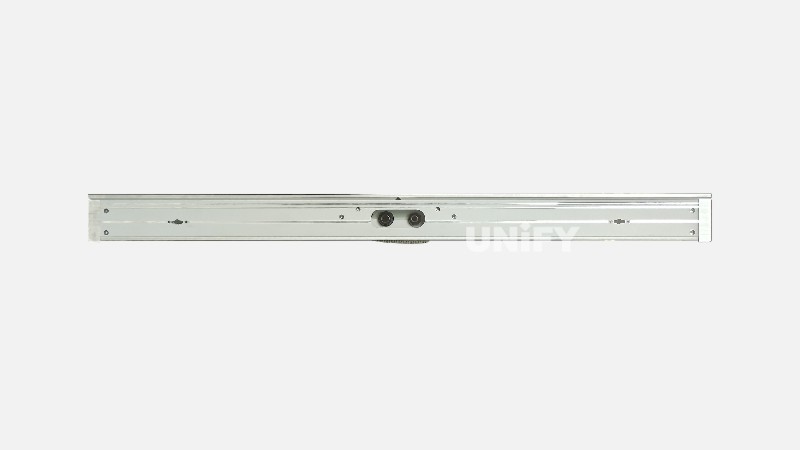

LED Advertising Billboard Cabinet

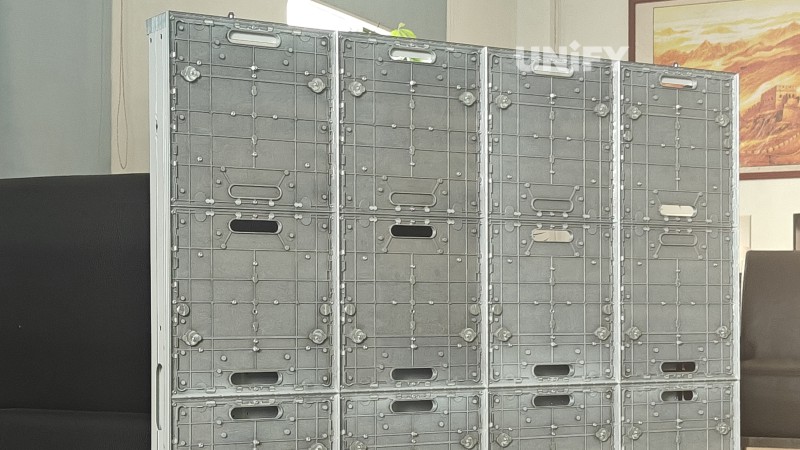

The LA series uses aluminum profiles to show excellent flatness and light design.
Compared with traditional iron boxes, its weight per square meter is 20% lighter, significantly reducing transportation costs.

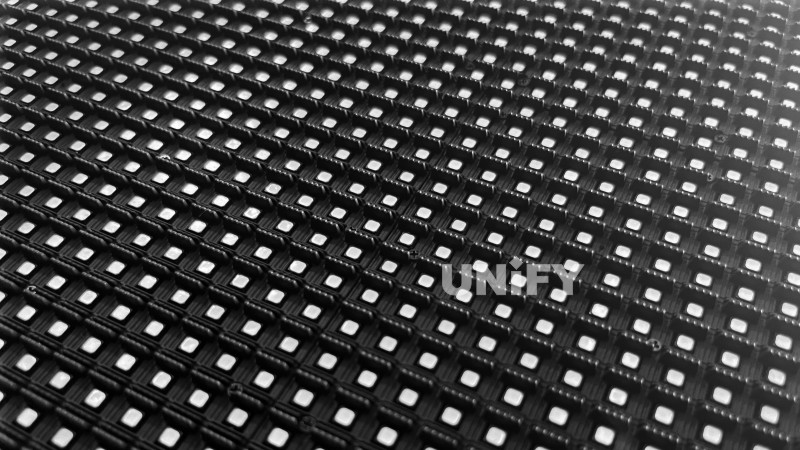

Outdoor LED Billboard Module

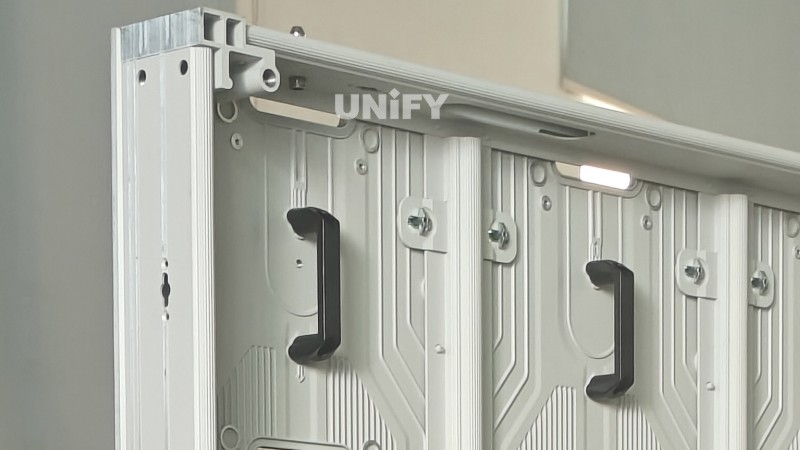

The thoughtfully designed small handle facilitates on-site installation and daily maintenance, greatly improving operational efficiency.
P2.976 - LED Advertising billboard
P3.91 - Outdoor LED billboard
P4.81- Advertising LED screen
P6.25 - LED Advertising billboard
P7.8 - Outdoor LED billboard
P10 LED Advertising billboard

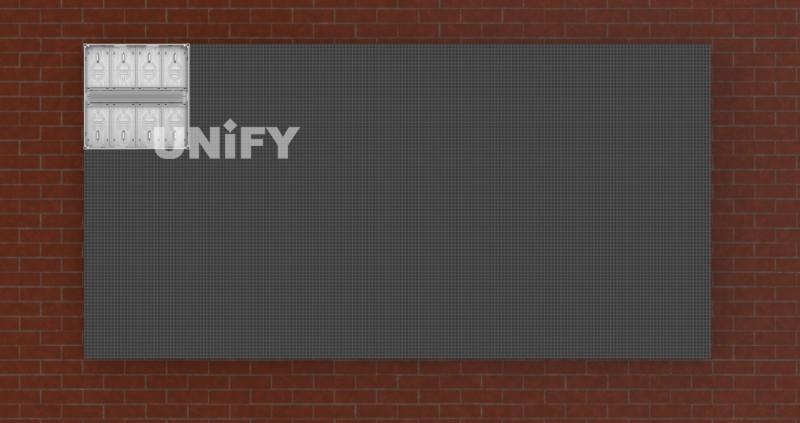

Dual Maintenance Ways
At the same time, it provides front and rear maintenance options and supports wall installation, further reducing the structural cost.

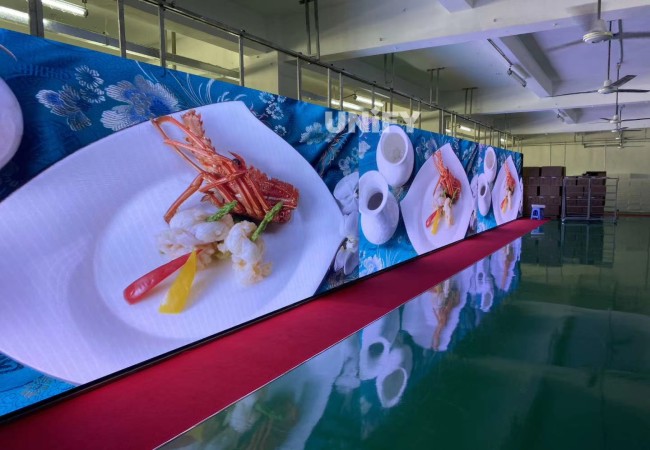

Excellent picture quality
The refresh rate is up to 7680Hz, 16-bit grayscale, high contrast, delicate and realistic pictures, uniform brightness and no glare. The red, green and blue three-in-one LED lamp beads provide good consistency.increasing the safety factor.
Green energy-saving LED billboard
The intelligent energy-saving system supplies power according to demand, automatically shuts down in no-load mode, and the black screen standby current is only 0.6mA, and the full-screen static power consumption is reduced to 0.5mA.
The split power supply further reduces the voltage drop and conduction impedance, ensuring high efficiency and low energy consumption, suitable for long-term outdoor use.
Multiple heat dissipation designs
No additional air conditioning is required, saving operation and maintenance costs and extending equipment life
Stable and high protection
With excellent flatness, fire resistance, and a wide operating range from -40°C to 80°C, it performs reliably in harsh coastal environments for all-weather outdoor use.
Naked-eye 3D
With professional content playback, it can easily achieve naked-eye 3D display to attract attention.
Image Gallery
LA Series LED A dvertising Billboard Details
Video Center
How to Use or Maintain?

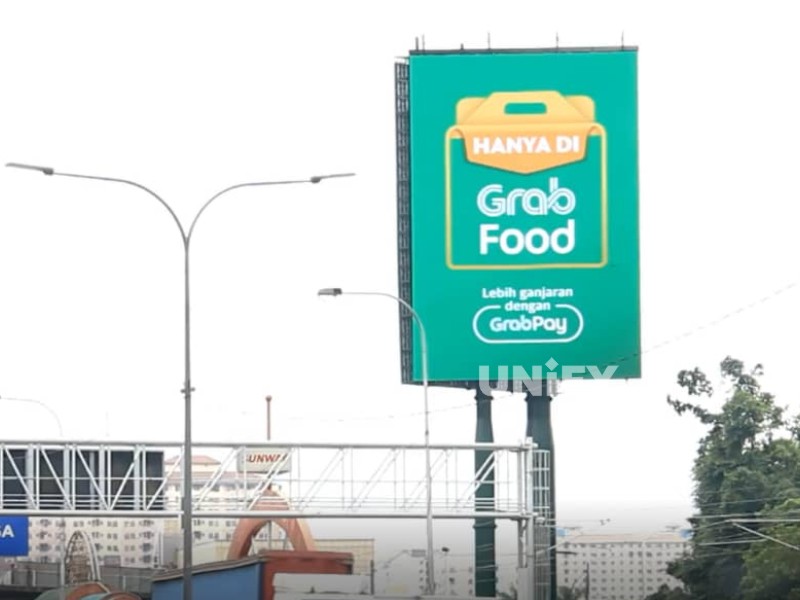

3.84×2.88m Outdoor double-pole LED display, Malaysia
130sqm Curved 3D naked-eye LED wall, Mexico
Case sharing of large-scale event hoisting and leasing LED display screens
10m×5m outdoor embedded LED video wall, Singapore
6*2.5m outdoor single-pole billboard, China
200-square-meter concert truss-mounted LED display, United States

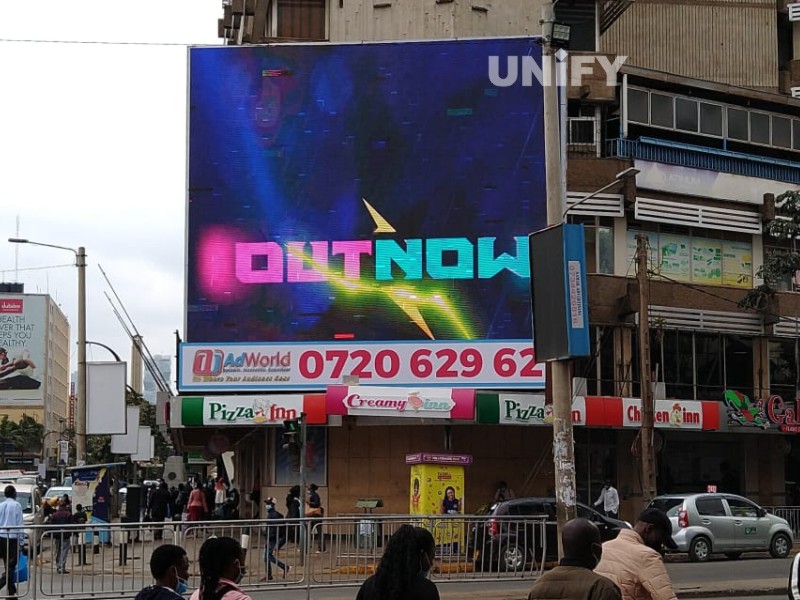

Case Gallery
Where does Outdoor LED Billboard Use in ?
Specification
Item | LA2.97 | LA3.91 | LA4.81 | LA6.25 | LA7.81 | LA10.42 |
Pixel Composition(SMD) | 1415 | 1921 | 1921 | 2727 | 2727 | 2727 |
Pixel Pitch(mm) | 2.97 | 3.91 | 4.81 | 6.25 | 7.81 | 10.42 |
Module Resolution(W×H) | 84×168 | 64×128 | 52×104 | 40×80 | 32×64 | 24×48 |
Module Size(mm) | 250×500×16 | |||||
Module Weight(kg) | 1.93 | |||||
Module Qty/Cabinet(W×H) | 4×2 | |||||
Cabinet Resolution(W×H) | 336×336 | 256×256 | 208×208 | 160×160 | 128×128 | 96×96 |
Cabinet Size(mm) | 1000×1000×78 | |||||
Cabinet Area(㎡) | 1 | |||||
Cabinet Weight(kg/cabinet) | 25 | |||||
Cabinet Material | Profile Cabinet | |||||
Cabinet Density（dot/m²） | 112,896 | 65,536 | 43,264 | 25,600 | 16,384 | 9,216 |
IP Rating | IP66 | |||||
White Balance Brightness(nits) | ≥5000 | ≥5500 | ≥5500 | ≥5500 | ≥5500 | ≥5500 |
Color Processor(bit) | 6 | |||||
Color Temperature(K) | 6500-9000 | |||||
Visual Angle(H/V) | 140°/ 120° | |||||
Luminous point centre deviation | ＜3% | |||||
Luminance uniformity | ≥97% | |||||
Chromaticity uniformity | Within ±0.003Cx, Cy | |||||
Contrast Ratio | 8000:1 | |||||
The Max Power Consumption(W/㎡) | 550 | 550 | 550 | 550 | 550 | 550 |
Average Power Consumption(W/㎡) | 186 | 186 | 186 | 186 | 186 | 186 |
Input Voltage | AC100~240V | |||||
Frequency(Hz) | 50&60 | |||||
IC Driving(s) | 1/14 | 1/8 | 1/7 | 1/5 | 1/4 | 1/2 |
Refreshing Ratio(Hz) | 3840/7680 | |||||
Maintenance Method | Front and Rear | |||||
Lifespan(hrs) | 100,000 | |||||
Work Temperature/Humidity | -40℃-80℃/10%RH-98%RH (Non Condensing) | |||||
Storage Temperature/Humidity | -20℃-60℃/10%RH-98%RH (Non Condensing) | |||||
Other LED Advertising Billboards
LED Advertising Billboard-LA Series
LED Advertising Billboard-LA Series Module size 320*160mm, 1m*1m large size panel Optimized structure, flexible installation Common cathode energy saving High
Sport LED Screen – SP Series
Stadium LED Display- SP Series Outdoor Sports Perimeter LED Display Board Pixel pitch P4/P5/P6/P8/P10 Standard Cabinet Size :1280*960mm 3840Hz high
Advertising LED Screen – B Series
Advertising LED Screen – B Series Module size 320*160mm, panel size 960*960mm Pixel pitch P4/P5/P6/P8/P10 Wide viewing angle Brightness options
Comprehensive Analysis of LED Advertising Billboard: Taking LA Series as an Example
What is LED Advertising Billboard?
LED Advertising Billboard, usually called LED advertising screen or LED digital billboard in Chinese, is a dynamic display device composed of LED light-emitting diode modules, mainly used to play commercial advertisements, brand promotion, public information and other contents in outdoor environments.
Unlike traditional static inkjet advertising, LED advertising screen has multiple functions such as replaceable pictures, dynamic display, remote control, and all-weather playback, which not only improves the efficiency of advertising communication, but also enhances the visual impact and user interactivity.
Difference from traditional billboards
Compared with traditional light box advertisements or paper inkjet advertisements, LED Advertising Billboard has obvious advantages in display mode, flexibility and communication effect:
Convenient content update: The playback content can be changed remotely at any time through the background system without manual picture change.
Better display effect: Support high-definition picture and high-brightness display, which can be clearly seen even in strong sunlight.
Stronger interactivity: Some LED screens support interaction with mobile phones, cameras and other devices to improve user participation.
Save long-term operation and maintenance costs: Although the initial investment is slightly higher, it can save printing, installation and other costs in the later stage.
Take LA Series as an example. It adopts full-color high-definition display technology and energy-saving modules to effectively reduce energy consumption while ensuring the display effect. It is particularly suitable for brand communication in high-density commercial areas.
Main components of LED advertising billboards
A complete LED Advertising Billboard usually consists of the following parts:
core light-emitting unit, responsible for the display of images. LA Series adopts die-cast aluminum modules with strong thermal conductivity and high stability.
Control system:
including sending card and receiving card, which are used to analyze the playback content and control the display logic.
Power supply system:
to supply power to the entire screen, LA series adopts a double-layer power supply structure to improve current stability.
Structural frame/box:
carries all components and has waterproof, dustproof, corrosion-resistant and other properties. LA series adopts an all-aluminum box, which is lightweight and has excellent weather resistance.
Cooling system:
to ensure that the equipment can still operate stably under high temperature or high load. LA Series can maintain low temperature operation by relying on natural heat dissipation without air conditioning.
How to choose the appropriate brightness and pixel pitch according to the installation environment
When choosing an LED Advertising Billboard, brightness and pixel pitch are key parameters that affect the display effect and cost, and must be reasonably matched according to the installation environment.
As a high-performance product for outdoor applications, LA Series has a variety of specifications and options, which can flexibly adapt to the needs of different scenarios.
Brightness selection basis: ambient light intensity
Brightness (unit: nits) determines the visibility of the screen in daytime and strong light environments:
Urban commercial areas/pedestrian streets: recommended brightness ≥5500 nits
Highways/high-altitude columns: recommended brightness ≥6500 nits to cope with strong direct sunlight
Areas with more nighttime environments: support automatic dimming to avoid excessive glare
LA Series is equipped with high-brightness LED lamp beads and supports automatic light sensing adjustment function. It can automatically adjust the brightness according to the ambient light to ensure clear and visible images all day long and energy-saving and environmentally friendly.
2. Pixel pitch selection basis: viewing distance and screen size
Pixel pitch refers to the distance between two adjacent pixels, which determines the clarity of the image and the best viewing distance:
Pixel pitch Recommended viewing distance Applicable scenarios
P2.5–P4 2.5–5 meters Store front, bus station
P4–P6 5–10 meters Commercial plaza, bus hub
P6–P10 10 meters and above Overpass, large plaza, highway
LA Series provides a variety of pixel pitch configurations from P4 to P10. Customers can flexibly choose according to the installation height, audience viewing distance and budget, which can not only ensure the display effect but also control the investment cost.
3. Typical configuration recommendation
Commercial block LED advertising screen: LA Series P4, brightness 6000 nits, moderate pixel density and high brightness display take into account both effect and cost.
Highway high pole screen: LA Series P10, brightness 7000 nits, suitable for long-distance recognition and all-weather outdoor environment.
Green energy saving: How LA Series achieves low-carbon display
As the concept of green sustainable development becomes increasingly popular, the energy consumption of LED Advertising Billboard is receiving more and more attention.
LA Series achieves low-carbon operation through a number of energy-saving technologies, which not only reduces operating costs but also improves environmental value.
Common cathode energy-saving technology, precise power supply is more efficient
LA Series adopts a common cathode power supply architecture, which is smarter in circuit design than the traditional common anode solution.
By independently powering the red, green and blue lamp beads, voltage and current are allocated on demand to avoid energy waste.
Test data shows that the common cathode circuit can reduce the screen temperature by an average of 14.6℃, reduce the overall power consumption by more than 20%, and greatly extend the life of electronic components.
2. Four-level energy-saving mechanism, on-demand start-stop circuit
LA Series internal chip is equipped with a four-level energy-saving mechanism, intelligently responding to display content status:
Dynamic energy saving: turn off part of the drive circuit when there is no signal
Black screen energy saving: the chip standby current drops to 0.6mA when the screen is completely black
Full screen standby energy saving: power consumption is further reduced under low-level maintenance state
Branch step-down power supply: reduce the voltage drop and internal resistance in the current path, and improve the utilization rate of electric energy
This system can continuously reduce operating energy consumption without affecting the display effect.
No need for air conditioning heat dissipation, structural heat dissipation design is more energy-saving
Thanks to the all-aluminum die-casting module and double-layer power supply layout, LA Series achieves natural heat dissipation without additional air conditioning or fan assistance, saving more power resources, while improving equipment stability and reliability.
Intelligent brightness adjustment, more intelligent environmental adaptation
After being equipped with a light sensor, LA Series can automatically adjust the screen brightness according to the ambient brightness, automatically reduce power at night, reduce light pollution, and save electricity.
LED Advertising Billboard LA Series application scenarios
As a high-performance LED Advertising Billboard designed for outdoor environments, LA Series is widely used in a variety of places with its strong environmental adaptability, energy-saving technology and high-definition display effects.
Whether it is a city landmark, a transportation hub, or a large-scale event site, LA Series can become the core carrier of visual communication.
City landmarks and commercial blocks
In bustling cities, LED advertising screens have long become part of the urban landscape. LA Series supports 90° seamless corner splicing, which can create a naked-eye 3D LED stereo advertising wall to attract pedestrians to stop and watch, effectively improving the advertising communication rate.
High brightness, waterproof and corrosion-resistant design, so that it can operate stably all day in landmark areas such as pedestrian streets and shopping mall facades, is an ideal choice for creating smart city digital billboards.

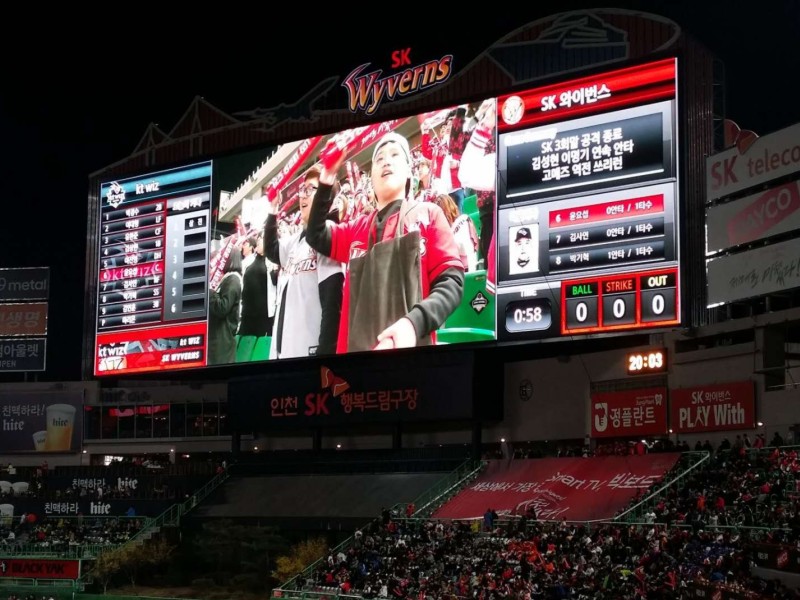

Stadiums and concerts
At large-scale events and concerts, it is crucial to synchronize high-definition dynamic display with the on-site atmosphere.
The LED outdoor advertising large screen LA Series has a high refresh rate, high contrast and ultra-large viewing angle, ensuring that the audience can clearly watch the promotional content, sponsor advertisements or live events without blind spots.
The modular design facilitates quick assembly and disassembly, and is suitable for temporary large-scale event venues.
Highways and transportation hubs
Facing complex and changing traffic environments, LED Advertising Billboards require extremely high stability and visual distance. LA Series uses high-brightness full-color modules, which are clearly visible even in strong sunlight or rainy and foggy weather.
It is suitable for high-traffic places such as both sides of highways, viaducts, airports, and stations to play public welfare information, traffic guidance or commercial advertisements.
With the intelligent control system, remote timed playback and content switching can be achieved, greatly improving advertising operation efficiency.
LED Advertising Billboard Price Analysis
When purchasing LED Advertising Billboard, price is undoubtedly one of the most concerned issues for enterprises and advertisers.
The cost of LED outdoor display screens of different models, specifications and configurations varies significantly. The following are several key factors affecting the price of LA Series and other digital billboards:
Pixel pitch and resolution
The smaller the pixel pitch, the more lamp beads per unit area of the screen, the clearer the display, and the higher the price. For example, LA Series offers multiple specifications from P4 to P10.
The price of P4 screen is significantly higher than P10, which is suitable for close-range places with high requirements for picture quality.
Screen size and customization requirements
The price of LED advertising screens is usually calculated on a “per square meter” basis. The larger the area, the higher the total price. If it involves corner splicing, special-shaped customization or integrated structure installation, the cost will also increase.
Protection level and cooling system
For special environments such as the seaside, high temperature, and high humidity, it is recommended to choose the LA Series outdoor LED screen with IP66 protection level and aluminum cabinet design.
The price of this type of high-performance outdoor LED advertising screen is slightly higher than that of ordinary models, but the stability and service life are better.
Control system and intelligent functions
Whether it supports remote control, intelligent brightness adjustment, multimedia content management system, etc. will also affect the price of LED digital billboards.
LA Series supports the integration of multiple intelligent modules and is suitable for large-scale advertising network deployment that requires centralized control.
Installation and after-sales service
Some suppliers will include installation, transportation, commissioning and other costs in the overall quotation, especially for overseas projects.
It is recommended to clarify whether it is a **”tax-included and transportation-included” LED advertising screen quotation** when purchasing to avoid budget out of control later.
How much is an outdoor LED advertising screen per square meter?
Taking LA Series as an example, the price of conventional configurations (such as P6, IP65, 6000nits) is roughly $700–$1000 per square meter (tax-exclusive/tax-included depends on the service provider).
The specific quotation needs to be comprehensively evaluated based on the project size, environmental requirements and customization needs.
If you need to obtain a quote for the exclusive LA Series display or develop a detailed procurement plan, it is recommended to contact the LED display manufacturer to ensure both quality and service.
